Quick Details
-
Dimension(L*W*H):
-
138*103*163cm
-
Weight (KG):
-
400
-
Power (kW):
-
2.0kw
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
138*103*163cm
-
Weight (KG):
-
400
-
Power (kW):
-
2.0kw
Products Description

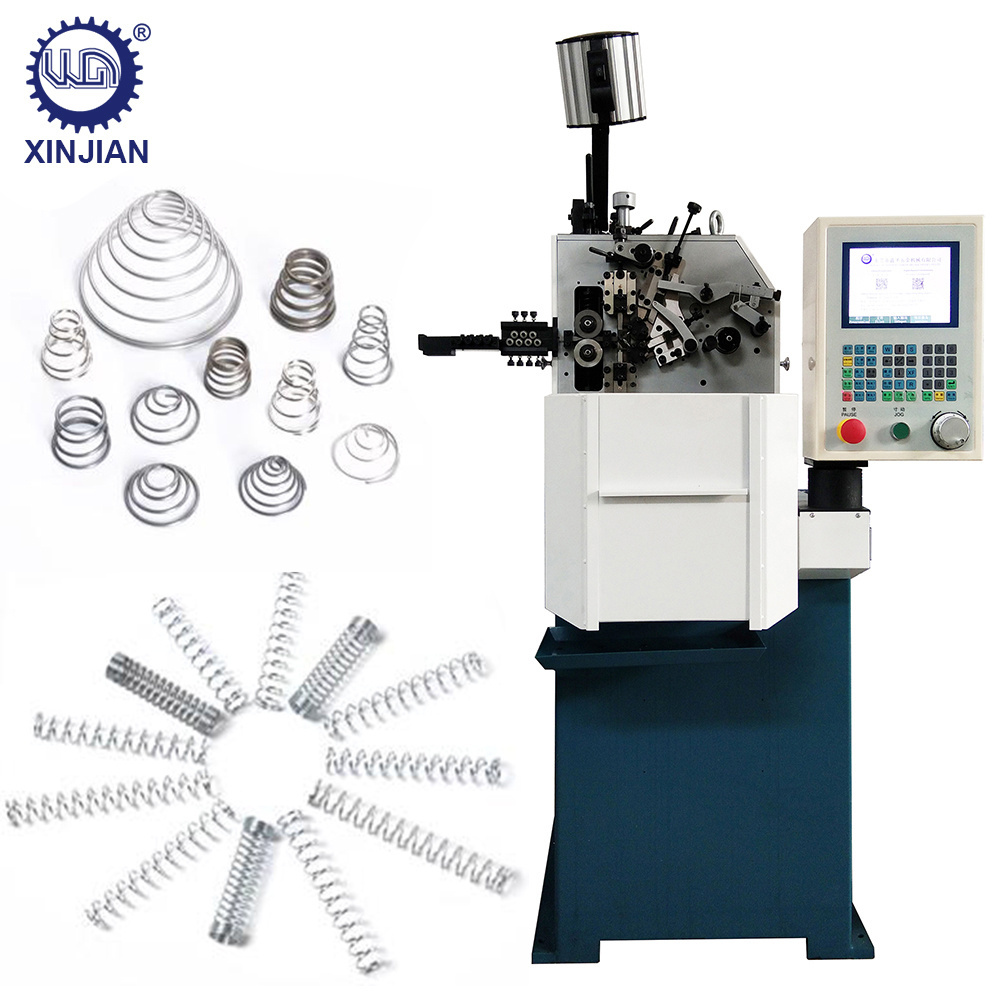

CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.
|
Model
|
GT-CS-208
|
GT-CS-508
|
GT-CS-320
|
GT-CS-330
|
GT-CS-335
|
GT-CS-550
|
GT-CS-580
|
|
Wire diameter（mm）
|
0.2-1.0
|
0.2-1.0
|
0.5-2.0
|
0.8-3.0
|
0.8-3.5
|
2.0-5.0
|
3.0-8.0
|
|
Max. outer dia.
|
20mm
|
20mm
|
50mm
|
50mm
|
50mm
|
60mm
|
50mm
|
|
Axis
|
2
|
5
|
3
|
3
|
3
|
5
|
5
|
|
Wire feed speed
|
0-100M/min
|
0-100M/min
|
0-110M/min
|
0-120M/min
|
0-120M/min
|
0-120M/min
|
0-120M/min
|
|
Wire feed Servo Motor
|
1.0kw
|
1.0kw
|
1.8kw
|
4.5kw
|
5.5kw
|
15.0kw
|
30.0kw
|
|
Cam Servo motor
|
1.0kw
|
1.0kw
|
2.7kw
|
4.5kw
|
5.5kw
|
4.5kw
|
7.0kw
|
|
Pitch(Quill)motor
|
/
|
0.75kw
|
/
|
1.0kw
|
1.0kw
|
2.7kw
|
2.7kw
|
|
Top cut motor
|
/
|
1.0kw
|
1.3 kw
|
/
|
/
|
4.5kw
|
7.0kw
|
|
Bottom cut motor
|
/
|
1.0kw
|
/
|
/
|
/
|
4.5kw
|
7.0kw
|
|
Packing Size(L*W*H)
|
139X103X163
cm
|
139X103X163
cm
|
149x103x170
cm
|
150x103x170
cm
|
150x103x170
cm
|
150x130x190
cm
|
220x170*240
cm
|
|
Weigh
|
400.0KG
|
500.0KG
|
800.0KG
|
900.0KG
|
1000.0KG
|
1800.0kg
|
2500.0kg
|
CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and high quality controlling system. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.
