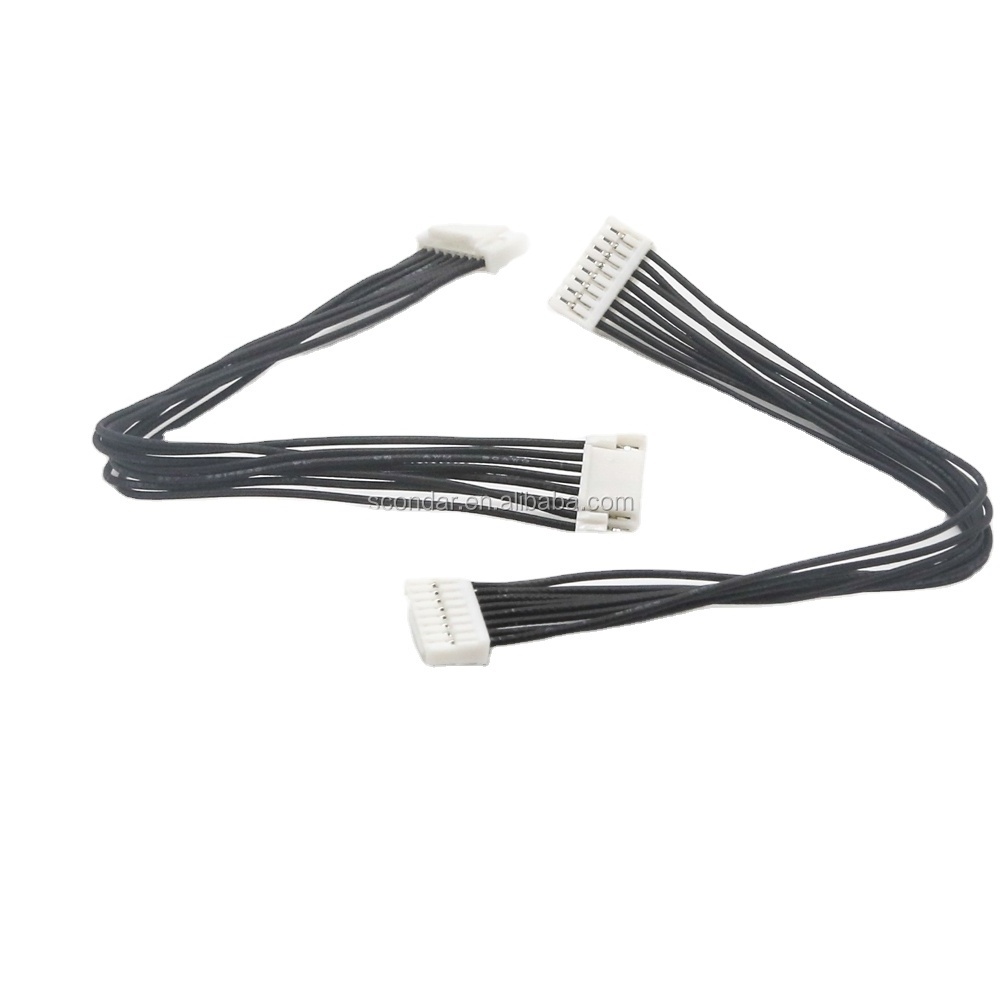

Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S
Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S

Custom Jst Pitch 1.25mm Cable Assembly PCB Wire to Board Connector Jst GH Connector Wire Harness GHR-02V-S GHR-03V-S GHR-04V-S

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.01
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SCT1258
Housing material:
Nylon66
Terminal material:
Phosphor bronze
Colors:
Any colors are available
OEM/ODM:
Drawing/ pictures/samples as required
Certificate:
ROHS,ISO9001, CE
Mated Height:
Customizable
Product name:
Custom Wire Harness Cable Assembly
Connector:
Equivalent
Service:
OEM ODM Accept

Quick Details

Application:
Home Appliance
Place of Origin:
Guangdong, China
Brand Name:
SCONDAR
Model Number:
SCT1258
Housing material:
Nylon66
Terminal material:
Phosphor bronze
Colors:
Any colors are available
OEM/ODM:
Drawing/ pictures/samples as required
Certificate:
ROHS,ISO9001, CE
Mated Height:
Customizable
Product name:
Custom Wire Harness Cable Assembly
Connector:
Equivalent
Service:
OEM ODM Accept
Product Description

SCT1258 Series

SCT1258 Series are replace of JST GH connector. 1.25mm pitch, wire to board crimp terminal style with low contact resistance.

Compatible: JST GH Series Connector

Pitch: 1.25mm

Poles: 2-15P

Current rating: 1A (AWG#26- #30)

Items
Specifications
Part Number:
SCT1258
Compatible:
JST GH series connector
Pitch - Mating Interface:
1.25mm
Circuits:
2-15P
Applicable wire:
AWG#26-#30 (Max.OD: 0.8mm)
Current Rating:
1A
Voltage Rating:
50V
Temperature Range:
-25°C~+85°C
Contact Resistance:
30M Omega Max
Insulation Resistance:
100M Omega Min
Withstanding Voltage:
500V AC/minute
Wire & Cable Assemblies:
Customized
Drawing & Datasheet
Terminal

SCONDAR
JST GH
SCT1258TPS101
SSHL-002T-P0.2
Housing

SCONDAR
JST GH
SCT1258H-02BWT105
GHR-02V-S
SCT1258H-03BWT105
GHR-03V-S
SCT1258H-04BWT105
GHR-04V-S
SCT1258H-05BWT105
GHR-05V-S
SCT1258H-06BWT105
GHR-06V-S
SCT1258H-07BWT105
GHR-07V-S
SCT1258H-08BWT105
GHR-08V-S
SCT1258H-09BWT105
GHR-09V-S
SCT1258H-10BWT105
GHR-10V-S
SCT1258H-11BWT105
GHR-11V-S
SCT1258H-12BWT105
GHR-12V-S
SCT1258H-13BWT105
GHR-13V-S
SCT1258H-14BWT105
GHR-14V-S
SCT1258H-15BWT105
GHR-15V-S
SMD Vertical Header

SCONDAR
JST GH
SCT1258WVS-02E1BE101
BM02B-GHS-TBT
SCT1258WVS-03E1BE101
BM03B-GHS-TBT
SCT1258WVS-04E1BE101
BM04B-GHS-TBT
SCT1258WVS-05E1BE101
BM05B-GHS-TBT
SCT1258WVS-06E1BE101
BM06B-GHS-TBT
SCT1258WVS-07E1BE101
BM07B-GHS-TBT
SCT1258WVS-08E1BE101
BM08B-GHS-TBT
SCT1258WVS-09E1BE101
BM09B-GHS-TBT
SCT1258WVS-10E1BE101
BM10B-GHS-TBT
SCT1258WVS-11E1BE101
BM11B-GHS-TBT
SCT1258WVS-12E1BE101
BM12B-GHS-TBT
SCT1258WVS-13E1BE101
BM13B-GHS-TBT
SCT1258WVS-14E1BE101
BM14B-GHS-TBT
SCT1258WVS-15E1BE101
BM15B-GHS-TBT
SMD Right-Angle Header

SCONDAR
JST GH
SCT1258WRS-02E1BE101
SM02B-GHS-TB
SCT1258WRS-03E1BE101
SM03B-GHS-TB
SCT1258WRS-04E1BE101
SM04B-GHS-TB
SCT1258WRS-05E1BE101
SM05B-GHS-TB
SCT1258WRS-06E1BE101
SM06B-GHS-TB
SCT1258WRS-07E1BE101
SM07B-GHS-TB
SCT1258WRS-08E1BE101
SM08B-GHS-TB
SCT1258WRS-09E1BE101
SM09B-GHS-TB
SCT1258WRS-10E1BE101
SM10B-GHS-TB
SCT1258WRS-11E1BE101
SM11B-GHS-TB
SCT1258WRS-12E1BE101
SM12B-GHS-TB
SCT1258WRS-13E1BE101
SM13B-GHS-TB
SCT1258WRS-14E1BE101
SM14B-GHS-TB
SCT1258WRS-15E1BE101
SM15B-GHS-TB
Why Choose Us

Over 16 years experience on manufacturing connectors, cable assemble, Scondar commit to offer high quality products & service.

We take care for quality from initial production step,under close cooperation of quality management, technical purchasing and suppliers

Our factory with ISO 9001:2015 certificate, and all product with RoHS compliant, meet different markets request, such as UL,CE certificate.

SCONDAR as China based connectors supplier, So we have lower stand-by cost & management cost than many companies.

Our production management & stock management gives us control over your order and we take pride in our delivery to you in time.

Free samples are always available for your quality evaluation, So you can save more and increase your profit without worry about quality.

About Scondar

ABOUT SCONDAR Electronic Co., Ltd.

Scondar is China-Based manufacturer, providing connectors and wire harness,cable assembly for many years.Our factory have full ISO 9001:2005 certification.

Our connectors are compatible to JST,Molex,Dupont,Hirose,JAE and more with well performance even in hard situation. The housing,crimp terminal and socket are mated well & reliable.

Injection machines

Terminal and pin machinese

Stamping machines

Inserting and SMD

Terminal crimping workshop

Wire harness assembly

Connection inspection machine

Terminal inspection machine

Warehouse

Customer
Our Certifications
Packing & Delivery

Packing Details : Housing packed in bag, 1000pcs/bag, SMT type connector packed in reel.
Delivery Details : lead time 5-7 days
Shipping methods: DHL, EMS, UPS, TNT, FEDEX, SF.

FAQ

Q: Are you trading company or manufacturer?

A:  We are factory with over 10 years experience in connector industrial.

Q: Delivery time?

A: Generally 5-7 days for standard products within quantity of 10,000 pcs.

Q: Do you provide samples? is it free or charged

A: Free samples are always available for testing or quality evaluation purpose.

Q: What is your terms of payment?

A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.

Q:  How to ship the order? Is it Safe?

A: For small package, we will send it by express, such as DHL, FEDEX, UPS, TNT, EMS, which are door to door service.

Q: Is small order less than 100pcs accepted?

A: Yes, please contact with us, we will send you link for small order.

Q: What is your working time?

A: 9AM to 6PM from Monday to Saturday.

Our sales person will check email or Alibaba message time by time even we are not in working time. Always welcome to contact with us. Looking forward to happy conversation with you!
