Quick Details
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
500*250
-
Year:
-
NEW DATE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Voltage:
-
380v/optional
-
Dimension(L*W*H):
-
1700*1300*1800
-
Weight (KG):
-
950
-
Power (kW):
-
2
-
Unit:
-
MY250
-
Worktable size (L * W):
-
500*250mm
-
Max Table Travel:
-
550mm
-
Max Grinding Size(W*L*H):
-
280*560*350mm
-
T Slot(Number*width):
-
1*14mm
-
Max Table Load:
-
100kg
-
Spindle motor:
-
1.5kw
-
Pressure of work:
-
3mpa
-
Lubricating oil tank capacity:
-
70L
-
Grinding Wheel(OD*W*ID):
-
200*20*31.75
Quick Details
-
Grinding Length(mm):
-
550
-
Table Travel (X) (mm):
-
550
-
Table Travel (Y) (mm):
-
280
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
500*250
-
Year:
-
NEW DATE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Voltage:
-
380v/optional
-
Dimension(L*W*H):
-
1700*1300*1800
-
Weight (KG):
-
950
-
Power (kW):
-
2
-
Unit:
-
MY250
-
Worktable size (L * W):
-
500*250mm
-
Max Table Travel:
-
550mm
-
Max Grinding Size(W*L*H):
-
280*560*350mm
-
T Slot(Number*width):
-
1*14mm
-
Max Table Load:
-
100kg
-
Spindle motor:
-
1.5kw
-
Pressure of work:
-
3mpa
-
Lubricating oil tank capacity:
-
70L
-
Grinding Wheel(OD*W*ID):
-
200*20*31.75
Products Description
Product Paramenters
Function
Surface grinding machine is a kind of grinding machine.The main grinding wheel is used to rotate and grind the workpiece to achieve the required flatness. According to the shape of the worktable, it can be divided into two kinds: rectangular worktable and circular worktable. The main parameters of the surface grinding machine of the rectangular worktable are the width and length of the worktable, and the main parameters of the circular worktable are the diameter of the worktable.According to the different types of shaft can be divided into horizontal shaft and vertical shaft grinding machine.
|
Specifications
|
Parameters
|
|
Unit
|
MY618
|
MY250
|
|
|
Worktable |
Working Surface of Table
|
|
mm
|
460*180
|
500*250
|
|
|
|
Max Table Travel
|
|
mm
|
500
|
550
|
|
|
|
Max Grinding Size（W*L*H）
|
|
mm
|
200*480*280
|
280*560*350
|
|
|
|
T Slot(Number*width)
|
|
mm
|
1*14
|
1*14
|
|
|
|
Max Table Load
|
|
kg
|
80
|
100
|
|
|
Grinding head
|
Distance Between Table Surface and Grinding Wheel Shaft Center
|
|
mm
|
360
|
420
|
|
|
|
Vertical feed Handwheel
|
1 grad
|
mm
|
0.01
|
0.01
|
|
|
|
|
1 rev
|
|
4.0
|
4.0
|
|
|
|
Cross feed Handwheel
|
1 grad
|
mm
|
0.02
|
0.02
|
|
|
|
|
1 rev
|
|
4.0
|
5.0
|
|
|
|
Feed per time（max）
|
|
mm
|
/
|
0.07
|
|
|
|
Feed per time（min）
|
|
mm
|
/
|
0.01
|
|
|
Hydraulic system
|
Spindle motor
|
|
kw
|
1.5
|
1.5
|
|
|
|
Pressure of work
|
|
mpa
|
3
|
3
|
|
|
|
Lubricating oil tank capacity
|
|
L
|
60
|
70
|
|
|
Work precision
|
Grinding Wheel（OD*W*ID）
|
|
mm
|
Φ180*13*Φ31.75
|
Φ200*20*Φ31.75
|
|
|
|
Spindle Speed
|
50HZ
|
rpm
|
2850
|
2850
|
|
|
|
Parallelism of the machined surface to the base surface
|
|
mm
|
300:0.005
|
300:0.005
|
|
|
|
Surface roughness
|
|
um
|
Ra0.63
|
Ra0.63
|
|
|
Motor
|
Grinding head motor
|
|
kw
|
1.1
|
1.5
|
|
|
|
Machine main motor
|
|
kw
|
1.14
|
2
|
|
|
Machine size
|
Net Weight
|
|
kg
|
750
|
950
|
|
|
|
Gross Weight
|
|
kg
|
850
|
1000
|
|
|
|
Dimension（L*W*H）
|
|
mm
|
1680*1150*1700
|
1700*1300*1800
|
|

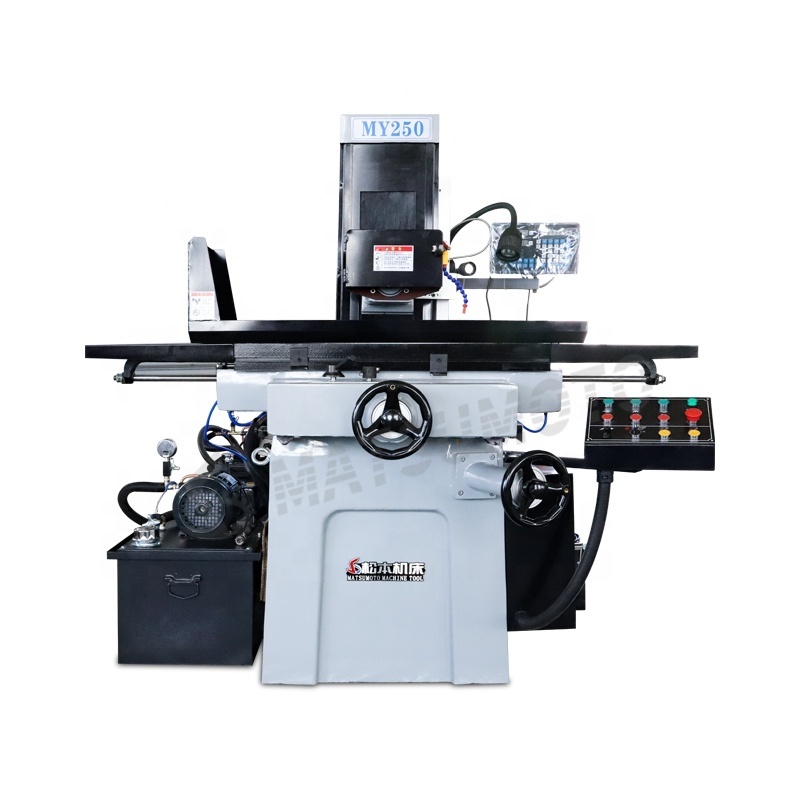

Details Images
