Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1020*425*525MM
-
Weight:
-
30KGS
-
PLC Brand:
-
.
-
Brand:
-
Hualian
-
Certification:
-
CE,ISO9001
Quick Details
-
Type:
-
Paper Folding Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1020*425*525MM
-
Weight:
-
30KGS
-
PLC Brand:
-
.
-
Brand:
-
Hualian
-
Certification:
-
CE,ISO9001
Product Description
Description:

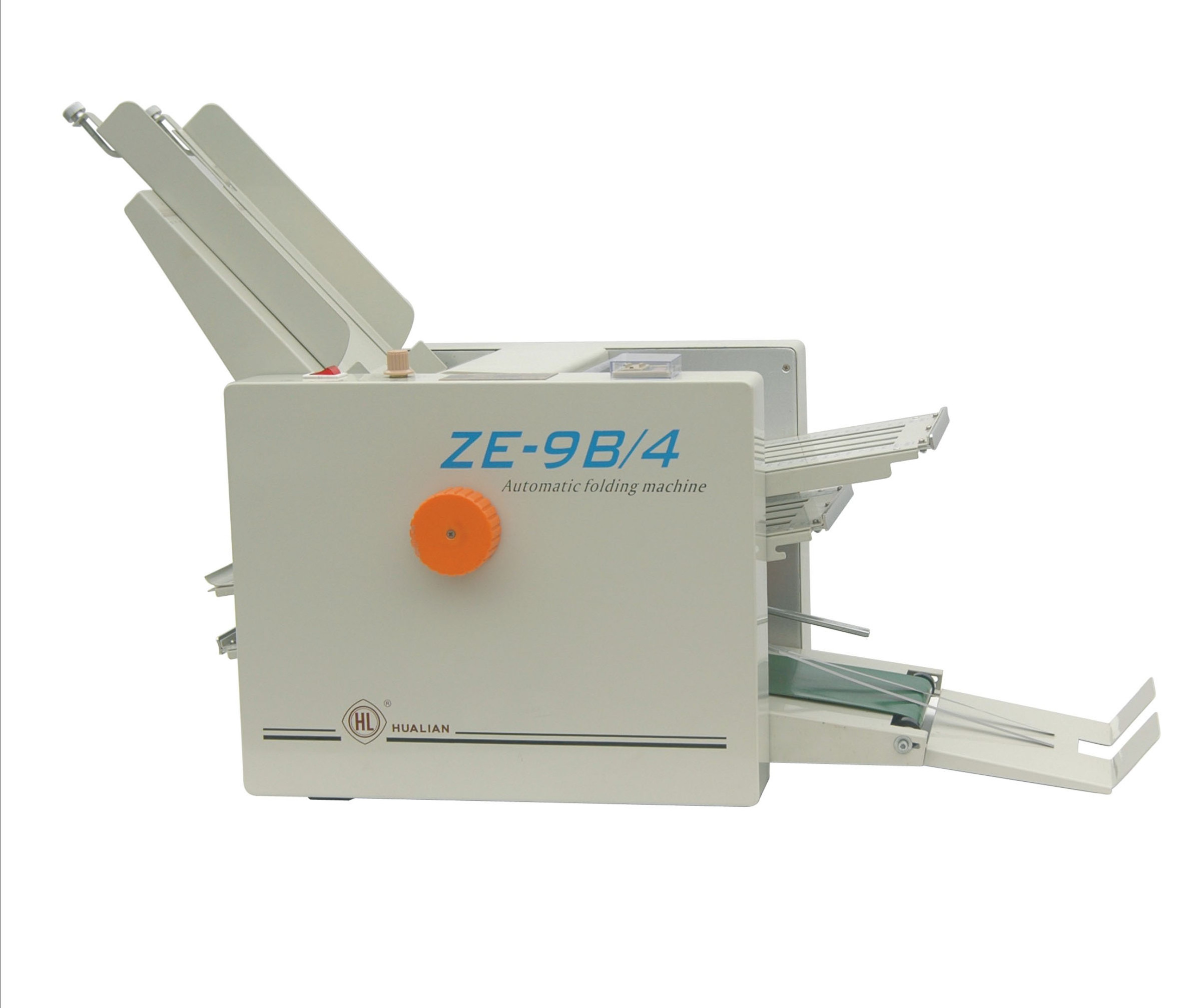

ZE series automatic paper folding machine is in novel design and very precise to fold paper in different size and thickness.
Features:
This machine is characterized by easy operation, smooth feeding, stepless speed regulation, compactness and efficiency.
Application:
ZE series automatic paper folding machine is widely applied in fast printing center, manufacturing enterprise, or be used to fold
official documents and business Letter, etc.
ZE series automatic paper folding machine is in novel design and very precise to fold paper in different size and thickness.
Features:
This machine is characterized by easy operation, smooth feeding, stepless speed regulation, compactness and efficiency.
Application:
ZE series automatic paper folding machine is widely applied in fast printing center, manufacturing enterprise, or be used to fold
official documents and business Letter, etc.
Details Images
Product Paramenters
|
|
ZE-8
|
ZE-8B/4
|
ZE-9
|
ZE-9B/4
|
|||
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
|
|
|||
|
Power (W)
|
70
|
|
|
|
|||
|
Folding Tray Number
|
2
|
4
|
2
|
4
|
|||
|
Max. Paper Size (mm)
|
310×700
|
|
210×420
|
210×620
|
|||
|
Min. Paper Size (mm)
|
50 ×70
|
|
|
|
|||
|
Max. Paper Thickness(g)
|
125
|
|
|
|
|||
|
Min. Paper Thickness (g)
|
40
|
|
|
|
|||
|
Max. Speed (m/min)
|
80
|
|
|
|
|||
|
External Dimensions(L×W×H) (mm)
|
1050×525×505
|
1080×530×580
|
1020×425×525
|
1020×430×580
|
|||
|
Net Weight (kg)
|
35
|
48
|
30
|
43.5
|
|||
Product packaging
|
Model
|
Pcs/CTN
(pc)
|
Package
Type
|
Gr. Wt.
(kg)
|
Net. Wt.
(kg)
|
Length(cm)
|
Width(cm)
|
height(cm)
|
Volume each set (cbm)
|
|
ZE-8B/2
|
1
|
CTN
|
39
|
35
|
61
|
53
|
54
|
0.175
|
|
ZE-9
|
1
|
CTN
|
35
|
32
|
55
|
51
|
54
|
0.151
|
|
ZE-8B/4
|
1
|
CTN
|
53
|
48
|
64
|
56
|
64
|
0.229
|
|
ZE-9B/4
|
1
|
CTN
|
43
|
38
|
55
|
55
|
63
|
0.191
|
