Quick Details
-
Weight:
-
5900 kg
-
Dimension(L*W*H):
-
5300*1970*2635MM
-
Product Name:
-
Solar Screw Pile Machine
-
Application:
-
Solar project,foundation
-
Pile shape:
-
C shape,H shape,U shape,S shape,O shape
-
Pile length:
-
3.7M Max
-
Screw bore diameter:
-
400mm
-
Screw bore depth:
-
30m
-
Dth bore diameter:
-
400mm
-
Dth bore depth:
-
100m
-
Climb ability:
-
35°
-
Engine Type:
-
Diesel Engine
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longye
-
Weight:
-
5900 kg
-
Dimension(L*W*H):
-
5300*1970*2635MM
-
Product Name:
-
Solar Screw Pile Machine
-
Application:
-
Solar project,foundation
-
Pile shape:
-
C shape,H shape,U shape,S shape,O shape
-
Pile length:
-
3.7M Max
-
Screw bore diameter:
-
400mm
-
Screw bore depth:
-
30m
-
Dth bore diameter:
-
400mm
-
Dth bore depth:
-
100m
-
Climb ability:
-
35°
-
Engine Type:
-
Diesel Engine
Solar Screw Pile Machine Small Helical Pile Installation Equipment In Ground Pile Anchor

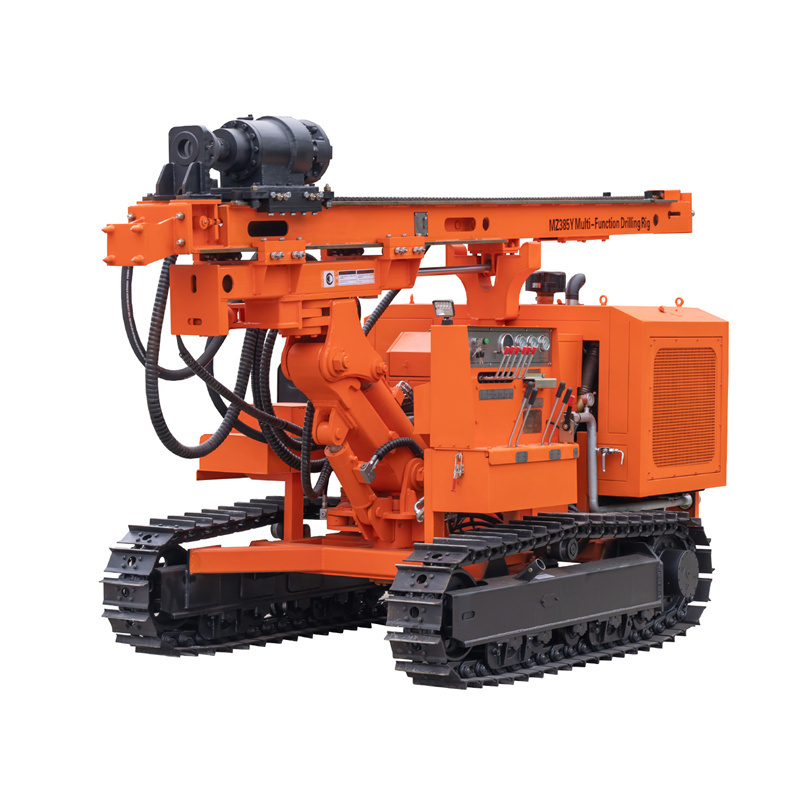

MZ385Y-2 hydraulic crawler drilling rig, uses new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection. The drilling machine structure is compact, and the mast has adjustable compensation function. When drilling, the mast supported on the ground, borehole stability is good.
MZ385Y-2 drilling rig is mainly used for piling, anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Technical parameters
|
Bore diameter(mm) |
90-400 |
|
Bore depth(m) |
0-100 |
|
Air consumption(m³/min) |
10-26 |
|
Air pressure(Mpa) |
0.7-1.6(medium pressure) |
|
1.6-2.46(high pressure) |
|
|
Pipe diameter(mm) |
76/89/102 |
|
For rock(F) |
6-20 |
|
Bore diameter(screw)(mm) |
Max 400 |
|
Bore depth(m) |
0-30 |
|
Screw pipe diameter(mm) |
130-400 |
|
Once promotion(mm) |
3200 |
|
Skid pitch(°) |
120 |
|
Swinging angle of skid(°) |
Left Right Total 40 |
|
Boom swing angle(°) |
Left Right Total 45 |
|
Rotation Speed(r/min) |
0-110 |
|
Host Power (Kw) |
84 |
|
Climb ability(°) |
35 |
|
Dimension(L*W*H)(mm) |
5300*1970*2635 |
|
weight(Kg) |
5900 |
|
Walk speed(km/h) |
0-2.5 |
Solar Screw Pile Machine Small Helical Pile Installation Equipment In Ground Pile Anchor can be used for ramming piles in solar farm, also in ground screw drilling,anchoring, water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions .
Shandong Longye Machinary Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment. On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
| solar pile driver >> | blasting drilling rig >> | water well drilling rig>> | anchor drilling rig >> |
| portable screw air compressor >> | drill pipe >> | drill hammer >> | auger drill pipe >> | drill bit >> |
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.
Q3: What about the s hipments and package ?
A:
40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A: We have got ISO,CE certificate.
Q 5 : How to control the quality?
A: We will control the quality by ISO and CE requests .
Q 6 : Do you have after-sale service and warranty service ?
A: Yes, we have. We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q 7 : Can I trust your company ?
A: Our company has been certificated by Chinese government ,and verified by Ali baba Trade Assurance. 100% refund of the Trade Assurance Amount .Alibaba can guarantee all of you payment .Just order from US !
