Quick Details
-
Model Number:
-
G5T22-C1Z100A03
-
Protection Level:
-
0
-
Operating Temperature:
-
-25℃~125℃
-
Max. Current:
-
22A
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G5 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Unit Net Weight:
-
6.2g
-
Color:
-
Blue
-
Product Name:
-
Long Life Electric High-Temperature Microswitch
Quick Details
-
Max. Voltage:
-
125/250(V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G5T22-C1Z100A03
-
Protection Level:
-
0
-
Operating Temperature:
-
-25℃~125℃
-
Max. Current:
-
22A
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G5 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Unit Net Weight:
-
6.2g
-
Color:
-
Blue
-
Product Name:
-
Long Life Electric High-Temperature Microswitch
Best Shipping Cost
1.Provide difference shipping way for your options, find the fast and cheap price shipping cost.
1.Provide difference shipping way for your options, find the fast and cheap price shipping cost.
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
G5T22-C1Z100A03
Micro Switch Drawing

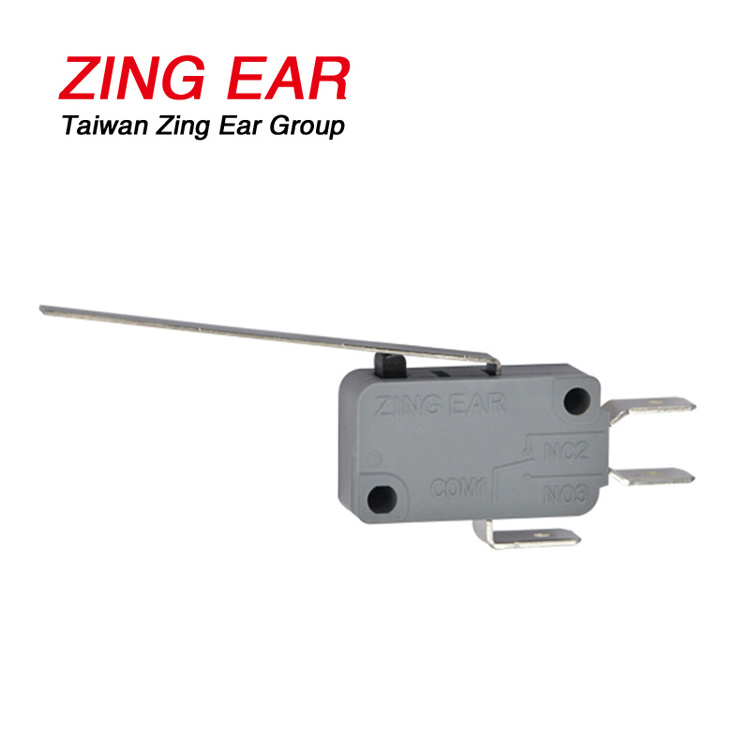

G5T22-C1Z100A03
Micro Switch Pictures
G5 Micro Switch Specification
|
Operating speed
|
0. 1mm-1m/s(Related with actuator forms)
|
|
|
|
|||
|
Operating frequency
|
Mechanical 60 cycles/min; Electrical 15 cycles/min.
|
|
|
|
|||
|
Insulation resistance
|
≥ 100 Ω (500VDC)
|
|
|
|
|||
|
0perating Frequency - Electrical
|
≥ 100 Ω (500VDC)10~30 time/min
|
|
|
|
|||
|
Contact resistance
|
≤ 100m Ω (Initial value)
|
|
|
|
|||
|
Between each terminals of the same polarity
|
AC1000V, 50/60нz, Imin
|
|
|
|
|||
|
Betweencurrent-carrying metal partand ground. and between eachterminaland non -current carring metal parts
|
AC1500V, 50/60HZ, 1min.
|
|
|
|
|||
|
Vibration resistance
|
10-55HZ, 1.5mm Double amplitude
|
|
|
|
|||
|
Shock resistance
|
Destruction:0F> 1.0N: 1000m/s2 (approx. 100G) max.0F≤ 1.0N:400m/s2 (approx. 40G) max.
0F> 1.0N:200m/s2 (approx. 20G) max. 0F≤ 1.0N:100m/s2 (approx. 10G) max. |
|
|
|
|||
|
Life expectancy
|
Mechanical >10,000, 000 cycles or 1, 000,000 cyclesElectrical >50,000 cycles or 100,000 cycles
|
|
|
|
|||
|
Electrical
|
Min. 100, 000次/cycles(Depend on part NO.)
|
|
|
|
|||
|
Weight
|
Approx. 6.2g(No lever).
|
|
|
|
|||
Application for G5
Household appliances
Home oven
vacuum cleaner
Heater
Electric clothes rail
Steam iron
Hanging ironing machine
Gas stoves
Intelligent cleaning robot
Wall-hung stove
Lightwave furnace
Microwave oven
Rice cooker
Water heater
Hairdresser
Electric hot water faucet
Inflatable bathtub
Scanning instrument
Handheld barcode scanner
Wall breaking machine
Broken cooking machine
Ice cream machine
Ice machine
Insulation machine
compressor
Sand machine
Coffee machine
Game console
Game console joystick
Game console rocker
dishwasher
Bowling machine
heater
Car washer
Automation equipment
Automatic beverage machine
vending machine
Unmanned vending machine
Lawn machine
Lawnmower
Lawn machine garden tools
Roller shutter
Volume gate
Electric trolley
Smart dishwasher
Level controller
Pneumatic actuators
Valve echo
Electric Actuator
Level controller
High-pressure sprayer
High-low pressure switch for water purifier
UL Water Pump Electronics
Refrigerator door signal
Built-in dehumidification system
Washing machine control system
Tubular motor
Putter motor
Ball float
Electric valve
Electric valve
Floating torch
electric putter
Putter motor
Treadmill
water heater
Electric flatbed
