Quick Details
-
Filling Accuracy:
-
±5%
-
Voltage:
-
Pouch
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LinkAir
-
Dimension(L*W*H):
-
880x760x1800mm
-
Weight:
-
275 KG
-
Product name:
-

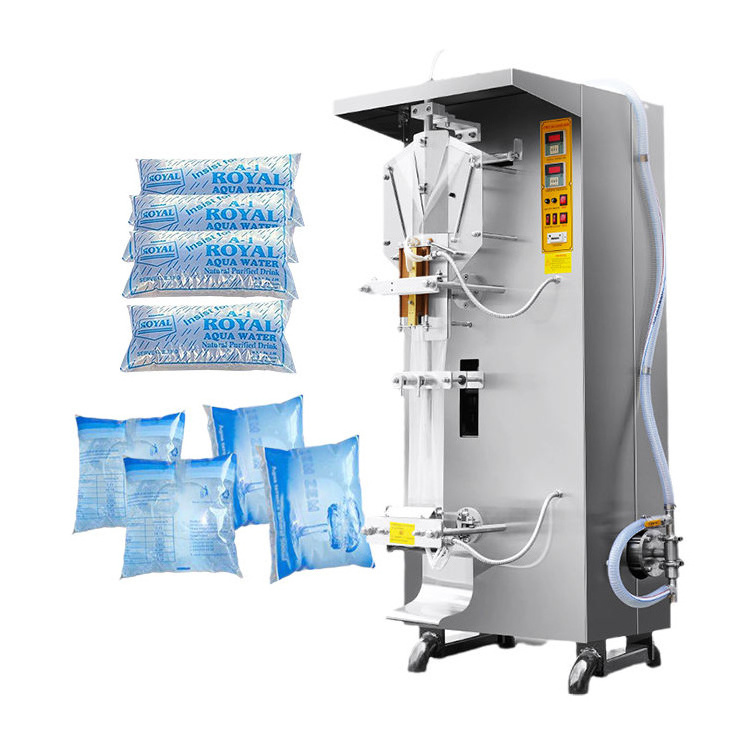

Liquid Water Filling Packing Machine
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
±5%
-
Voltage:
-
Pouch
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LinkAir
-
Dimension(L*W*H):
-
880x760x1800mm
-
Weight:
-
275 KG
-
Product name:
-
Liquid Water Filling Packing Machine
Product Paramenters
|
Item
|
Liquid Filling And Sealing Machine
|
|
|
|
|||
|
Type
|
Automatic
|
|
|
|
|||
|
Bag Length
|
50-150mm
|
|
|
|
|||
|
Bag Width
|
40-150mm
|
|
|
|
|||
|
Film Width
|
100-320mm
|
|
|
|
|||
|
Filling Range
|
50~500ml
|
|
|
|
|||
|
Packing Speed
|
2000-2200bags/h
|
|
|
|
|||
|
Voltage
|
220V/50HZ
|
|
|
|
|||
|
Power
|
1.6kw
|
|
|
|
|||
|
Weight
|
N.W.:275KGS G.W.:310KGS
|
|
|
|
|||
|
Machine Size
|
880×760×1800mm
|
|
|
|
|||
|
Packaging Size
|
870×950×1960mm
|
|
|
|
|||
|
Film Thickness
|
17~35μm
|
|
|
|
|||
|
Film Width
|
500mm
|
|
|
|
|||
|
Film Inner Core Size
|
76.2mm
|
|
|
|
|||
|
Maximum Outer Diameter of Film
|
240mm
|
|
|
|
|||
|
Feture
|
1. Frame & liquid-contact parts: 304 SS.
2. Film output: 304 SS sliding rail plate.
3. Electrical control: Control panel, wiring, AC contactors.
4. Equipped with UV sterilizer & date coder.
5. Data counter on front panel.
6. Finished bags: Exquisite, reliable,hygienic & safe.
7. Photoelectric control ensures pattern integrity.
8. Auto completes bag making, filling, sealing, cutting,counting, batch printing.
|
|
|
|
|||
|
Contact Us
|
|
|
|
||||
Products Description
Product Detials
Forming Device
Easy Changing by film width, Film Fast once forming.
Vertical Sealing
Pure copper heats up quickly. Good thermal conductivity, zero deform.
Coding Part
Ribbon and steel stamp are available.
Can be equipped with a ribbon.
Can be equipped with a ribbon.
Sealing And Cutting
Pure copper heats up quickly, the seal is beautiful and firm.
One-way Valve
Fast suction, with a check valve device, no material will be stopped when the machine stops.
Control Panel
Humanized design control panel, easy to operate adjust temperature, automatic counting, germicidal lamp, etc.
