Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Automatic Laminator
-
Max laminating width:
-
1600mm
-
Warm-up time:
-
10-15min
-
Max Laminating Speed:
-
10m/min
-
Motor Power:
-
120w
-
Diameter of roller:
-
130mm
-
GROSS WEIGHT:
-
210kg
-
voltage:
-
220/110V
-
color:
-
gray
-
Platform height:
-
90cm
Quick Details
-
Type:
-
Cold & Hot Laminator
-
Brand Name:
-
Qianyan
-
Model Number:
-
FY1600da
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Automatic Laminator
-
Max laminating width:
-
1600mm
-
Warm-up time:
-
10-15min
-
Max Laminating Speed:
-
10m/min
-
Motor Power:
-
120w
-
Diameter of roller:
-
130mm
-
GROSS WEIGHT:
-
210kg
-
voltage:
-
220/110V
-
color:
-
gray
-
Platform height:
-
90cm
Products Description
|
SPECIFICATIONS
|
|
|
|
|
||||
|
1
|
Model
|
FY-1600DA
|
|
|
||||
|
2
|
Max laminating Width
|
1620mm
|
|
|
||||
|
3
|
Max laminating thickness
|
35mm
|
|
|
||||
|
4
|
Max speed
|
10m/min
|
|
|
||||
|
5
|
Heating
|
Room-60℃
|
|
|
||||
|
6
|
Roller material
|
Infrafed
|
|
|
||||
|
7
|
Engine displacement
|
Silicon
|
|
|
||||
|
8
|
Roller upgrade
|
Air cylinde
|
|
|
||||
Product Overview

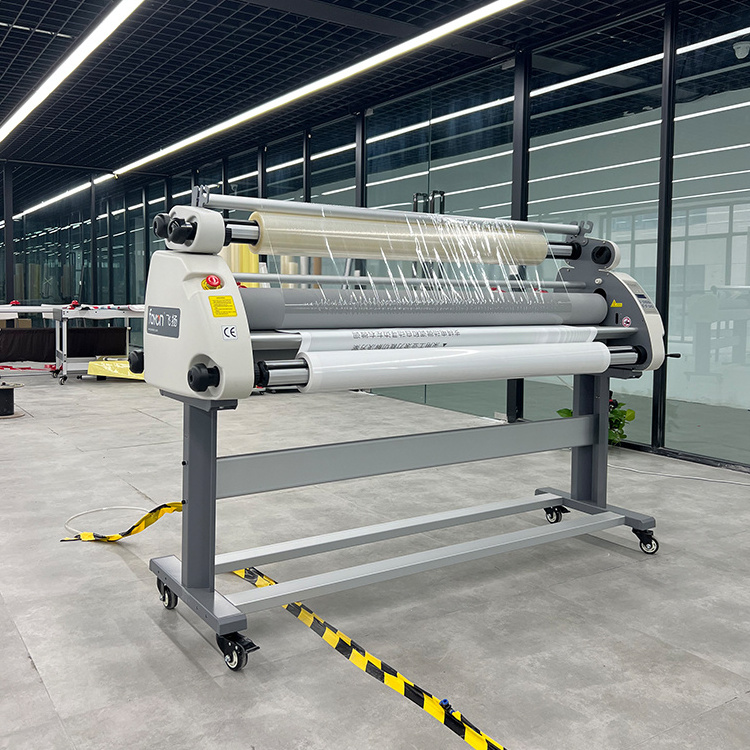

Automatic laminating machine
Automatic Laminating Machine with Heat-assist, laminating machine price. Laminating machine is used to laminate film on print or graphics.
It is widely used in the advertising industry. Enhanced strong frame, we use 6 mm no deformation steel plate. Import silicon
roller with a diameter of 130 mm, the thickness of silicon is 6 mm.
Sensitive air pressure adjustable system. The pressure can be adjusted by air compressor, easy to use.
Micro-digital viewing screen for setting lamination temperature. External temperature sensor, making the temperature measurement
more accurate.
Automatic feed-in and take-up system, including the back paper take-up scroll. Foot pedal,emergency stop, durable cable, import electronic parts.
It is widely used in the advertising industry. Enhanced strong frame, we use 6 mm no deformation steel plate. Import silicon
roller with a diameter of 130 mm, the thickness of silicon is 6 mm.
Sensitive air pressure adjustable system. The pressure can be adjusted by air compressor, easy to use.
Micro-digital viewing screen for setting lamination temperature. External temperature sensor, making the temperature measurement
more accurate.
Automatic feed-in and take-up system, including the back paper take-up scroll. Foot pedal,emergency stop, durable cable, import electronic parts.
Details Images
1.Automatically tear the base paper
2.Automatic rewinding of finished products
3.Equipped with infrared ray to prevent hand clamping function
4.Air pressure controls the lifting of silica gel wheel
5.The maximum heating temperature is 60℃
7.Can adjust the laminating pressure
Right elevation
Left elevation
Front elevation
