- Product Details
- {{item.text}}
Quick Details
-
Color:
-
black/white/OEM
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YXD43S-DU
-
Brightness:
-
400-1500cd
-
Display Ratio:
-
16:9
-
Response Time:
-
6ms
-
Contrast Ratio:
-
4000:1
-
Lifespan (hours):
-
50000h
-
IP Rating:
-
IP65
-
Installation Type:
-
floot standing
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080
-
View Angle（H/V）:
-
178°/178°
-
Product name:
-
LCD Advertising display board
-
Panel Size::
-
43INCH
-
color:
-
Black / White / Customization
-
Warranty:
-
1-3years
-
Capacity:
-
43000mAh
-
RAM:
-
2GB DDR4(optional 3GB)
-
Feature:
-
IP65 is waterproof and dustproof
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
-
Including:
-
Remote Manual. Power adapter
Quick Details
-
Application:
-
Outdoor, Outdoor LCD Digital Screen
-
Type:
-
LCD
-
Brand Name:
-
Asianda/OEM
-
Color:
-
black/white/OEM
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YXD43S-DU
-
Brightness:
-
400-1500cd
-
Display Ratio:
-
16:9
-
Response Time:
-
6ms
-
Contrast Ratio:
-
4000:1
-
Lifespan (hours):
-
50000h
-
IP Rating:
-
IP65
-
Installation Type:
-
floot standing
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080
-
View Angle（H/V）:
-
178°/178°
-
Product name:
-
LCD Advertising display board
-
Panel Size::
-
43INCH
-
color:
-
Black / White / Customization
-
Warranty:
-
1-3years
-
Capacity:
-
43000mAh
-
RAM:
-
2GB DDR4(optional 3GB)
-
Feature:
-
IP65 is waterproof and dustproof
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
-
Including:
-
Remote Manual. Power adapter

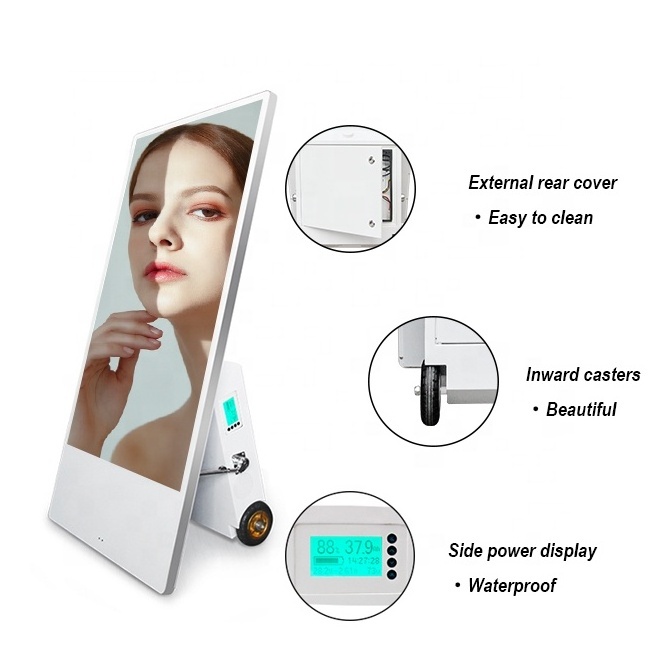

IP65 Waterproof 43 inch Outdoor Portable Moveable Advertising Player With Battery Powered Floor Stand Outdoor LCD Digital Screen
● These freestanding displays are a fully portable solution and can be easily moved by one person as they feature fixed casters with a handle bar and a foldable design.
● Fitted with a commercial grade panel, with a lifespan of 50,000 hours, and using high quality components ensures the displays can be in constant use 24/7.
● The battery's working time is about 14 Hours.
● Three solutions optional：Monitor version，Plug & Play version，Android Version. With hdmi in, Support to connect external media player box.
Product Parameter
|
Item
|
Model No.
|
YXD-43S （TFT-LCD）
|
|
|
|
||||
|
Panel Parameter |
Viewable area (mm)
|
940.896(H)x 529.254(V)
|
|
|
|
||||
|
|
Aspect Ratio
|
16 : 9
|
|
|
|
||||
|
|
Resolution
|
1920X1080（FHD）
|
|
|
|
||||
|
|
Brightness
|
1500cd/m²
|
|
|
|
||||
|
|
Contract Ratio
|
4000：1
|
|
|
|
||||
|
|
Viewing angle
|
89/89/89/89
|
|
|
|
||||
|
|
Viewing Angle
|
178°
|
|
|
|
||||
|
Battery information |
Capacity
|
43200mAh
|
|
|
|
||||
|
|
Working time
|
About
14 Hours
|
|
|
|
||||
|
|
Charge time
|
About 7 Hours
|
|
|
|
||||
|
|
Battery technology
|
Integrated polymer lithium battery
|
|
|
|
||||
|
|
voltage
|
25.2V
|
|
|
|
||||
|
|
power
|
110W
|
|
|
|
||||
|
|
energy efficiency
|
1088.54Wh
|
|
|
|
||||
|
Android system (Default)
|
CPU
|
Dual core RAM Cortex-A53+ Dual core RAM Cortex-A73 CPU, CPU Frequency: 1.55GHZ
|
|
|
|
||||
|
|
GPU
|
MALI-G51 MP2，support FULL HDR
|
|
|
|
||||
|
|
RAM
|
2GB DDR4 (optional 3GB)
|
|
|
|
||||
|
|
ROM
|
8GB NAND(optional 16GB)
|
|
|
|
||||
|
|
Wi-Fi
|
802.1 1b/g/n
|
|
|
|
||||
|
|
Operating system
|
Android 8.0
|
|
|
|
||||
|
|
LAN
|
10/100M Ethernet
|
|
|
|
||||
|
|
USB
|
USB2.0 HOST (x2)
|
|
|
|
||||
|
|
RJ45
|
Ethernet(LAN) x 1
|
|
|
|
||||
|
|
SD
|
SD(TF) x 1
|
|
|
|
||||
|
|
Audio
|
Audio Socket (3.5mm)
|
|
|
|
||||
|
|
Speaker
|
8Ω 5W x2
|
|
|
|
||||
|
|
Media Formats
|
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
|
|
|
|
||||
|
|
Software supported
|
APP Installer, File Manager, Video player, picture player, Browser, etc.
|
|
|
|
||||
|
Boundary dimension
|
Product size
|
1234x591x195 (WxHxD mm)
|
|
|
|
||||
|
|
package size
|
1335x700x300 (WxHxD mm)
|
|
|
|
||||
|
|
Net Weight
|
38.16KG
|
|
|
|
||||
|
|
Gross weight
|
46KG
|
|
|
|
||||
|
service environment
|
operating temperature
|
-20 °C to 70 °C （Maximum temperature resistance 105°C）
|
|
|
|
||||
|
replacement part
|
Remote control, instruction manual, charger and charging cable
|
|
|
|
|
||||
●Battery reminder
The device can clearly display the remaining battery, convenient arrangement of battery use and charging time.
●Super long running time
Integrated polymer lithium batteries revolutionize the way you use digital signage. This commercial grade
The thin battery solution gives you more than 14 hours of working time.
●Super long running time
Integrated polymer lithium batteries revolutionize the way you use digital signage. This commercial grade
The thin battery solution gives you more than 14 hours of working time.
Product Function
●Plug and play
Simply load the image and video onto a USB stick, plug it into the display, and wait for the content to be copied. Images,andvideos can be played continuously in a loop.
●Supported formats
Simply load the image and video onto a USB stick, plug it into the display, and wait for the content to be copied. Images,andvideos can be played continuously in a loop.
●Supported formats
Video (MPG, AVI, MP4, RM, RMVB, TS), audio (MP3, WMA), picture (JPG, GIF, BMP, PNG), subtitles scrolling.
Application Scenario
