Quick Details
-
Model Number:
-
ALE-1000
-
Product name:
-
lens edger
-
Model:
-
ALE-1000
-
Accuracy:
-
Tolerance ±0.01mm
-
Material:
-
PC, glass, CR, HI,HR, TC
-
Touch Screen:
-
7 inch capacitive screen
-
Color:
-
White
-
Function:
-
automatic
-
Voltage:
-
AC 220V/110V 50/60HZ
-
Certificate:
-
CE ISO
-
Application:
-
Optical Shops
Quick Details
-
Warranty:
-
12 MONTHS
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
vowish
-
Model Number:
-
ALE-1000
-
Product name:
-
lens edger
-
Model:
-
ALE-1000
-
Accuracy:
-
Tolerance ±0.01mm
-
Material:
-
PC, glass, CR, HI,HR, TC
-
Touch Screen:
-
7 inch capacitive screen
-
Color:
-
White
-
Function:
-
automatic
-
Voltage:
-
AC 220V/110V 50/60HZ
-
Certificate:
-
CE ISO
-
Application:
-
Optical Shops
Optical laboratory lens cutting edgeing machine auto lens edger ALE-1000 patternless lens edger

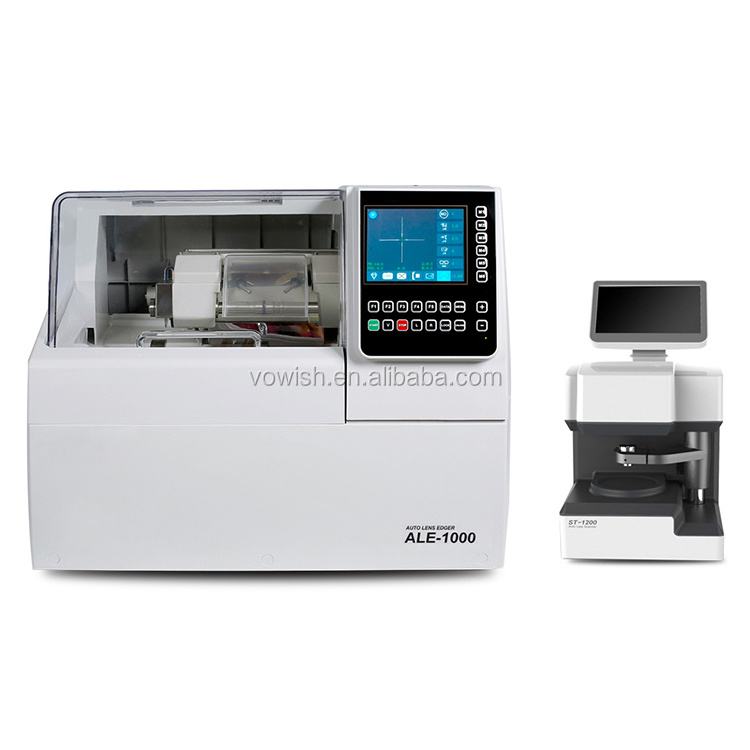

ALE-1000 Patternless Auto Edger
Features:
Adapt to PC glass, Resin, HI, HC and TR lens material
Three grade headpiece pressure to present the lens from being out of axis
Special design suction cup holder to realize lens returning by one push
It is adjustable for the scanning light source, more than 98% Demo lenses are available
Have the optical centering and geometric centering modes
Turn out to install the suction cup, easier to operate
Digital template can edit the figure
Parameters:
|
Technique Specification |
ALE-1000 |
ST-1200 |
|
Product Size |
620mm*520mm*500mm |
217mm*232mm*413mm |
|
Package Size |
810mm*690mm*720mm |
590mm*440mm*380mm |
|
Weight |
55kg |
10kg |
|
Power Supply |
AC220V/110/ 50/60Hz |
AC230V/115V/ 50/60Hz |
|
Power |
500w |
50w |
