matrix switcher HDMI/SDI modular seamless video matrix switcher video matrix switch

matrix switcher HDMI/SDI modular seamless video matrix switcher video matrix switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $749

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

PVW Output:: 3G-SDI*1 (AUX)

PGM Output:: 3G-SDI *2, HDMI*1

Input:: 3G-SDI *4, HDMI 2.0*2

Input Format:: SD/HD/3G-SDI 1080p@60hz, HDMI 4K@60

Multiview Output:: HDMI*1

Output Format:: Up/down Scaling

Audio Mixer:: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio

Dimension:: 249.2*172.3*55mm

Quick Details

Place of Origin:: Fujian, China

Product Name:: 6-Channel 3G-SDI Multi-format Video Switcher with Recording

Product name:: Foldable Professional Video Switcher

PVW Output:: 3G-SDI*1 (AUX)

PGM Output:: 3G-SDI *2, HDMI*1

Input:: 3G-SDI *4, HDMI 2.0*2

Input Format:: SD/HD/3G-SDI 1080p@60hz, HDMI 4K@60

Multiview Output:: HDMI*1

Output Format:: Up/down Scaling

Audio Mixer:: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio

Dimension:: 249.2*172.3*55mm

Products Description

matrix switcher HDMI SDI modular seamless video matrix switcher video matrix switch

PVS0601

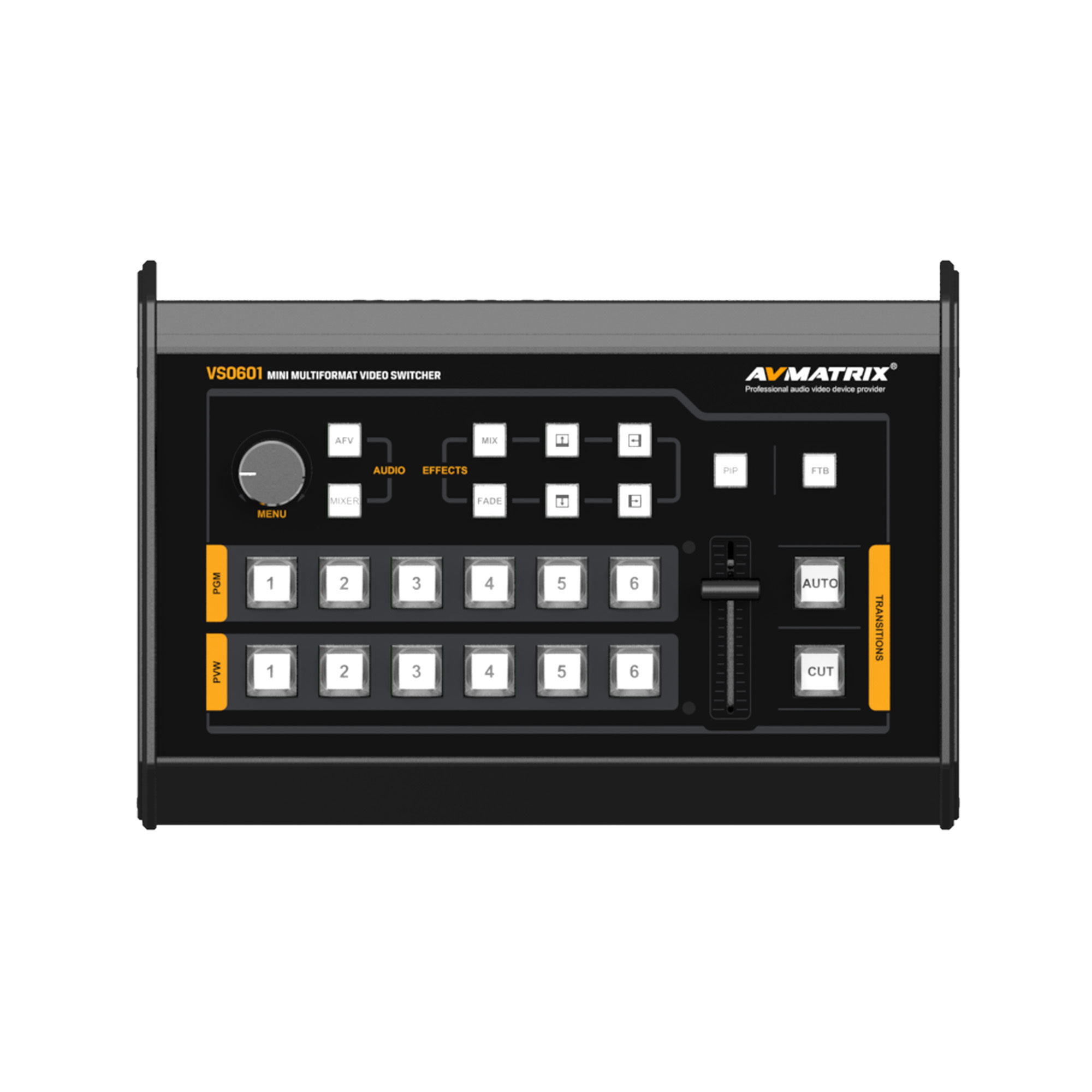

AVMATRIX 6 Camera Multi format Mini Video Switcher Mixer

Main Features

* (1) 6 channel inputs: 4×SDI and 2×HDMI inputs
(2) 2×SDI &1×HDMI PGM outputs, 1×SDI AUX output, 1×SDI &1×HDMI multiview outputs
(3) 6 input signals autuo detected, multi format signals supported
(4) T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects

(5) PiP mode, both size and position is adjustable
(6) Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
(7) GPIO interface for live tally system
(8) FTB for emergency situation

Multi-format & Scaler

Flexible to accept 6 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p.

Multiviwer Monitoring

Multiview output make it easy to monitor 6 cameras as well as PVW and PGM on one display at same time. Besides, a clock and menu list are located in the lower right corner of the multiview.

PIP

To insert a second picture into/outside the main picture. Simply adjust the size and position of windows and then overlay on the program.

Transition Effects

Transition between PVW and PGM with Wipe/ Mix/ Fade effect through T-bar & Auto.

Audio Mixer

A built-in audio mixer can mix 2 external stereo 3.5mm &RCA audio and 6ch embedded audios.

Portable Handbag

The switcher comes with a handbag, total around 1.7kg, very portable for taking to anywhere.

After-Sales Service

AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting
standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.

About AVMATRIX

AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of provideo devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
