Quick Details
-
Brand Name:
-
CS Drill
-
Weight:
-
830 kg
-
Dimension(L*W*H):
-
205*106*200cm
-
Product name:
-
Small Piling Driving Hammer Helical Pile Driver Post Machine
-
Drilling diameter:
-
8-30cm
-
Walking speed(km/h):
-
7 - 15 km/H
-
Drilling speed:
-
F=8-12...100-200mm/min
-
way of walking:
-
crawler gearbox walking
-
Air Consumption:
-
6 square meters / minute
-
Power:
-
diesel 22HP hydraulic pneumatic
-
Applicable rocks:
-
medium hard hard rock f=8-16
-
Piling height:
-
within 2 meters
-
Pressurization system:
-
hydraulic cylinder chain booster
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Piling Speed(m/min):
-
F=8-12...100-200mm/min
-
Place of Origin:
-
China
-
Brand Name:
-
CS Drill
-
Weight:
-
830 kg
-
Dimension(L*W*H):
-
205*106*200cm
-
Product name:
-
Small Piling Driving Hammer Helical Pile Driver Post Machine
-
Drilling diameter:
-
8-30cm
-
Walking speed(km/h):
-
7 - 15 km/H
-
Drilling speed:
-
F=8-12...100-200mm/min
-
way of walking:
-
crawler gearbox walking
-
Air Consumption:
-
6 square meters / minute
-
Power:
-
diesel 22HP hydraulic pneumatic
-
Applicable rocks:
-
medium hard hard rock f=8-16
-
Piling height:
-
within 2 meters
-
Pressurization system:
-
hydraulic cylinder chain booster
Products Description
Product Introduction

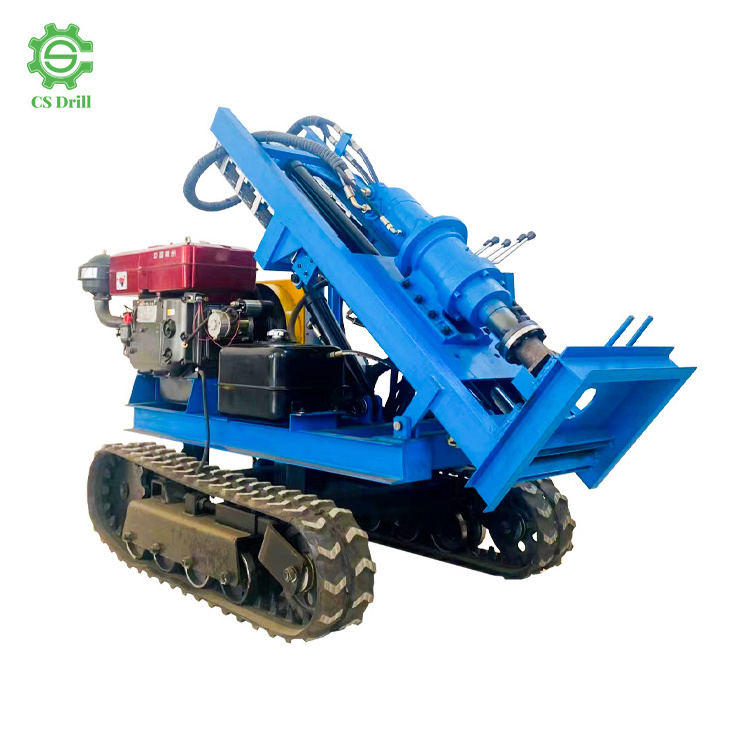

Hydraulic Ground Screw Small Piling Driving Hammer Helical Pile Driver Post Machine
is
dedicated to photovoltaic foundation engineering. The photovoltaic pile driver is a device for driving solar photovoltaic columns (as shown in the figure below). The machine has the functions of piling and drilling. The drilling function is divided into soil layer spiral drilling and spiral ground nails, and rock layers are equipped with pneumatic drilling such as air compressors and impactors. Because it can be used for multiple purposes, it is also called a multi-functional pile driver.
|
Hydraulic Ground Screw Small Piling Driving Hammer Helical Pile Driver Post Machine
|
|
|
|
|
||||
|
Power
|
4 KW by diesel 22HP hydraulic pneumatic
|
|
Pressurization system
|
Hydraulic cylinder chain booster
|
||||
|
Chassis
|
Engineering rubber track chassis
|
|
Carriage stroke
|
2.6 meters or customized
|
||||
|
Drilling diameter
|
8-30 cm
|
|
Weight
|
830KG
|
||||
|
Adapt to rock types
|
Medium hard hard rock f=8-163
|
|
Oil pump
|
Single pump
|
||||
|
Air consumption
|
6 square meters per minute
|
|
torque Single
|
1800/2000 torque
|
||||
|
Drilling speed
|
F=8-12…100-200mm/min
|
|
Machine size
|
205*106*200 CM
|
||||
|
Walking speed
|
7-15km/h
|
|
Hoist power
|
full hydraulic
|
||||
|
Way of walking
|
crawler gearbox walking
|
|
Piling height
|
within 2 meters
|
||||
|
Heat dissipation method
|
hydraulic radiator
|
|
|
|
||||
