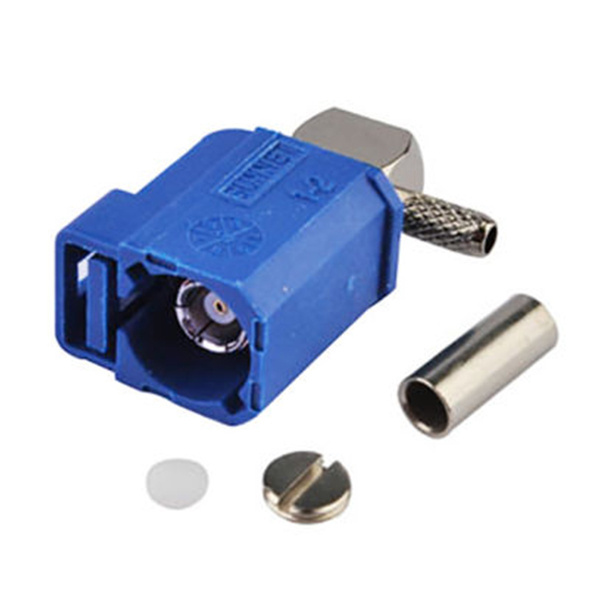

Gps Antenna Fakra Plug Crimp Rg174 Rg316 Single Head Fakra Connector

Gps Antenna Fakra Plug Crimp Rg174 Rg316 Single Head Fakra Connector

FOB Reference Price: Get Latest Price

≥200 Pieces

US $3.85

≥500 Pieces

US $2.85

≥1000 Pieces

US $1.85

≥10000 Pieces

US $0.58

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: DOSIN

Characteristic impedance:: 50OHM

Frequency Range:: DC~6GHz

Insulation resistance:: ≥1000mΩ

VSWR:: ≤1.30

Intervention loss:: ≤20mΩ 0.25dB(for a mated pair)

Core connection resistance:: ≤20mΩ

Temperature range:: -40 ~ +125 ℃

Operating Voltage:: 335V r.m.s at sea level

Withstand voltage:: 1000V r.m.s at sea level

Quick Details

Type:: FAKRA

Application:: Automotive

Gender:: Female

Place of Origin:: Guangdong, China

Brand Name:: DOSIN

Characteristic impedance:: 50OHM

Frequency Range:: DC~6GHz

Insulation resistance:: ≥1000mΩ

VSWR:: ≤1.30

Intervention loss:: ≤20mΩ 0.25dB(for a mated pair)

Core connection resistance:: ≤20mΩ

Temperature range:: -40 ~ +125 ℃

Operating Voltage:: 335V r.m.s at sea level

Withstand voltage:: 1000V r.m.s at sea level

For the Specific Price of Other Models,

Please Contact Our Customer Service >>

Product Description

Full Series : New Automotive Power Connector Cable

All types of Automotive Connector from OEM Manufacturer in China

FAKRA (Fachkreis Automobil, a german standard) connectors are SMB based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature that has an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention. FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.

Fakra Close-up View
1. Mounting groove for cable connectors for chassis mounting
2. Secure primary locking system between plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm

4. Protection of the coaxial insert by shock and vibration resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 13 different codes

FAKRA Code

Temperature Range	-40°~+125°C
Characteristic Impedance	50Ω
Frequency Range	DC~6GHz
Operating Voltage	335V r.m.s at sea level
Withstand Voltage	1000V r.m.s at sea level
Core Connection Resistance	≤20mΩ
Insulation Resistance	≥1000mΩ
Intervention loss	≤20mΩ 0.25dB(for a mated pair)
Voltage	≤1.30
Plastic Housing	PA66+30%GF
Body & Center Contact	Bronze
Insulator	PTFE

If You Still Not Found a Suitable Product, Please Contact Us>>

Applications

GPS Antennas , Engine Management Systems , Analog or Digital Radios , Auxiliary Heating , TV/Video Displays, Antennas , Distribution Boxes , Accident Data Analysis , Hand Machine , Remote Keyless Entry System , Distance Control , Pressure Control and Navigation System, Etc.

Our Factory

Dongguan Dosin Hardware Electronics Co., Ltd.

Was established in 2005 , and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series, Fiber optical cable assemblies and other custom made connectors.

Our company covers more than 20000 square meters, with well-equipped workshop, automatic production lines, andhundreds of employers. Since our establishment, our products and services have received a good reputation home and abroad. So far,we have built business relations in many countries, 70% products being sold to all over the world.

Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence" and values "trust, quality,service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are RoHS , REACH compliant. If you are interested in our company or our products, please contact us. We will be here to response youthe first around.

We promise you the top-quality and the most cost-effective products and services. Looking forward to cooperate with you!

Stamping Workshop

Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.

Die Casting Workshop

Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.

Injection Moulding Workshop

Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.

Lathe Turning

Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.

FAQ

1. Manufacturer or trader?
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.

2. What's your MOQ?
Normally our MOQ is 200pcs. Small order is also available.

3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.

4. How is your product quality?

Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. Renhotec always care what you care!

5. What's the warranty?

One year, 12 months.
