Quick Details
-
Max. Resolution:
-
3840*2160P@30Hz
-
Warranty:
-
3 Years
-
Input:
-
3* HDMI type A, IR receiver x 1
-
Feature:
-
With 3 HDMI inputs and 1 HDMI output
-
Output:
-
1* HDMI type A
-
Product name:
-
3x1 HDMI Switcher with audio out
-
Certifications:
-
CE FCC ROHS
-
Chasing material:
-
Aluminium Alloy
-
HSW0301A30:
-
HDMI Switcher splitter for hdmi
-
Product Type:
-
HDMI Audio Embedder
Quick Details
-
Model Number:
-
HSW0301A30
-
Brand Name:
-
TESmart
-
Place of Origin:
-
Guangdong, China
-
Max. Resolution:
-
3840*2160P@30Hz
-
Warranty:
-
3 Years
-
Input:
-
3* HDMI type A, IR receiver x 1
-
Feature:
-
With 3 HDMI inputs and 1 HDMI output
-
Output:
-
1* HDMI type A
-
Product name:
-
3x1 HDMI Switcher with audio out
-
Certifications:
-
CE FCC ROHS
-
Chasing material:
-
Aluminium Alloy
-
HSW0301A30:
-
HDMI Switcher splitter for hdmi
-
Product Type:
-
HDMI Audio Embedder
Product Description

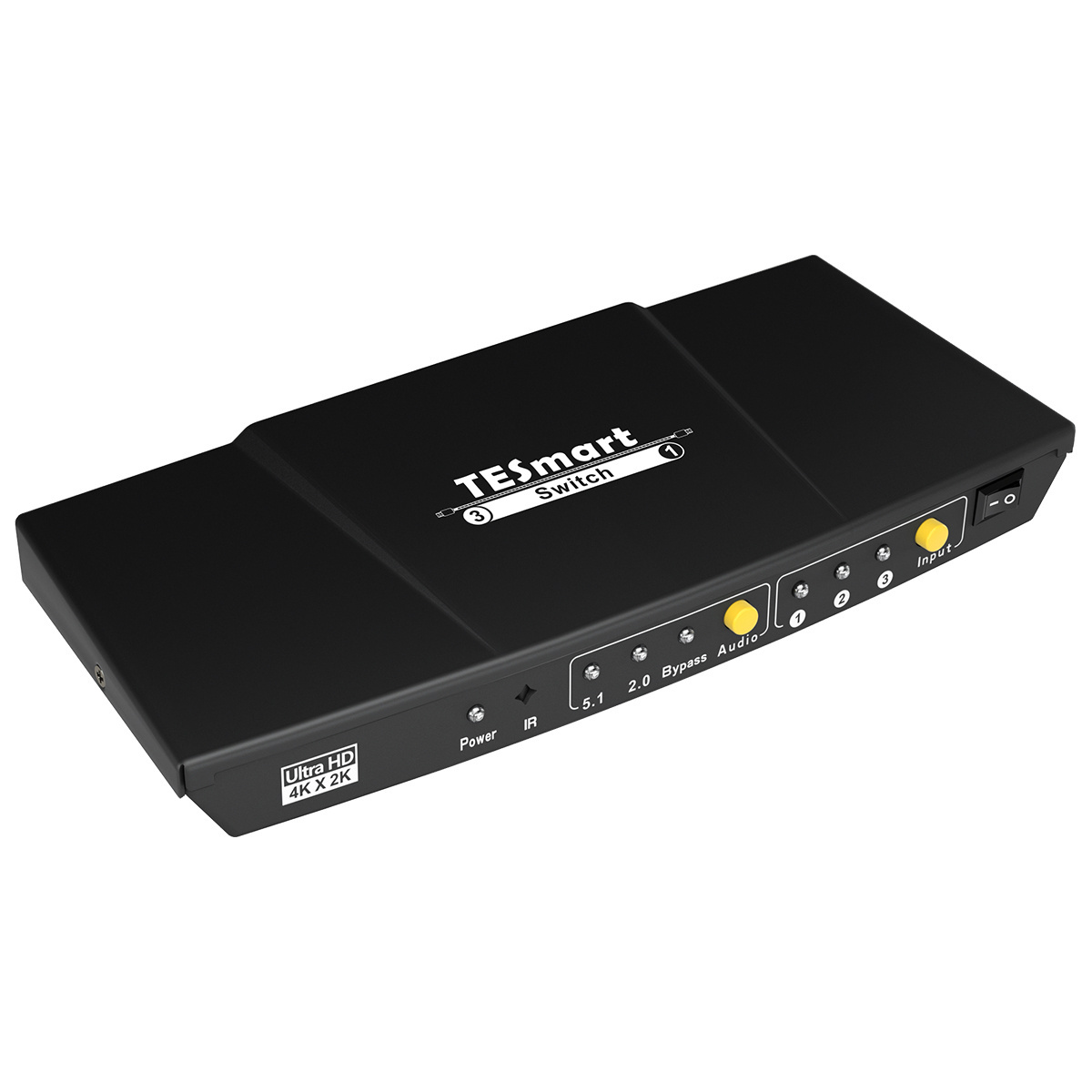

3x1 HDMI Switcher with audio out
The 3 Ports HDMI Switcher HSW0301A30, allows up to 3 Ultra HD or Full HD sources to be routed to one Ultra HD display. Support S/PDIF and L/R audio output which comes from HDMI active input source.
Features
⭐With 3 HDMI inputs and 1 HDMI output
⭐Support audio output via optical or L/R AUX interfaces
⭐Support configuration of audio output among 2.0/5.1/Bypasss modes
⭐Support fast switch
⭐Support Ultra HD 4K and 1080P 3D resolution
⭐Support 8/10/12 bits color depth
⭐Support Dolby True HD, DTS-HD Master Audio, and Dolby Digital and AC-3 audio transmission
⭐Easy to switch input source with infrared remote control
Package Included
1 * 3x1 HDMI Switch
1 * IR Remote Control
1 * DC 5V 1A Power Adapter
1 * Quick-Start Guide
Specification
|
HSW0301A30
|
3x1 HDMI Switcher with audio out
|
|
||
|
Technical
|
|
|
||
|
HDCP compliance
|
Yes
|
|
||
|
Data rate
|
10.2 Gbps
|
|
||
|
Max. Resolution
|
3840*2160P@30Hz
|
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Input
|
3* HDMI Type A, IR receiver x 1
|
|
||
|
Output
|
1* HDMI Type A，1* Optical(S/PDIF), 1* AUX(L/R)
|
|
||
|
Mechanical
|
|
|
||
|
Chasing material
|
Aluminium Alloy
|
|
||
|
Power supply
|
DC 5V 1A
|
|
||
|
Operating/Storage temperature
|
0 to 70 degree/-40 to 85 degree
|
|
||
|
Operating Humidity
|
10 to 90% RH
|
|
||
|
Product
|
Dimension
|
196(L) x 80 (W) x 24 (H) mm
|
||
|
|
Weight
|
240g
|
||
|
Item
|
Dimension
|
245 (L) x 135 (W) x 90 (H) mm
|
||
|
|
Weight
|
495g
|
||
|
Carton
|
Dimension
|
515 (L) x 285 (W) x 470 (H) mm
|
||
|
|
Quantity
|
20pcs
|
||
|
|
Total Weight
|
10.75kg
|
||
