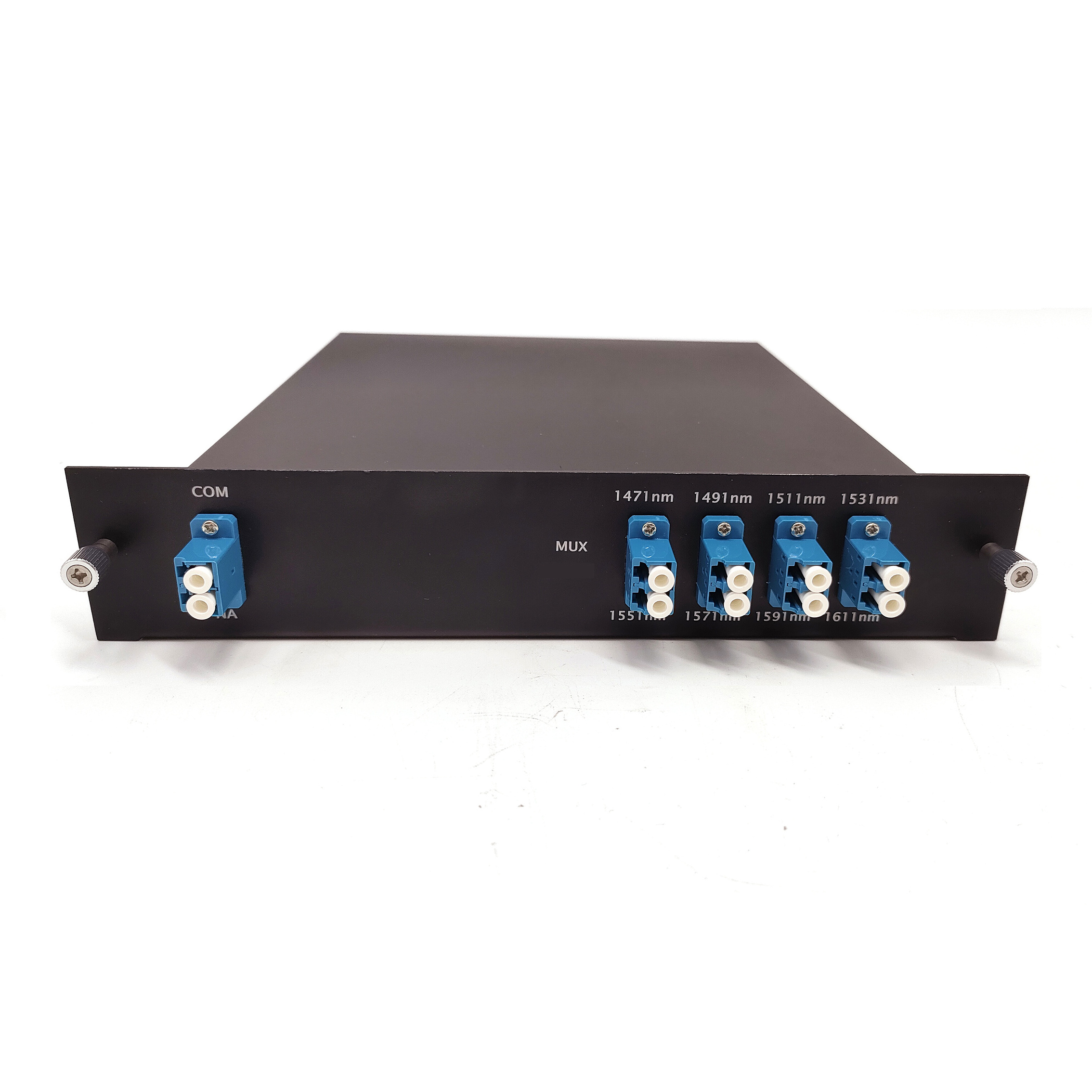

Single Fiber LGX Box 4/8/16 Channels CWDM DWDM Mux Demux

Single Fiber LGX Box 4/8/16 Channels CWDM DWDM Mux Demux

FOB Reference Price: Get Latest Price

≥1 Pieces

US $80

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Use:: DWDM Transmission, Metro and long-haul networks

Warranty Time:: 3 Years

Channels:: 4/8/16 channels

Total Ports:: 4/6/16 ports

Channel wavelength:: ITU 100GHz Grid

Channel Spacing (nm):: 0.8nm (100GHz)

Channel Passband(@-0.5dB bandwidth (nm):: >0.25

Insertion Loss (dB):: 4 channels ≤1.8; 8 channels ≤2.5; 16 channels ≤ 3.5

Return Loss (dB):: >45

Number of Fiber:: Single Fiber

Channel Uniformity (dB):: <=1.0

Directivity (dB):: >50

Quick Details

Type:: DWDM System

Model Number:: HT6000-MUX&DMUX 04/08/16-Single

Place of Origin:: Guangdong, China

Brand Name:: OEM

Use:: DWDM Transmission, Metro and long-haul networks

Warranty Time:: 3 Years

Channels:: 4/8/16 channels

Total Ports:: 4/6/16 ports

Channel wavelength:: ITU 100GHz Grid

Channel Spacing (nm):: 0.8nm (100GHz)

Channel Passband(@-0.5dB bandwidth (nm):: >0.25

Insertion Loss (dB):: 4 channels ≤1.8; 8 channels ≤2.5; 16 channels ≤ 3.5

Return Loss (dB):: >45

Number of Fiber:: Single Fiber

Channel Uniformity (dB):: <=1.0

Directivity (dB):: >50

Products Description

Description

The HT6000-MUX&DMUX 04/08/16/18-Sinlge is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers.

The MUX/DEMUX is standard LGX box packaged, may be used as a standalone tabletop device or mounted in 1-unit space of a 19” data rack. It can achieve bi-directional 9CH data transmission
With plug-n-play setup and a design that minimizes budget loss, they can readily and seamlessly integrate into an existing environment. Their small form factor and no power requirement means they can be placed virtually anywhere.

Features

It can achieve bi-directional 2/4/8/9CH data transmission Low Insertion Loss Wide passband High Channel Isolation High Stability and reliability Low-profile LGX box design fits in 2-slot 1U chassis Compliant to ITU-T G.694.2 standard and Telcordia GR1209, GR1221 Standard 18-channel CWDM band 1270nm - 1610nm (1271nm~1610nm), 20nm spacing, and 100GHZ DWDM Based on thin-film filter technology Passive, no electric power required. (MTBF ca. 500 years)

Application

CWDM/DWDM transmission Metro and long-haul networks Point-to-point CWDM/DWDM fiber optimization Linear add/drop DWDM fiber optimization

Customized DWDM Solution

How dual fiber 8ch DWDM Mux Demux connect?

Questions and Answers

Q1: How many channel for the DWDM can achieve? A1: DWDM wavelengths are packed tightly together over the C-band, In 100GHz grid(0.8nm) can achieve up to 48 wavelengths, In 50GHz grid(0.4nm) can achieve96 wavelengths.

Q2: What DWDM Mux Demux usually used for and application enviroment? A2: It widely use for long-haul transmission. The protocol is transparent and suit applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G Fibre Channel, FTTx and CATV. Q3: Can you provide customized sevices for DWDM Mux Demux? A3: Yes, HTFuture will customize your Mux perfectly tailored to your specific needs. Any specific wavelength, any connector, any housing and any special ports can be achieved. Q4: Passive DWDM vs CWDM – Which one is better? A4: For short distance (like 70km), low capacity, sub-10G. CWDM works better, as convenient and cost-efficient. If you want speed protocols of up to 100G/200G per channel, for long haul applications, DWDM works better. Q5: Can we order one pair to test first? A5: Yes, Without MOQ to support you. Q6: What certification it have? A6: CE, ROHs, FCC, ISO.
