Quick Details
-
Model Number:
-
Expandable Braided Sleeve
-
Color:
-
Black, customized, all colors are available
-
Flammability:
-
94-V2
-
Work Temperature:
-
-55 °C~155 °C
-
Melt Point:
-
240℃±10℃
-
Certification:
-
ROHS\REACH
-
Usage:
-
Cable Management insulation sleeve
Quick Details
-
Material:
-
PET
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOYU
-
Model Number:
-
Expandable Braided Sleeve
-
Color:
-
Black, customized, all colors are available
-
Flammability:
-
94-V2
-
Work Temperature:
-
-55 °C~155 °C
-
Melt Point:
-
240℃±10℃
-
Certification:
-
ROHS\REACH
-
Usage:
-
Cable Management insulation sleeve
High Quality Factory Supplied Auto Wire Cable Lot Sleeving Sheathing 10m PET Expandable Braided Sleeve cable protection sleeve
Video Description
Our Advantages
Support Customization
Integrating research and development, production and sales, it is a powerful supplier of special materials.
Products Description

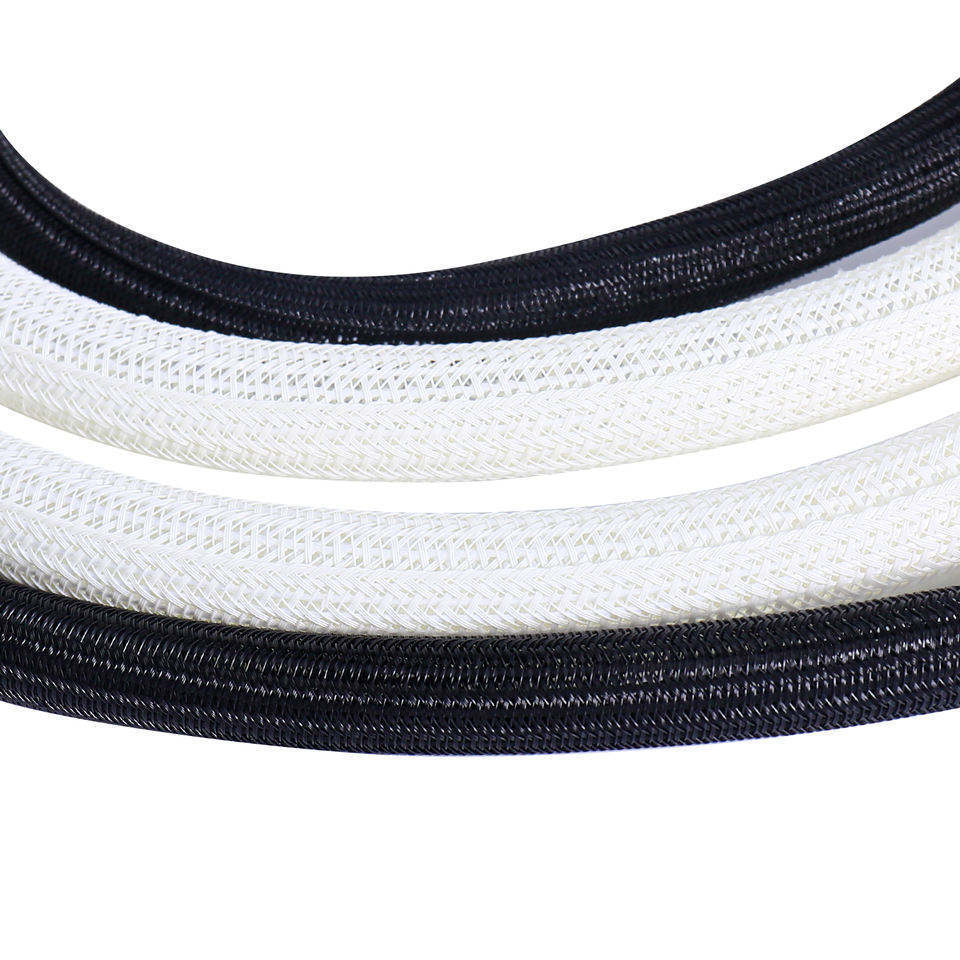

Self-rolling braided sleeve is a new type of wire protection sleeve, made of polyester monofilament and Woven polyester multifilament. It has the characteristics of good heat dissipation, fire resistance, wear resistance, simple and convenient operation.
The open design facilitates quick reassembly, maintenance and overhaul of the wire. Therefore, it is widely used in high Iron, automobile, automation equipment, computer wire and other fields, especially suitable for the protection of connecting wire in the working environment that needs to be dissipated
.
|
Part NO
|
ID.D(MM)
|
Spread Width
|
Max. Bundle Dia.(MM)
|
Packing(M/Roll)
|
|
SCW-005
|
5
|
32±3
|
6
|
100
|
|
SCW-008
|
8
|
42±3
|
9
|
100
|
|
SCW-010
|
10
|
50±3
|
11
|
100
|
|
SCW-013
|
13
|
64±5
|
13
|
100
|
|
SCW-016
|
16
|
84±5
|
17
|
50
|
|
SCW-019
|
19
|
108±5
|
20
|
50
|
|
SCW-025
|
25
|
132±10
|
26
|
25
|
|
SCW-030
|
30
|
152±10
|
31
|
25
|
|
SCW-032
|
32
|
152±10
|
33
|
25
|
|
SCW-038
|
38
|
196±10
|
10
|
25
|
|
SCW-050
|
50
|
254±10
|
52
|
25
|
Wide Application
Electronic Harness
Auto Industry
Automation Equipment
