Quick Details
-
Power (kW):
-
15.22
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JHM
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
4200*1200*2700mm
-
Weight (KG):
-
850 KG
-
materials:
-
stainless steel
-
model:
-
WFJ-15
-
capacity:
-
10-200kg/h
-
feeding size:
-
10mm
-
discharge size:
-
80-320 mesh
-
total power:
-
15.22kw
-
speed:
-
6000 rpm
-
weight:
-
850kg
-
overall size:
-
4200*1200*2700mm
Quick Details
-
Output (kg/h):
-
10 - 200 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
80 - 320 mesh
-
Power (kW):
-
15.22
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JHM
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
4200*1200*2700mm
-
Weight (KG):
-
850 KG
-
materials:
-
stainless steel
-
model:
-
WFJ-15
-
capacity:
-
10-200kg/h
-
feeding size:
-
10mm
-
discharge size:
-
80-320 mesh
-
total power:
-
15.22kw
-
speed:
-
6000 rpm
-
weight:
-
850kg
-
overall size:
-
4200*1200*2700mm
Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We have professional engineer and sales team.

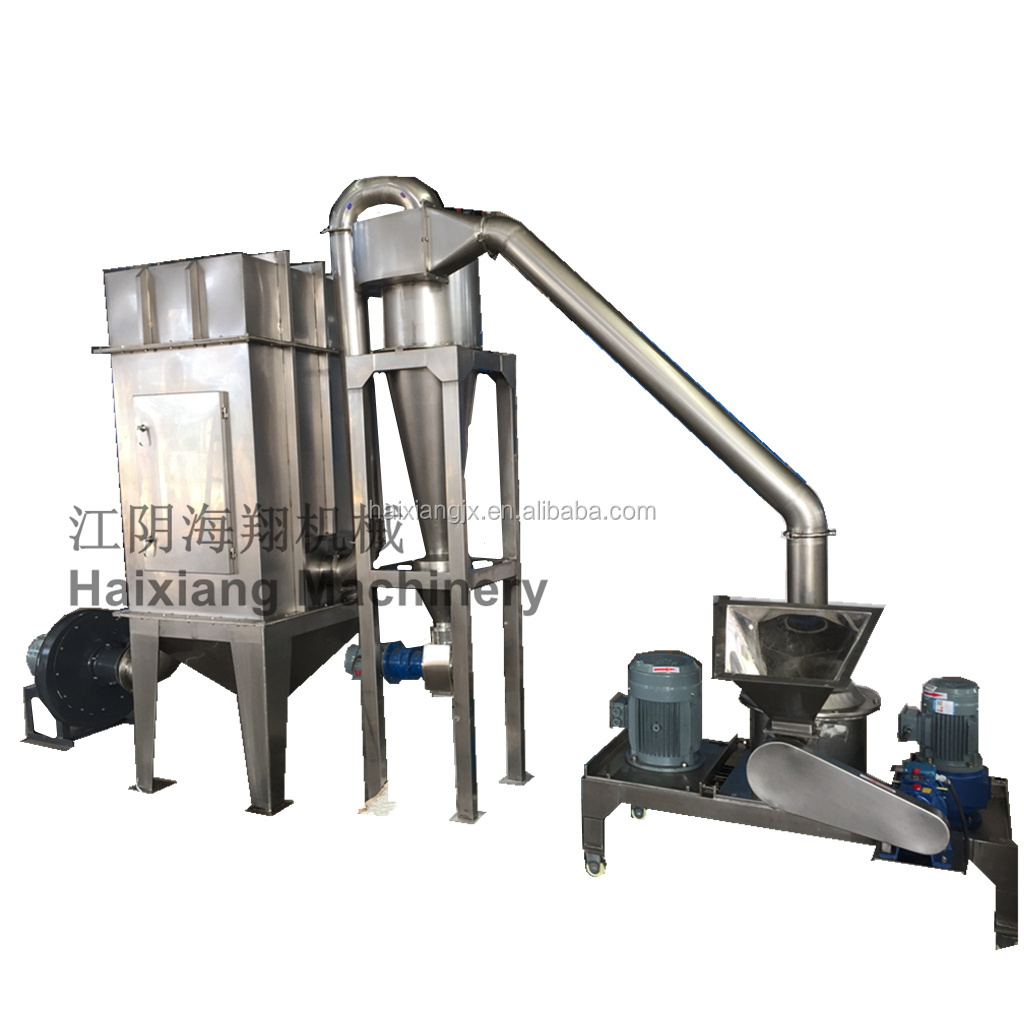

WFJ-15/30/60 Micro pulverizer
Main uses:
This machine is composed of three parts, the host, auxiliary electric control box, with a winnowing, no mesh or screen , uniform granule size and other properties, production process of continuous. The machine reaches the international advanced level, which are widely used in chemical, foodstuff and other industrial material crushing.
Working principle.
Material is fed into the crushing chamber through screw conveyor, the high-speed rotary blade shear pulverization, by means of negative pressure air transport the material into the cyclone separator, bag type dust collector, from material to product requirements.
| Model | WFJ-15 | WFJ-20 | 30 | 60 | 80 | 110 |
|
Prodtction Capacity
(kg/h) |
10~200 | 20~300 | 30-800 | 50-1200 | 100-1200 | 200-3000 |
| Size of input granules(mm) | <10 | <12 | ~10 | ~10 | ~15 | ~20 |
| Size of output granules(mesh) | 80~320 | 80~320 |
60-450
(adjustable) |
60-450
(adjustable) |
60-450
(adjustable) |
60-450
(adjustable) |
| Total Power(KW) | 13.5 | 17.5 | 46 | 84.15 | 145 | 230 |
| Main running speed | ~6000 | ~4800 | 3800 | 2800 | 2200 | 1480 |
| Weight(kg) | 850 | 1250 | 2800 | 4500 | 9500 | 16000 |
| Overall Size(L×W×H) | 4200×1200×2700 | 4700×1250×2900 | 6640×1300×3960 | 7500×2300×4530 | 9800×2600×6800 | 13000×3500×7200 |
