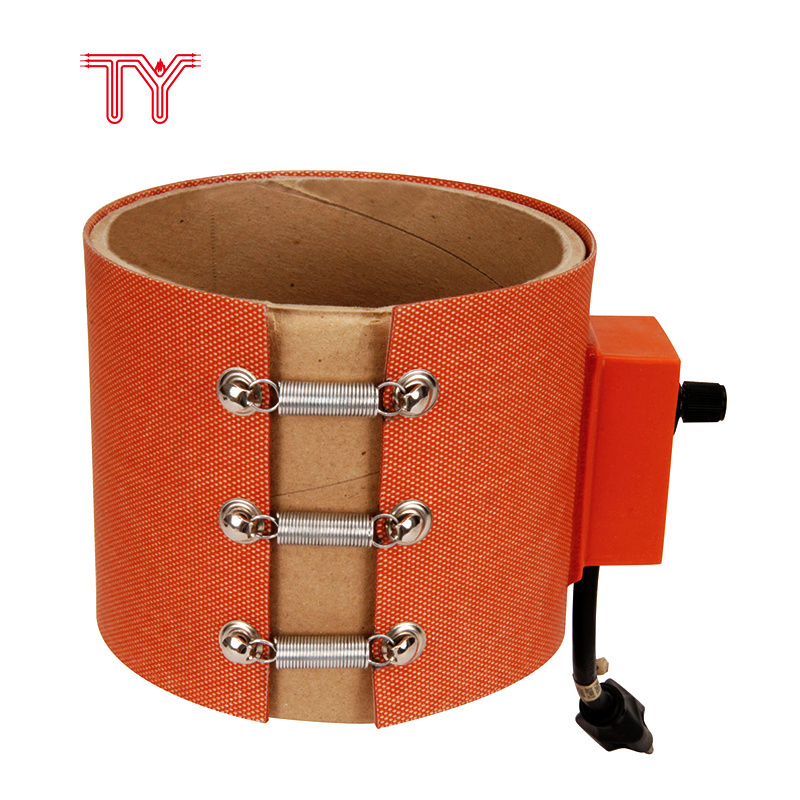

Silicon rubber heaters also have very good mechanical properties. They are of low mass construction and provide rapid heat-up due to direct bonding to the part. Silicon rubber heaters are not affected by mechanical shock, vibration or repeated flexing and not stretch or tear over a temperature range -236°C to +260°C.
Specifications
This product mainly consists of alloy electric heating wires and silicone rubber high temperature insulating cloth,it generates heat rapidly with even temperature, high heat efficiency &good toughness, it is easy to use,safe and water-proof,the aging life can be as long as 5 years.
This product mainly consists of alloy electric heating wires and silicone rubber high temperature insulating cloth,it generates heat rapidly with even temperature, high heat efficiency &good toughness, it is easy to use,safe and water-proof,the aging life can be as long as 5 years.
Technical parameters
1. The maximum temperature resistance of the insulating material:250°C
2. Highest service temperature:250°C-300°C
3. Insulating resistance:≥5MΩ
4. Compressive strength:1500v/5s
5. Power deviation rate:±8%
6. High voltage resistance:>5KV
7. Maximum 1000mm×8000mm minimum 20mm×20mm thickness1.5mm (thinness 0.8mm,thickness 4mm)lead wire length: Standard 200mm, in case that the above dimensions are exceeded, please contact with our company.
1. The maximum temperature resistance of the insulating material:250°C
2. Highest service temperature:250°C-300°C
3. Insulating resistance:≥5MΩ
4. Compressive strength:1500v/5s
5. Power deviation rate:±8%
6. High voltage resistance:>5KV
7. Maximum 1000mm×8000mm minimum 20mm×20mm thickness1.5mm (thinness 0.8mm,thickness 4mm)lead wire length: Standard 200mm, in case that the above dimensions are exceeded, please contact with our company.
