Marine aluminum composite panel curved aluminum honeycomb panel cladding panels exterior for boats material

Marine aluminum composite panel curved aluminum honeycomb panel cladding panels exterior for boats material

FOB Reference Price: Get Latest Price

≥101 Square meters

US $23

≥1000 Square meters

US $22

≥10000 Square meters

US $19

≥100000 Square meters

US $11

Free Inquiry

Customized Request

Explore More Products

Cladding Sheets Building Material Aluminum Composite Panel Exterior Plastic Sheet Board

$ 6.93 - $ 9.6

Custom Fireproof Aluminum Composite Cladding Panel Building Material

$ 8 - $ 9.23

High Quality Aluminum Composite Panel Exterior Panel For Wall Cladding Decoration

$ 6.93 - $ 9.6

Durable Wall Cladding Exterior Decoration Aluminum Composite Panel For Sale

$ 6.93 - $ 9.6

Fireproof Exterior Wall Board Aluminum Composite Panel Exterior Decoration Wall Cladding

$ 6.93 - $ 9.6

Aluminum Facade Composite Panel Sheet Wall Cladding For Interior Or Exterior Wall

$ 6.93 - $ 9.6

Chinese Supplier Multiple Color Aluminum Exterior Cladding Composite Panel With Competitive Price

$ 6.93 - $ 9.6

Building Material Aluminium Composite Panel Wall Cladding Acp Panel

$ 6.93 - $ 9.6

Product Details

{{item.text}}

Quick Details

Application:: Exterior

Design Style:: Modern

Surface Treatment:: PVDF Coated, Anodized, Brushed, Mirror, PE Coated, Printing

Place of Origin:: Guangdong, China

Brand Name:: JINBAISHI

Model Number:: Aluminium Composite Panel

Product Name:: Aluminium Composite Panel

Panel Thickness:: 2mm, 3mm, 4mm, etc

Aluminium Skin Thickness:: 0.018mm - 0.50mm

Panel Width:: 1220mm, 1250mm, 1500mm, etc

Panel Length:: 2440mm, 2500mm, 3050mm, 5000mm, etc

Color:: Solid/Glossy/Metallic/Brush/Mirror/Wooden/Marble, etc

Color Coating:: PE/HDPE/PVDF/FEVE, etc

Protective Film Printing:: OEM accetped

MOQ:: 1x20ft container

Loading Quantity:: 2100pcs/3mm, 1600pcs/4mm, etc

Quick Details

Warranty:: More than 5 years

Size:: 1220*2440mm, 1500*5000mm, etc

Project Solution Capability:: 3D model design, total solution for projects, Cross Categories Consolidation, graphic design, Others

Application:: Exterior

Design Style:: Modern

Surface Treatment:: PVDF Coated, Anodized, Brushed, Mirror, PE Coated, Printing

Place of Origin:: Guangdong, China

Brand Name:: JINBAISHI

Model Number:: Aluminium Composite Panel

Product Name:: Aluminium Composite Panel

Panel Thickness:: 2mm, 3mm, 4mm, etc

Aluminium Skin Thickness:: 0.018mm - 0.50mm

Panel Width:: 1220mm, 1250mm, 1500mm, etc

Panel Length:: 2440mm, 2500mm, 3050mm, 5000mm, etc

Color:: Solid/Glossy/Metallic/Brush/Mirror/Wooden/Marble, etc

Color Coating:: PE/HDPE/PVDF/FEVE, etc

Protective Film Printing:: OEM accetped

MOQ:: 1x20ft container

Loading Quantity:: 2100pcs/3mm, 1600pcs/4mm, etc

20+Years Experience In Marine

BV Marine Certificate

Lucent by whatsapp +8613503076132

Wall Ceiling Flooring Furniture Seats Solution

Alumetal 10mm aluminum honeycomb core sandwich panel for curtain wal

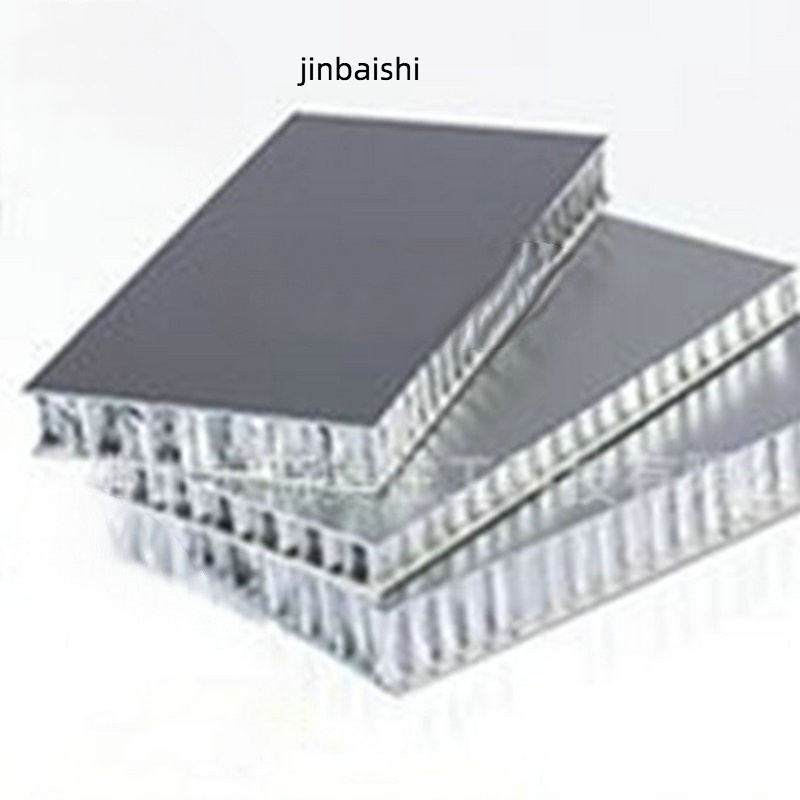

Aluminum Honeycomb Panel

Product Description

Aluminum honeycomb panels are comprised of two layers of aluminum s heets on top and bottom sides with inner aluminum honeycomb structure in the middle . The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.

Specifications Of Aluminum Honeycomb Panel

Aluminum Alloy	AA3003 H18, AA5052 H18
Panel Thickness	4mm, 8mm, 10mm, 15mm, 25mm,32mm Max 500mm
Aluminum Skin Thickness	0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Surface Coating:	PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
Width	1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Length	2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Honeycomb Core Thickness	0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.12mm
Honeycomb Core Cell Size	Micro-Aperture Honeycomb: 1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4 ” (6.35mm), 1/3 ” (8.47mm), 3/8 ” (9.53mm), 1/2 ” (12.7mm), 3/4 ” (19.05mm), 4/5 ” (20.32mm), 1 ” (25.9m)
Honeycomb Core Cell Side Length	Micro-Aperture Honeycomb: 1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge Type	Open Edge, Close Edge or customer's design
