Quick Details
-
Application:
-
Digital CATV Headend,Cable TV,Satellite Digital TV
-
Product name:
-
4 Channel HD MI Video Encoder
-
Nature:
-
H.264 DVB-C RF CATV Modulator
-
Keyword:
-
Digital TV Encoder Modulator
-
Input:
-
4 HD MI input
-
Output:
-
1 DVB-C RF out
-
Modulation:
-
DVB-C and H.264
-
Resolution:
-
1920*1080 60/50i/p, 1280*720 60p/50p
-
Constellation:
-
16/32/64/128/256-QAM
-
Bit Rate:
-
1.0~15Mbps Continuously Adjustable Per Channel
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPS842C
-
Application:
-
Digital CATV Headend,Cable TV,Satellite Digital TV
-
Product name:
-
4 Channel HD MI Video Encoder
-
Nature:
-
H.264 DVB-C RF CATV Modulator
-
Keyword:
-
Digital TV Encoder Modulator
-
Input:
-
4 HD MI input
-
Output:
-
1 DVB-C RF out
-
Modulation:
-
DVB-C and H.264
-
Resolution:
-
1920*1080 60/50i/p, 1280*720 60p/50p
-
Constellation:
-
16/32/64/128/256-QAM
-
Bit Rate:
-
1.0~15Mbps Continuously Adjustable Per Channel
4 Channel HD Video Encoder H.264 DVB-C RF CATV Modulator Digital TV Encoder Modulator
Product Description
Summary

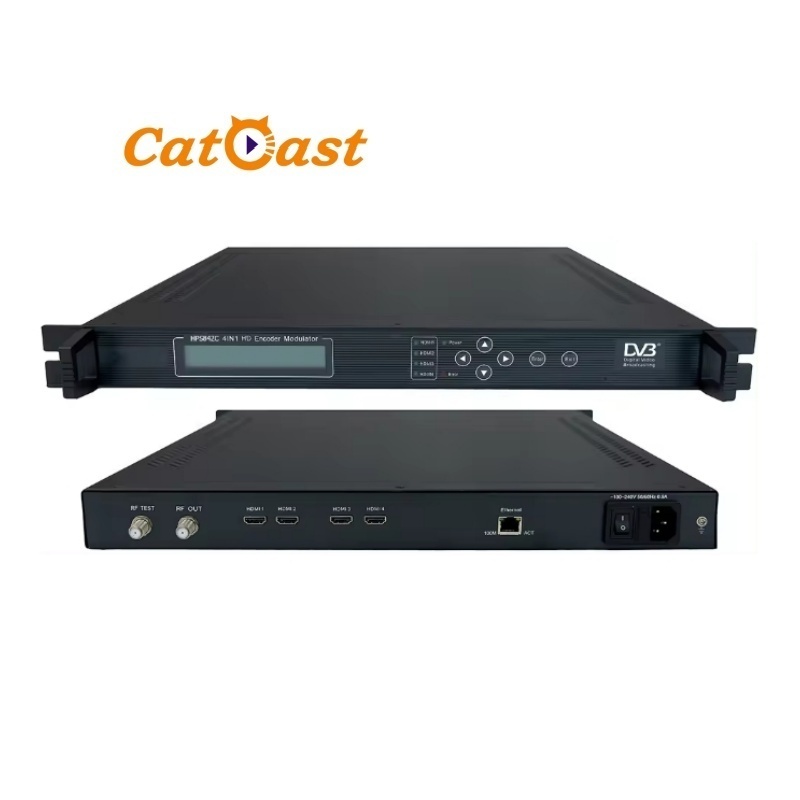

HPS842C 4IN1 HD Encoder DVB-C Modulator supports 4×HD MI input and 1×RF DVB-C output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It suits 1U rack and can be configured by front panel LCD and NMS(network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Key Features
●
Integrated encoder and modulator
● 4×HD MI input
●
1x DVB-C RF out
●
DVB-C RF Range: 47~870MHz
●
Keyboard+LCD control and network management
Specification
|
Input
|
HD MI
|
|
4×HD MI 1.3, support 1080p
|
|
|||
|
Video Coding
|
|
|
4:2:0 encoding H.264 HP@L4 MP@L3
|
|
|||
|
|
|
|
H.264 Adaptive Field Frame (AFF)
|
|
|||
|
|
|
|
H.264 Field-Based (FB)
|
|
|||
|
|
|
|
full HD: 1920×1080×60/50i/p, 1280×720×60p/50p
|
|
|||
|
Standard
|
|
|
ISO/IEC14496-10 (H.264/MPEG-4 AVC)
|
|
|||
|
Bit Rate
|
|
|
1.0~15Mbps continuously adjustable per channel
|
|
|||
|
Audio Coding
|
|
HD MI
|
embedded audio
|
|
|||
|
|
|
Sampling
|
32KHz, 44.1KHz, 48KHz
|
|
|||
|
|
|
Code Rate
|
64, 128, 192, 256, 384Kbps
|
|
|||
|
DVB-C Output
|
|
Frequency Range: 47~870MHz, 1KHz step
|
|
Output Level: 80-110dB
|
|||
|
|
|
Constellation: 16/32/64/128/256-QAM
|
|
Symbol Rate: 5-9Msps
|
|||
|
|
|
Error-Correcting Codes: RS code 188/204
|
|
BER: 0
|
|||
|
|
|
Impedance: 75Ω
|
|
MER: ≥32dB
|
|||
|
|
|
Level Attenuation Range: 0~30dB (0.5dB step)
|
|
|
|||
|
General Features
|
|
Size
|
410mm×280mm×44mm
|
|
|||
|
|
|
Temperature Range
|
0~45°C (operation); -20~80°C (storage)
|
|
|||
|
|
|
Power
|
100-240VAC, 50Hz, 25W
|
|
|||
Principle Chart
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
