Quick Details
-
Max. OT:
-
125℃
-
Rated current and voltage:
-
250V 25A
-
Resistance Between Terminals:
-
Below 50MΩ
-
Min. Diff:
-
11℃
-
Class of temperature characteristics:
-
Normal close / open
-
Tmax:
-
185℃ (Long period) ; 215℃(Short period: Less than 15min)
-
Life Cycle:
-
30000 Times
-
Safety Approval Certificate:
-
CQC, TUV
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Limit of the tolerance( OFF):
-
±3.5℃
-
Limit of the tolerance( ON):
-
±4℃
-
Max. OT:
-
125℃
-
Rated current and voltage:
-
250V 25A
-
Resistance Between Terminals:
-
Below 50MΩ
-
Min. Diff:
-
11℃
-
Class of temperature characteristics:
-
Normal close / open
-
Tmax:
-
185℃ (Long period) ; 215℃(Short period: Less than 15min)
-
Life Cycle:
-
30000 Times
-
Safety Approval Certificate:
-
CQC, TUV

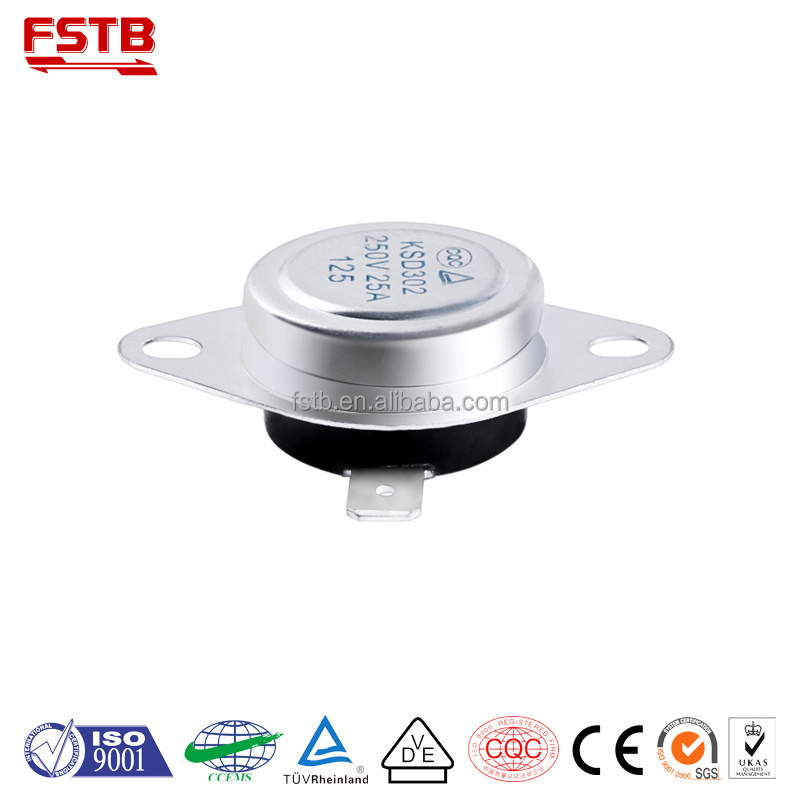

FSTB KSD302 25A electric heater thermostats, (7/8") bimetal thermal
KSD302 series snap-action thermostat is a kind of hermetically sealed high current bimetal thermostat (7/8" disc). It is of single-pole single-throw structure and works under resistive load. Owing to high loading capacity, the product series is appropriately used in high-duty electric appliances to provide overheating protection.
Advantages:
- Easy mounting.
- Rapid heat transmission.
- High durability, high loading capacity.
- No breakdown, no flashover.
- Every heavy-duty thermostat will be tested, extremely high temperature pass rate.
- High precision.
Parameters:
Use |
Temperature control/ Overheat protection |
Appliance |
Heater(heater thermostat) |
Reset type |
Automatic |
Base material |
resist heat resin base |
Amperage |
25A |
Max. Operating Temperature |
125℃ |
Differential |
|
Min. Diff |
11℃ |
Tolerance |
|
Protection
|
IP00 |
Contact material |
Silver/Gold |
Dielectric Strength |
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation
|
With a DC 500V megger, borne DC 500V, the tested value is over 10MΩ. |
Resistance
|
Below 50MΩ |
Temp. characteristics: |
Normal type: OFF temperature higher than ON temperature.(Normal close)
|
Maximum
|
185℃ (Long period) |
Diameter of
|
(7/8″) |
Approvals |
UL/CQC/TUV |
Terminal type |
|
Cover/Bracket |
Dimension of main body:
Safety certificate:
Max. OT |
Life |
250V 25A |
<125°C |
30,000 |
CQC , TUV |
Covers and terminals:
M ajor series of snap-action thermostats are as follows
Series
|
Diameter of bimetal disc
|
Max. operating Temp.
|
Max. |
Switch structure
|
Service purposes
|
rated |
|||||
current |
|||||
KSD301
|
F12.8mm |
280°C
|
16A
|
SPST
|
Temperature control and overheating protection for low-duty electric heating applications.
|
(1/2″) |
|||||
KSD301-U
|
F12.8mm |
280°C
|
16A
|
SPST
|
One shot type fuse for low-duty electric heating applications.
|
(1/2″) |
|||||
KSD302
|
F22.25mm |
125°C
|
25A
|
SPST
|
Temperature control and overheating protection for high-duty electric heating applications.
|
(7/8″) |
|||||
KSD303
|
F12.8mm |
50°C
|
10A
|
SPST
|
Defrosting and temperature compensation for refrigerator.
|
(1/2″) |
|||||
KSD305
|
F22.25mm |
||||
(7/8″) |
|||||
KSD306
|
F22.25mm |
120°C
|
30A
|
DPST
|
Temperature control and overheating protection for electric heating applications such as water heater.
|
(7/8″) |
|||||
KSD307 |
F12.8mm (1/2″) |
220°C |
20A |
SPST |
PTC power cut out for electric heater, commercial appliance |
KSD308
|
F19mm |
100°C
|
16A
|
DPST
|
Temperature control and overheating protection for electric heating applications such as water heater.
|
(3/4″) |
|||||
KSD309
|
F12.8mm |
280°C
|
16A
|
SPST
|
Temperature control and overheating protection for high temperature heating applications.
|
(1/2″) |
|||||
KSD310
|
F19mm |
50°C
|
35A
|
SPST
|
Defrosting for big current refrigerator, air conditioner or other commercial cooling appliances
|
(3/4″) |
|||||
KSD312
|
F19mm |
200°C
|
/
|
DPST
|
Temperature limiter for rice cooker
|
(3/4″) |
|||||
KSD314
|
F19mm |
220°C
|
45A
|
SPST
|
Temperature control and overheating protection for big current heating applications.
|
(3/4″) |
|||||
KSD315 |
F19mm (3/4″) |
125°C |
16A |
DPST |
Manual reset for water heater protection |
Product recommendation:
NOTE: TERMINALS AND COVERS OF THE SNAP-ACTION THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT FSTB THERMOSTATS.
( http://www.thermostat-gb.com/ )
