Quick Details
-
refrigerant:
-
R404A/R507A
-
Compressor:
-
Bitzer
-
Compressor type:
-
Semi-hermetic
-
Color:
-
Blue+Green
-
Cooling capacity:
-
61.8KW
-
Cooling water:
-
19m3/h
-
Cooling Type:
-
Water-cooled
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight:
-
100
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
Air Cooled Condensing Unit
-
refrigerant:
-
R404A/R507A
-
Compressor:
-
Bitzer
-
Compressor type:
-
Semi-hermetic
-
Color:
-
Blue+Green
-
Cooling capacity:
-
61.8KW
-
Cooling water:
-
19m3/h
-
Cooling Type:
-
Water-cooled
-
After Warranty Service:
-
Video technical support
Condensing units are familiar temperature-control devices in refrigerators, air conditioners, heat pumps and chillers. They move energy in the form of heat by compressing a gas known as a "refrigerant," then pumping it through a system of coils and using the air around the coils to heat and cool spaces.

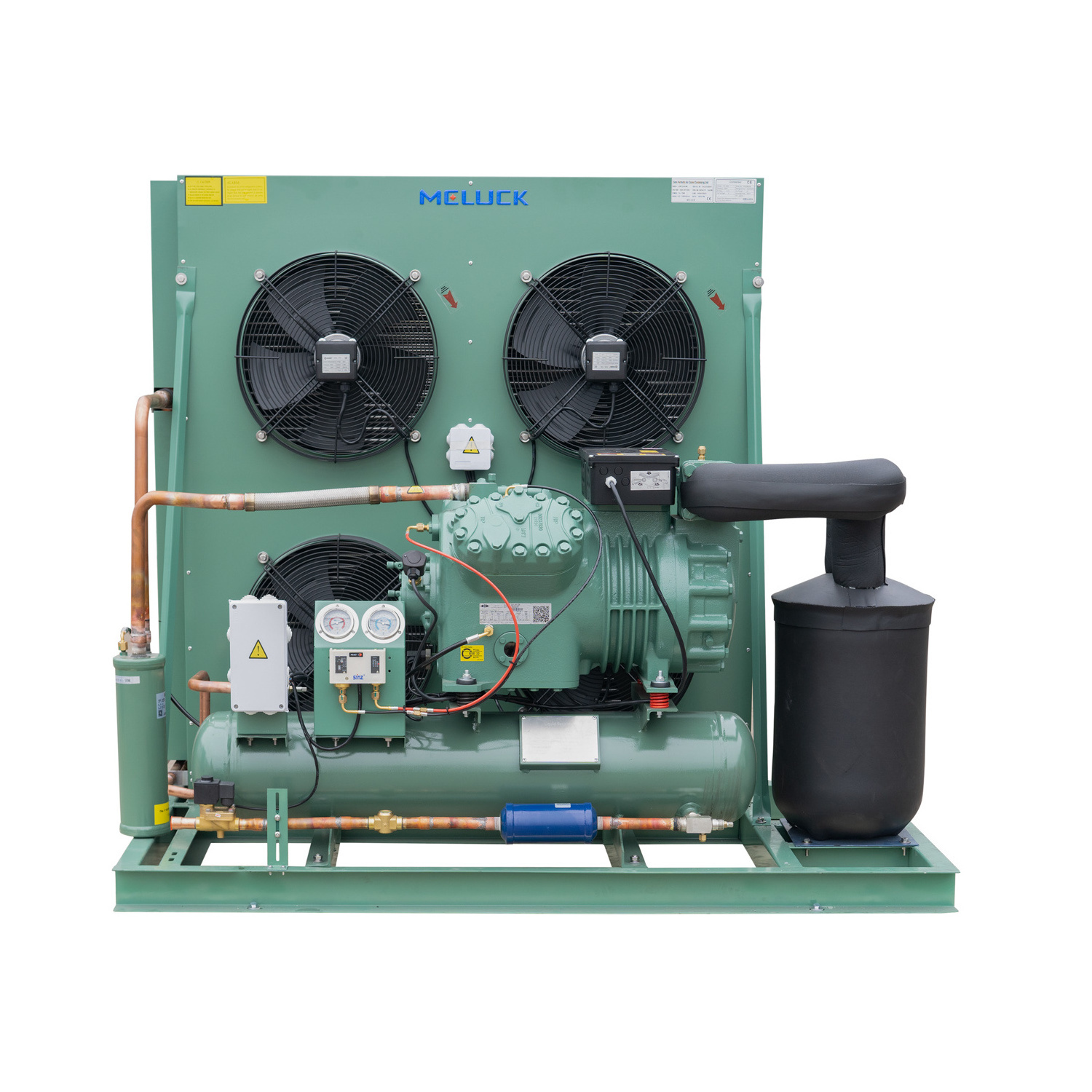

Meluck JZBF series Condensing Unit use original Bitzer ECOLINE reciprocating Semi-hermetic compressor, designed for cold storage chiller room(-10C~5C) 2HP-50HP,freezer room(-15C~-30C)2HP-44HP. Condenser can be air cooled copper tube and aluminum fins or water cooled shell&tube type(with cooling tower).
Chiller room temperature -10C~5C
|
SN |
Model |
Compressor |
Comp Horsepower(HP) |
Cold Room Volume(m³) |
Power Input(KW) |
Condenser Fan QTY |
Dimension(MM) |
|
1 |
JZBF02MY |
2GES-2Y |
2HP |
30m³ |
1.81 |
1 |
620*650*560 |
|
2 |
JZBF02MY |
2FES-3Y |
3HP |
50m³ |
2.25 |
1 |
620*650*560 |
|
3 |
JZBF03MY |
2EES-3Y |
3HP |
65m³ |
2.56 |
2 |
960*680*460 |
|
4 |
JZBF03MY |
2DES-3Y |
3HP |
85m³ |
3.13 |
2 |
960*680*510 |
|
5 |
JZBF04MY |
2CES-4Y |
4HP | 100m³ |
3.84 |
2 |
1060*680*720 |
|
6 |
JZBF05MY |
4FES-5Y |
5HP | 125m³ |
4.17 |
2 |
1300*750*670 |
|
7 |
JZBF06MY |
4EES-6Y |
6HP | 150m³ |
5.34 |
2 |
1300*750*770 |
|
8 |
JZBF07MY |
4DES-7Y |
7HP | 175m³ |
6.3 |
2 |
1300*750*870 |
|
9 |
JZBF09MY |
4CES-9Y |
9HP | 200m³ |
7.51 |
2 |
1280*710*910 |
|
10 |
JZBF12MY |
4TES-12Y |
12HP | 300m³ |
9.28 |
4 |
1280*710*1210 |
|
11 |
JZBF15MY |
4PES-15Y |
15HP | 350m³ |
10.27 |
4 |
1280*750*1460 |
|
12 |
JZBF20MY |
4NES-20Y |
20HP | 450m³ |
12.48 |
4 |
1350*800*1410 |
|
13 |
JZBF25MY |
4HE-25Y |
25HP | 500m³ |
16.89 |
2 |
1150*570*860 |
|
14 |
JZBF30MY |
4GE-30Y |
30HP | 600m³ |
20.1 |
2 |
1150*570*860 |
|
15 |
JZBF35MY |
4FE-35Y |
35HP | 800m³ |
23.9 |
3 |
1050*600*910 |
|
16 |
JZBF40MY |
6GE-40Y |
40HP | 900m³ |
30.1 |
3 |
51050*600*910 |
|
17 |
JZBF50MY |
6FE-50Y |
50HP |
1000m³ |
36 |
3 |
1600*6100*880 |
Freezer room temperature -15C~-30C
| SN | Model | Compressor | Comp HP |
Cold Room Volume(m³) |
Power Input(KW) | Condenser Fan QTY | Dimension(MM) |
| 1 | JZBF02L | 2FES-2Y | 2HP | 20m³ | 1.64 | 1 | 620*650*510 |
| 2 | JZBF02L | 2EES-2Y | 2HP | 20m³ | 1.79 | 1 | 620*650*510 |
| 3 | JZBF02L | 2DES-2Y | 2HP | 20m³ | 2.14 | 1 | 620*650*510 |
| 4 | JZBF03L | 2CES-3Y | 3HP | 30m³ | 2.76 | 2 | 960*680*510 |
| 5 | JZBF03L | 4FES-3Y | 3 HP | 40m³ | 3.06 | 2 | 960*680*510 |
| 6 | JZBF04L | 4EES-4Y | 4 HP | 50m³ | 3.84 | 2 | 1060*680*620 |
| 7 | JZBF05L | 4DES-5Y | 5 HP | 65m³ | 4.41 | 2 | 1060*680*720 |
| 8 | JZBF06L | 4CES-6Y | 6HP | 85m³ | 5.36 | 2 | 1300*750*670 |
| 9 | JZBF09L | 4YES-9Y | 9HP | 100m³ | 6.35 | 2 | 1280*710*910 |
| 10 | JZBF12L | 4PES-12Y | 12HP | 125m³ | 6.88 | 2 | 1280*710*910 |
| 11 | JZBF14L | 4NES-14Y | 14 HP | 150m³ | 8.58 | 4 | 1280*750*1210 |
| 12 | JZBF18L | 4HE-18Y | 18 HP | 250m³ | 12 | 4 | 1280*800*1460 |
| 13 | JZBF23L | 4GE-23Y | 23 HP | 300m³ | 14.27 | 4 | 1350*850*1410 |
| 14 | JZBF28L | 4FE-28Y | 28 HP | 400m³ | 17.13 | 4 | 1350*850*1410 |
| 15 | JZBF34L | 6GE-34Y | 34 HP | 450m³ | 21.8 | 2 | 1150*570*1100 |
| 16 | JZBF44L | 6FE-44Y | 44 HP | 600m³ | 26.2 | 2 | 1050*600*1050 |
