Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HGP4ET1ET1FB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
POE 5 Port Network Switch industrial
-
100Base-TX Port:
-
4*10/100/1000Mbps RJ45 PoE Ports
-
Uplink Interfaces:
-
1*10/100/1000Mbps RJ45 Port
-
Uplink Port:
-
1* Gigabit SFP Uplink port
-
Installation:
-
DIN Rail
-
Power Input:
-
12 to 52V DC redundant power
-
Power Consumption:
-
<10 watts
-
Dimensions (W x D x H):
-
120*87*30 mm
-
Operating Temperature:
-
-40~85°C
-
Warranty:
-
5 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HGP4ET1ET1FB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
POE 5 Port Network Switch industrial
-
100Base-TX Port:
-
4*10/100/1000Mbps RJ45 PoE Ports
-
Uplink Interfaces:
-
1*10/100/1000Mbps RJ45 Port
-
Uplink Port:
-
1* Gigabit SFP Uplink port
-
Installation:
-
DIN Rail
-
Power Input:
-
12 to 52V DC redundant power
-
Power Consumption:
-
<10 watts
-
Dimensions (W x D x H):
-
120*87*30 mm
-
Operating Temperature:
-
-40~85°C
-
Warranty:
-
5 years
Product Description

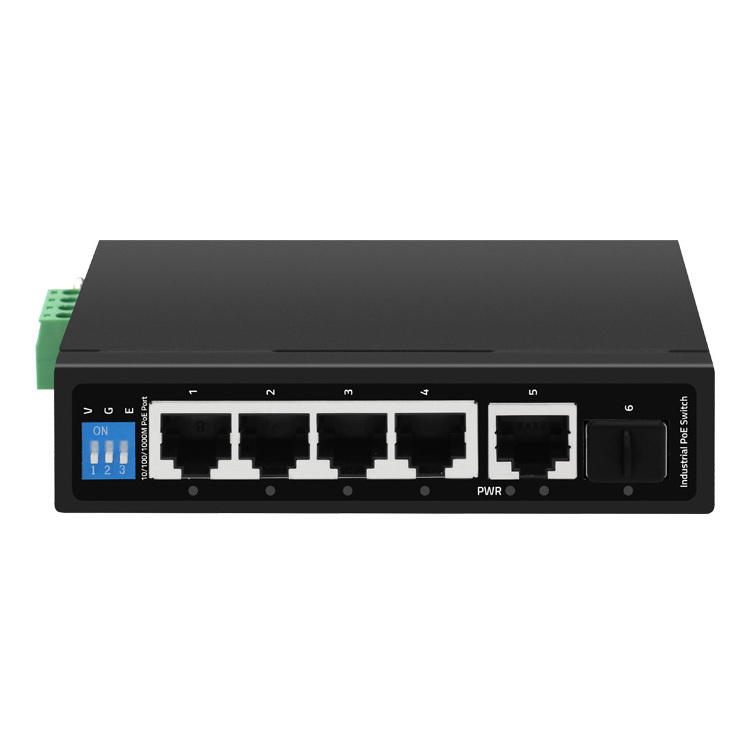

6 Ports Gigabit Intelligent Industrial PoE Switch
SST-HGP4ET1ET1FB intelligent industrial PoE Switch, support 4* Gigabit PoE ports+1* Gigabit uplink Ethernet
port+1* Gigabit SFP port, support DIN-Rail & Wall mounts, support dual power supply input (DC48-55V)，
working temperature -40℃~ +75℃，It has passed the industrial environment certification and complies with
FCC, CE, CCC, RoHS standards.The reliable industrial design can ensure that your automation system runs
without interruption and stability.
This series of industrial POE switches can be widely used in wind, electricity, assembly automation, subway PIS,
power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other
industries,is a green low power industrial PoE Ethernet switch.
Main Features
1.Support 4* Gigabit PoE ports+1* Gigabit uplink Ethernet port+1* Gigabit SFP port.
2.Port 1 support BT90W power supply, support IEEE 802.3af/at/bt standard.
3.Port 2-4 support standard PoE power supply, support IEEE 802.3af/at standard.
4.Working temperature -40℃-75℃, surge protection 4KV, ESD: Air15KV, Contact 8KV.
5.4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input.
6.Support 3 DIP modes: VLAN, Genius, Extend.
7.Support rail and wall mount installation.
Details Images
Specification
|
I/O Interface
|
|
|
|
Power
|
DC48-55V
|
|
|
Ethernet
|
4* Gigabit PoE Ports
1* Gigabit Uplink port 1* Gigabit SFP Port |
|
|
Performance
|
|
|
|
Bandwidth
|
12Gbps
|
|
|
Pack forward rate
|
8.928Mpps
|
|
|
MAC address
|
8K
|
|
|
Jumbo frame
|
9.6Kbytes
|
|
|
Transfer mode
|
Storage & forward
|
|
|
MTBF
|
100000 Hours
|
|
|
Standards
|
|
|
|
Network protocol
|
IEEE802.3
IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
|
|
POE protocol
|
PoE standard: IEEE802.3af /IEEE802.3at
|
|
|
|
Single port max: 15.4 W (IEEE 802.3af)
Single port max: 30 W (IEEE 802.3at)
Single port max: 90 W (IEEE 802.3BT)
|
|
|
|
PoE compatibility: IEEE 802.3af/at self-adaptive
|
|
|
|
PoE port output voltage: DC 48-55V
|
|
|
|
PoE power supply wire core:1/2+ ; 3/6-
|
|
|
Network medium
|
10BASE-T: Cat3, 4, 5 UTP (≤100 m)
100BASE-TX: Cat5 or above UTP (≤100 m) 1000BASE-TX: Cat5 or above UTP (≤100 m) |
|
|
Optical medium
|
Multi-mode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km |
|
|
Certificate
|
|
|
|
Safety certificate
|
CE, FCC, ROHS
|
|
|
Environment standard
|
|
|
|
Working environment
|
Working temperature: -40～75℃
Storage temperature: -40～85℃ Humidity: 5%~95 % (non-condensing) |
|
|
Indicator
|
|
|
|
LED Indicator
|
PWR，1-6 green light
|
|
|
PWR
|
On: Powered on
Off: Powered off |
|
|
1-6 green light
|
On: Link normal
Off: Link off Flashing: Link data transmitting |
|
|
DIP function
|
V,G,E (Up open, down close)
|
|
|
V
|
V: VLAN mode, ports 1 to 4 are isolated and can communicate with ports 5 and 6
|
|
|
G
|
G: Normal mode
|
|
|
E
|
E: Extend mode, ports 1-4 are reduced to 10M and can be extended to 250m
|
|
|
Physical specification
|
|
|
|
Structure size
|
Product dimension: 120*87*30 mm
Package dimension: 175*130*55mm Product N.W: 0.441 KG Product G.W: 0.530 KG (without power) |
|
|
Packaging info
|
Carton MEAS: 540*290*375mm
Packing Qty: 40 PCS Packing Weight: 22.2 KG |
|
|
Power voltage
|
Voltage input: DC48～55V
Power cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1 |
|
|
Packaging list
|
1. Industrial Switch: 1 PC
2. User Manual: 1 PC 3. Certification: 1 PC 4. Pull-arm: 1 PC |
|
Product Application
【
Application Environment】
◆ Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system
integration,etc.
◆Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation,
education and other industries
◆ Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
◆ Real-time monitoring: simultaneous transmission of real-time control signals, images and data
◆Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances
◆ Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system
integration,etc.
◆Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation,
education and other industries
◆ Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
◆ Real-time monitoring: simultaneous transmission of real-time control signals, images and data
◆Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances
