Quick Details
-
Place of Origin:
-
China
-
Inside dimension:
-
20000*5000*5000mm(L*W*H)
-
Outside dimension:
-
20200*5200*5500mm(L*W*H)
-
Base design forming:
-
Frame structure, 8-span gantry frame
-
Wall pane:
-
50mm rock wall panel
-
DOOR:
-
Sheet metal door 6 doors opposite
-
Side lighting:
-
32 groups
-
Pre-filter:
-
G3 grade pre-filter plate filter
-
Ceiling filter:
-
F5 class filter cotton
Quick Details
-
External Size:
-
20200*5200*5500mm(L*W*H)
-
Internal Size:
-
20000*5000*5000mm(L*W*H)
-
Voltage:
-
380V
-
Place of Origin:
-
China
-
Inside dimension:
-
20000*5000*5000mm(L*W*H)
-
Outside dimension:
-
20200*5200*5500mm(L*W*H)
-
Base design forming:
-
Frame structure, 8-span gantry frame
-
Wall pane:
-
50mm rock wall panel
-
DOOR:
-
Sheet metal door 6 doors opposite
-
Side lighting:
-
32 groups
-
Pre-filter:
-
G3 grade pre-filter plate filter
-
Ceiling filter:
-
F5 class filter cotton

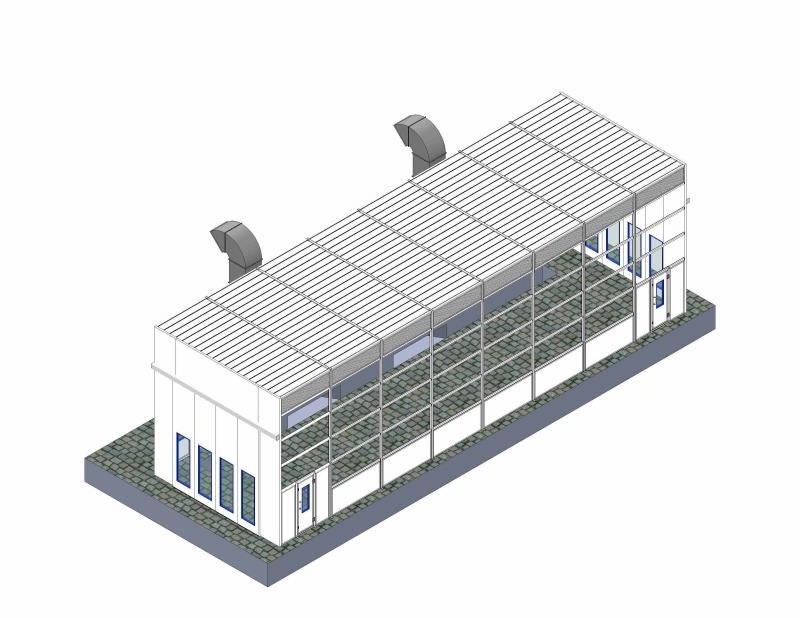

Product Description
Product Features
1.Anti-rust spraying room, polyurethane spraying room, drying room, constant temperature and humidity room,
accept customization for various needs
2.Lifting mobile trolley in the room (optional)
|
Inside dimension
|
20000*5000*5000mm(L*W*H)
|
|
Outside dimension
|
20200*5200*5500mm(L*W*H)
|
|
Base design forming
|
Frame structure, 8-span gantry frame
|
|
Loading capacity of galvanized grating
|
The left and right sides of the room use air collecting boxes for exhaust
|
|
Wall panel
|
50mm rock wall panel, the sides of the wall are reinforced. 0.426mm
|
|
DOOR
|
The sheet metal door has 6 doors, with a track-based universal wheel on the top, an internal keel and an external steel plate.
|
|
Ceiling lighting
|
16 sets of 4*18W ceiling lights, 9 sets of 2*18W flat lights in the middle, 288W, totaling 1312W;
|
|
Side lighting
|
32 groups 2*18W
|
|
Inlet/Exhaust fan power
|
4*11kw* 970 rpm, 380V, 50Hz 50000~6000m³
|
|
Heating Type
|
can choose (electric heating, diesel heating, natural gas heating, etc.)
|
