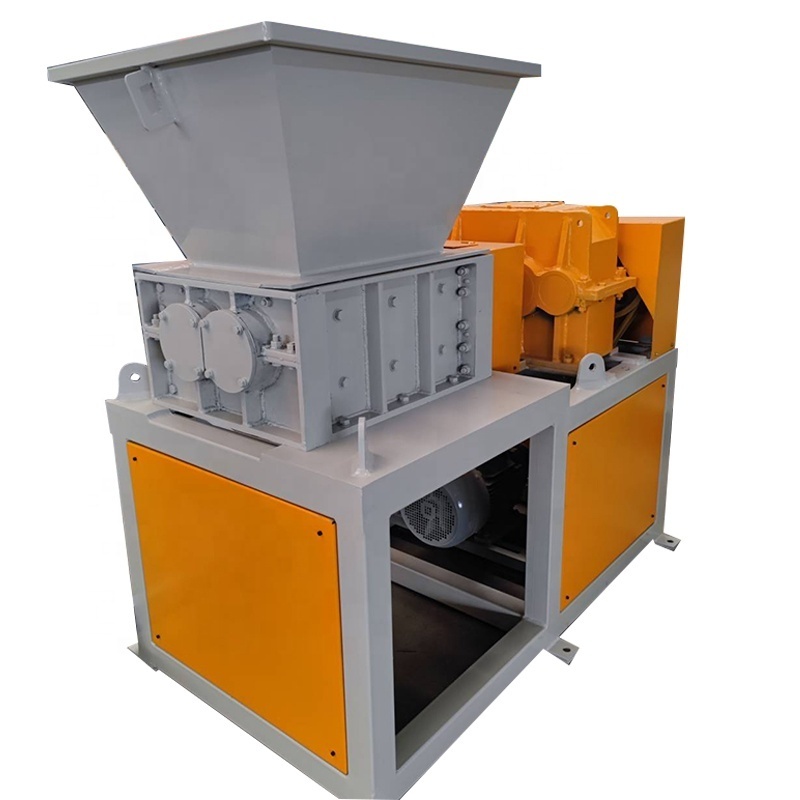

Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder
Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder

Small Plastic Bottle Shredder Machine Wood Glass Shredder Mini Metal Shredder

FOB Reference Price: Get Latest Price
≥1 Sets
US $3910
≥5 Sets
US $2710
≥10 Sets
US $1750
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity (kg/h):
100 - 2500 kg/h
Brand Name:
RD
Power (kW):
7.5
Weight (T):
1.25
Cutter diameter:
80-400mm
Cutter thickness:
20-60mm
Spindle diameter:
80-190mm
Spindle speed (r/min):
8-12
Cutter number:
20-30
Number of cutters (blocks):
20
Main motor Power (KW):
7.5kw*2
Advantage:
High Efficiency Low Energy Consumption
Usage:
Waste Raw Material Shredding
Shaft Design:
Twin Shaft

Quick Details

Max.Production Capacity (kg/h):
2500
Place of Origin:
Henan, China
Machine Type:
double shaft shredder
Production Capacity (kg/h):
100 - 2500 kg/h
Brand Name:
RD
Power (kW):
7.5
Weight (T):
1.25
Cutter diameter:
80-400mm
Cutter thickness:
20-60mm
Spindle diameter:
80-190mm
Spindle speed (r/min):
8-12
Cutter number:
20-30
Number of cutters (blocks):
20
Main motor Power (KW):
7.5kw*2
Advantage:
High Efficiency Low Energy Consumption
Usage:
Waste Raw Material Shredding
Shaft Design:
Twin Shaft
Products Description


Double shaft shredder is a kind of machine used for material coarse crushing, generally used in the crushing or recycling and
reuse industry for processing unprocessed raw materials or waste materials shredder, through the power system to drive the spindle
to drive the blades rotor rotation, through the blades and blades to cut each other, can crush metal, plastic, tires, furniture
and so on.

Working principle

The shredder is cut by the blades on two shafts to meet the requirements of shredding materials, and the size after shredding is the same as that of the shredding blades.The thinner the blade, the smaller the size of the broken material.The more the number of teeth, the longer the shredded material Short.

Double Shaft Shredder Features

1. The motor adopts all-copper core motor, which reduces energy consumption and has a long service life.
2. The cutter is made of special alloy steel, which is strong and durable. The rotary knives is uniquely designed and processed in terms of thickness, shape and arrangement order, with strong shearing force, sharp blades and high pulverizing efficiency.
3. PLC control system can be automatically controlled, equipped with start, stop, reverse and overload automatic reverse control functions to ensure the safety of use.
4. Adopt high torque motor, the machine is equipped with electrical overload protection, suitable for shredding of thick and
fragile materials (such as televisions, washing machines, refrigerator casings, large pipes, pipe fittings, forklift pallets,
rubber tires,Packaging drums, fiber, wood, aluminum, copper, scrap steel, car shells etc.)
