Quick Details
-
Model Number:
-
DMP640
-
Keywor:
-
RF capacitance type liquid level gauge
-
payment term:
-
T/T
-
Size:
-
OEM Size
-
Warranty:
-
3 Months
-
Part Number:
-
Dmp660
-
Output:
-
4~20mA
-
Application:
-
Liquid Tank Detection Appliance
-
Material:
-
Stainless Steel
-
Accuracy:
-
0.5%
-
Range:
-
0-500M(optional)
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
promesstec
-
Model Number:
-
DMP640
-
Keywor:
-
RF capacitance type liquid level gauge
-
payment term:
-
T/T
-
Size:
-
OEM Size
-
Warranty:
-
3 Months
-
Part Number:
-
Dmp660
-
Output:
-
4~20mA
-
Application:
-
Liquid Tank Detection Appliance
-
Material:
-
Stainless Steel
-
Accuracy:
-
0.5%
-
Range:
-
0-500M(optional)

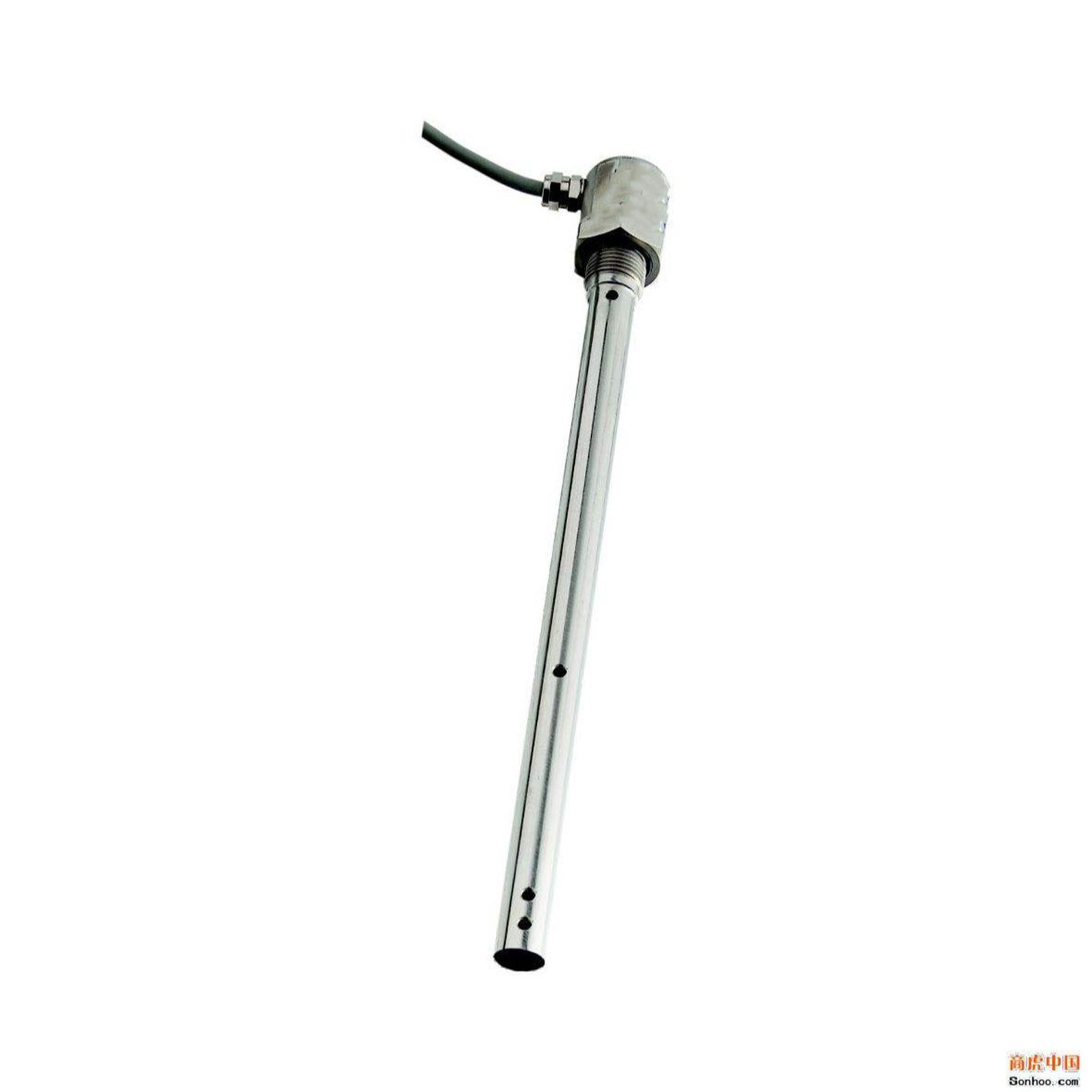

RF capacitance type liquid level gauge
Description of product
DMP inserted liquid level transmitter is suitable for liquid level measurement of various liquids in non-sealed containers below 80 degrees. There are two types of structures: threaded insertion and flange insertion. Corrosion-resistant throw-in type liquid level transmitter uses Hastelloy or F4 material with strong corrosion resistance and good stability, or high stability ceramic capacitor transducer. F4 bushing with strong corrosion resistance of the gas conducting cable jacket is sealed with the outer shell. Capacitive type liquid level transmitter, which provides more high-speed, reliable and accurate data processing and communication. Provides a variety of output modes, including analog quantities of voltage and current, digital RS485 and so on. Output signal can provide a location, multiple locations, or a location plus a temperature output. Detailed multi-functional output mode provide customers with more choices.
Feature
Multi-standard signal output, Convenient for customers to choose/ Anti-corrosion, moisture-proof, dew-proof, leakage-proof function/ High accuracy, good stability/ On-site LED display / Echo processing technology, more real data; acoustic matching technology, better signal radiation; multi-point emission circuit, more reliable measurement results
High measurement range: Wider range, up to 60 m
Technical specifications
|
Range |
0~1mH 2 O ~60mH 2 O |
|
Combined Accuracy |
0.25%FS; 0.5%FS; 1%FS |
|
Repeatability |
Full range of 0.05% |
|
Output signal |
4-20mA (two-wire system), 2MV/V, 0-5V; 0-10V (three-wire system); |
|
Supply voltage |
Standard DC24V,OptionalAC220V |
|
Operating temperature range |
-20-80℃ |
|
Dielectric material |
Joint material is SS, Hastelloy or F4;shell material is SS or hard aluminium optional, |
|
Electrical connector |
Ventilation Cable, Straight-plug installation,, Flange Connection, Plug-in mounting |
|
Pressure connector |
G1/4, G1/2,1/2NPT, 1/4NPT, M20*1.5, flange etc.(customer design) |
|
IP grade |
IP68 |
Product details sensor for machine
Dimension
Example of ordering
Companyintroduction
Changsha Lu osen Automation Technology Co., Ltd. is headquartered in Changsha, Hunan, and the company is based on Promesstec. It is a technology-oriented enterprise specializing in R&D, production and sales services of A.S (automatic sensing technology). Changsha Lu osen is committed to building domestic high-tech sensing technology products, combining German core sensing technology with China's localized market demand, contributing its own meager strength to the domestic sensor market, especially in the field of process automation..
Changsha Lu osen's clients include Fortune 500 companies, government agencies, integrated divisions and distributors to meet the diverse market needs of manufacturing and industry. Changsha Lu osen's products are mainly used in: plastic machinery, chemical fiber machinery, petrochemical, water treatment engineering, power plants, aerospace, air compressors, air conditioners, automobiles, plastics, packaging. Medical, electronics, chemical, rubber, textile and food packaging. All of our customers have a common need: to get reliable products from trusted companies. Our products have been successfully applied in many fields in Italy, the United States, Germany, Canada, the United Kingdom, Austria, Malaysia, India, Pakistan, Singapore, Japan, Australia, etc. This proves that we have reliable products and quality products. service.
Changsha Lu osen will continue to attach importance to the reliability, stability and accuracy of its products, helping customers to achieve tangible needs, win-win cooperation and create value
Package&Shipping
FAQ
Q: When will you give us a response
A: We will contact with you within 1 hour
Q: Can we visit your factory?
A: You will be warmed welcomed to visit our factory
Q: How about the management quality?
A: We have complete quality control system, and all the products will be inspected by QC department before delivery.
Q: How about the payment?
A: T / T,Paypal,WU,Credit Assurance,etc are accepted. You will receive full protection of your order, please click on trade guarantee for more details.
Q: If we make a payment, when will you start the production?
A: As soon as we receive the payment, we will arrange the production.
Certificate
