Quick Details
-
Brand Name:
-
Changde
-
Model Number:
-
LXLGY-50-200
-
Name:
-
Large Caliber water meter
-
Material:
-
Cast Iron
-
Type name:
-
photoelectric direct reading water meter
-
Certificate:
-
ISO4064 ISO9001:2015
-
warranty:
-
1 year
-
Installation:
-
Horizontal
-
Water temperature:
-
≤30℃
-
Working pressure:
-
≤1.0MPa
-
Normal Size:
-
50-200mm
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Changde
-
Model Number:
-
LXLGY-50-200
-
Name:
-
Large Caliber water meter
-
Material:
-
Cast Iron
-
Type name:
-
photoelectric direct reading water meter
-
Certificate:
-
ISO4064 ISO9001:2015
-
warranty:
-
1 year
-
Installation:
-
Horizontal
-
Water temperature:
-
≤30℃
-
Working pressure:
-
≤1.0MPa
-
Normal Size:
-
50-200mm

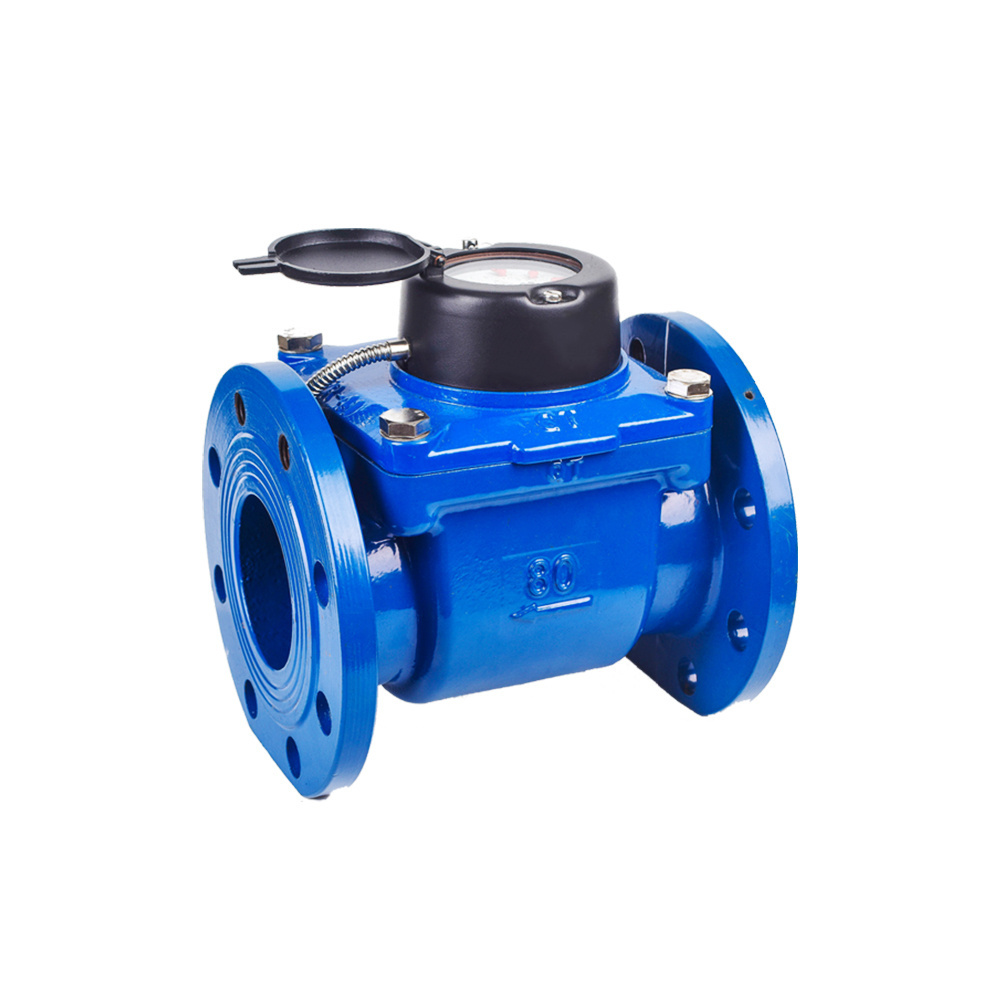

Woltman dry & detachable type Photoelectric direct reading RS485 cold water meter
Brief introduction:
Horizontal woltman dry & detachable type cold water meter is mainly composed of a meter case, a cover, a mechanism counting, a metering mechanism. The metering mechanism and the counting mechanism adopt the form of magnetic transmission, the counting mechanism is partially vacuum sealed, the interior is completely isolated from the outside, and it has the characteristics of anti-freezing, anti-fog and anti-fouling.
Characteristic:
Wide measuring range, accurate measurement, large circulation capacity, small pressure loss, replaceable machine movements, convenient dis - assembly and assembly, technical index up to GB/T778.1~3-2007 standard, strong structure. Long service life, The counter adopts vacuum seal, can keep the indication value clear for a long time, h igh quality anti - corrosion and anti - fouling material used for parts in contact with water , DN50 with flange connection (iron shell).
Can be installed with wireless and wired remote transmission function, the realization of remote meter reading intelligent metering terminal.
The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
