Quick Details
-
Brand:
-
Haiwei/manufacturer
-
Input:
-
HDMI
-
Output:
-
1 channel IP signal
-
APP management:
-
IOS/Andriod
-
Video bit rate:
-
CBR/VBR 16KBIT/S~12MBIT/S
-
Network protocol:
-
HLS,HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast
-
Encoded size:
-
640*360~1920*1080(be able to customize)
-
Audio encoding:
-
AAC MP3 G.711
-
Product name:
-
ip video encoder
-
Application:
-
IPTV/ Video Conference/ Live Broadcast/ CCTV CCAV/ Recording System
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haiwei
-
Model Number:
-
H8118
-
Brand:
-
Haiwei/manufacturer
-
Input:
-
HDMI
-
Output:
-
1 channel IP signal
-
APP management:
-
IOS/Andriod
-
Video bit rate:
-
CBR/VBR 16KBIT/S~12MBIT/S
-
Network protocol:
-
HLS,HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast
-
Encoded size:
-
640*360~1920*1080(be able to customize)
-
Audio encoding:
-
AAC MP3 G.711
-
Product name:
-
ip video encoder
-
Application:
-
IPTV/ Video Conference/ Live Broadcast/ CCTV CCAV/ Recording System

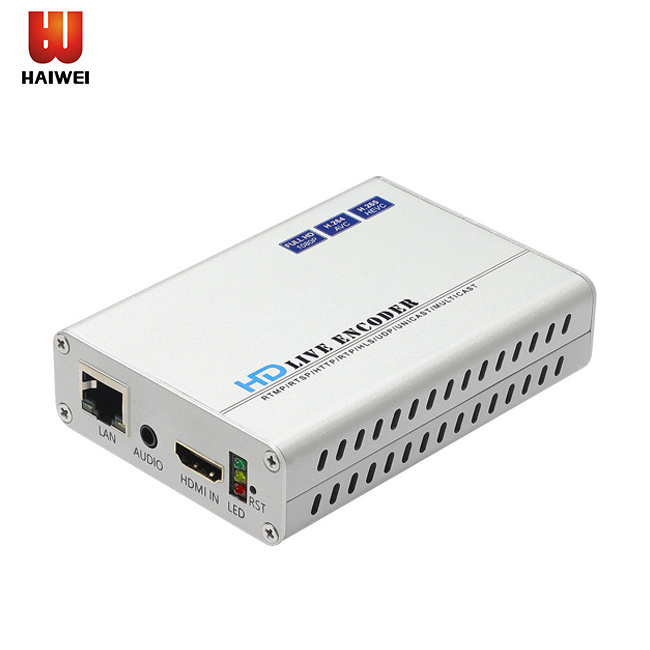

H.265 FHD LIVE ENCODER IPTV
Professional-Class Live Broadcast Encoder
Gigabit Ethernet
Dual H.265 streams output
Optional HDCP function
UP to 1920x1080 @30/60 (2 version)
Line in audio,Output:MP3, AAC, G.711
Bit Control: CBR/VBR 16KBIT/S ~ 12MBIT/S
|
Product model
|
H8118 HD H.264/H.265 HDMI encoder
|
|
|
|
|||
|
Input
|
1 Channel HDMI input, 1 Channel line in audio
|
|
|
|
|||
|
Output
|
1 channel IP signal output
|
|
|
|
|||
|
Input resolution
|
Up to 1920x1080p 60FPS, standard HDMI resolution
|
|
|
|
|||
|
Coding standard
|
H.264/H.265
|
|
|
|
|||
|
Encoded size
|
640*360~1920*1080（Can customize）
|
|
|
|
|||
|
Video bit rate
|
Rate control: CBR/VBR 16KBIT/S~12MBIT/S
|
|
|
|
|||
|
Video frame rate
|
5- 60 fps
|
|
|
|
|||
|
OSD
|
Text, Image
|
|
|
|
|||
|
Input selection
|
1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
|
|
|
|
|||
|
Audio coding
|
AAC/MP3/G.711
|
|
|
|
|||
|
Audio bit rate
|
64Kb/s~384Kb/s
|
|
|
|
|||
|
Sampling rate
|
32000,44100,48000 etc
|
|
|
|
|||
|
IP output
|
1 RJ45 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
|
|
|
|
|||
|
Network protocol
|
HTTP, RTSP, RTMP, RTMPS,ON VIF, HLS, UDP multicast, unicast
|
|
|
|
|||
|
Configuration management
|
User interface, remote upgrade, Andriod APP, multi-one management platform
|
|
|
|
|||
Product Details
Haiwei is leading video streaming solutions provider in China
The H.265 HDMI video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI input supporting H.265 /HEVC high profile /main profile /baseline profile coding format which is streaming by HTTP, RTSP, UDP, RTP, RTMP, RTMPS, ONVIF, HLS, FLV. HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps.
Its high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc. Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.
● High-performance hardware encoding
● Support image parameter settings
● WEB interface, English, and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restoring the factory configuration
● Support SDK, secondary development
Efficient H.265 Encoding
New generation video encoding format, stable and efficient
The high efficiency h. 265/ h. 264 hd video compression technology is adopted, which has the characteristics of stability, reliability, high definition, low bitrate, low delay, etc. The h. 265 encoding efficiency is improved by 40% compared with that of h. 264, and the bandwidth occupation is reduced by 50%, making the image quality clearer without jamming.
H.265 coding efficiency
H.264 coding efficiency
FHD 1080P Live Video Quality
Real-time 720P/1080P@60 frame hd uncompressed picture quality, even complex, fast moving video picture quality, can easily deal with.At the same time, the software can realize recording and support HDMI video signals output by cameras, SLRS, drones, DV, medical devices, set-top boxes and other devices.
Support Most Live Streaming Platforms
Multi-protocol, multi-platform, all-round live marketing
Support HLS/RTSP/RTP/RTMP/RTMPS/P2P,DHCP, ON VIF, HTTP, UDP unicast, multicast and other protocols, as long as the live broadcast platform, support the above protocol, you can be broadcast
APP Remote Management
Managing encoders anywhere in the world via the Internet
1. Download APP “LiveX ”in Apple store or Google play.
2. Background settings as below:
Connection Schematic Diagram
OSD（On-Screen Display）
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
FAQ
1.Q: How fast can I get the quotation?
A: We usually quote within 18 hours after we get your inquiry.
2.Q: Can we do LOGO-Customized product?
A: No problem. please contact with us and send your logo.Shipping within 5 working days when we received payment.
3.Q: Do you offer guarantee for the products?
A: We offer 24 month guarantee for the goods.
4.Q: When is your lead time?
A: 2-7 days after for production comfirmation of order
5.Q: Are you accept Paypal?
A: Yes, we are.
A: We usually quote within 18 hours after we get your inquiry.
2.Q: Can we do LOGO-Customized product?
A: No problem. please contact with us and send your logo.Shipping within 5 working days when we received payment.
3.Q: Do you offer guarantee for the products?
A: We offer 24 month guarantee for the goods.
4.Q: When is your lead time?
A: 2-7 days after for production comfirmation of order
5.Q: Are you accept Paypal?
A: Yes, we are.
