Quick Details
-
Placement:
-
Portable
-
OS:
-
Single Chip Computer
-
Screen Type:
-
None
-
Combination:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
fifotrack
-
Model Number:
-
Q3
-
Size:
-
65*46*17mm
-
GSM Module:
-
Quectel EG915U, Cat 1 Type
-
Frequency Band:
-
4G+2G EU/LA 2 Versions for Global Bands Coverage
-
GPS Module:
-
ZKW AT6558R
-
Internal Battery:
-
1000mAh/3.7V Lithium ion battery
-
Working Time:
-
Standby 16 Days, 5 Minutes Interval 3 Days 11 Hours
-
Motion Sensor:
-
3-axis Built-in Motion Sensor for Tilt/Man down/Fall down Detection
-
Two-way call:
-
Built-in Speaker and Micophone with Loud Voice
-
Waterproof:
-
IP67
-
Certificate:
-
CE/FCC/RoHS
Quick Details
-
Car Fitment:
-
Universal
-
Resolution:
-
None
-
Function:
-
GPS+WiFi+LBS Tracking with SOS Button
-
Placement:
-
Portable
-
OS:
-
Single Chip Computer
-
Screen Type:
-
None
-
Combination:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
fifotrack
-
Model Number:
-
Q3
-
Size:
-
65*46*17mm
-
GSM Module:
-
Quectel EG915U, Cat 1 Type
-
Frequency Band:
-
4G+2G EU/LA 2 Versions for Global Bands Coverage
-
GPS Module:
-
ZKW AT6558R
-
Internal Battery:
-
1000mAh/3.7V Lithium ion battery
-
Working Time:
-
Standby 16 Days, 5 Minutes Interval 3 Days 11 Hours
-
Motion Sensor:
-
3-axis Built-in Motion Sensor for Tilt/Man down/Fall down Detection
-
Two-way call:
-
Built-in Speaker and Micophone with Loud Voice
-
Waterproof:
-
IP67
-
Certificate:
-
CE/FCC/RoHS
Product Description
|
Items
|
Descriptions
|
|
Dimension
|
65*46*17mm
|
|
Weight
|
48g
|
|
GSM Module
|
Quectel EG915U, Cat 1 type
|
|
GPS Chipset
|
ZKW AT6558R
|
|
Charging Voltage
|
DC 5V/1A
|
|
Internal Battery
|
1000mAh/3.7V Lithium ion battery
|
|
Full charging time
|
<2 hours 10 minutes
|
|
Power Consumption
|
Average 2.4mA standby current
|
|
Working hours
|
5 minutes time interval 3 days 11 hours, standby 16 days
|
|
Microphone
|
Built-in microphone
|
|
Speaker
|
Built-in speaker
|
|
Operating Temperature
|
-20℃~70℃
|
|
Humidity
|
5%~95%
|
|
Waterproof
|
IP67 (Testing condition: Immersed in 20cm depth water for 30 minutes)
|
|
LED Light
|
2 LED lights indicate GPS/GSM/Power status
|
|
Button/Switch
|
1 SOS button, 1 power button, 1 call button
|
|
Flash Memory
|
4MB (Buffer storage: GPRS 8000 units, SMS 400 units)
|
|
Motion Sensor
|
3-axis motion sensor (for Tilt/Man down/Fall down/Movement detection)
|
|
Vibration motor
|
Built-in, vibration reminder incoming call/button press
|
|
WiFi
|
2.4 GHz 802.11b (Rx)
|
|
Frequency Band
EU version:
for Asia, Europe, Middle East, Africa, Australia countries
|
2G
GSM: B2/B3/B5/B8
|
|
|
3G
WCDMA: Don't support
|
|
|
4G
FDD-LTE: B1/B3//B5/B7/B8/B20/B28
|
|
Frequency Band
LA version
: for Latin America and Australia countries
|
2G
GSM: B2/B3/B5/B8
|
|
|
3G
WCDMA: Don't support
|
|
|
4G
FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66
|
|
GPS Sensitivity
|
-167dBm
|
|
GPS Start Speed
|
Cold start 30s
Hot start 1s
|
|
Position Accuracy
|
2.5m
|
|
Charging Cradle
|
Available, is sandard accessory
|
|
Charging Port
|
1 magnetic contact port for Configuring/Upgrading/Debugging
|

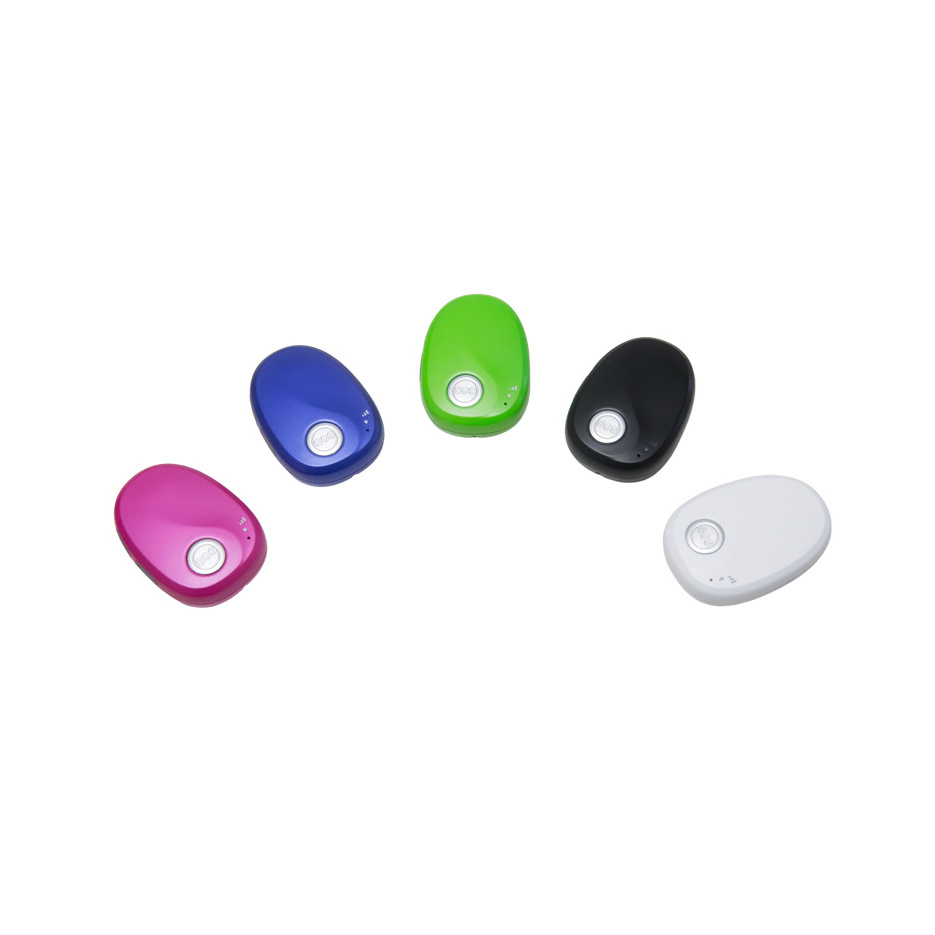

Q3 is a latest generation new portable GPS tracker designed for kids, elders, employees, lone workers, pets, animals, and valuable asset tracking. It keeps a good balance between size and battery working life, the working time is up to 3.4 days at every 5 minutes tracking time interval. Q3 has passed IP67 waterproof standard, which is suitable for outdoor activities. With built-in microphone and speaker, Q3 supports two-way communication between the user and the preset SOS phone guardian.
Powered by the built-in 3-axis motion sensor and excellent firmware algorithm, the Q3 device is able to detect the Tilt/Man down/Fall down events accurately.
Q3 uses original simple and professional FIFOTRACK A03 GPRS PROTOCOL, the
programmers
can integrate this protocol in their own platform and develop APP efficiently.
