Quick Details
-
Dia. of Nail:
-
1.2-6.0 mm
-
Length of Nail:
-
0.4-7.0 inch
-
Capacity:
-
150-380 pcs/min.
-
Power:
-
2.2-11 kw
-
Weight:
-
1200-6500 kg
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Raw material:
-
Low Carbon Steel Wire
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CANDID Nail Production Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Dia. of Nail:
-
1.2-6.0 mm
-
Length of Nail:
-
0.4-7.0 inch
-
Capacity:
-
150-380 pcs/min.
-
Power:
-
2.2-11 kw
-
Weight:
-
1200-6500 kg
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Raw material:
-
Low Carbon Steel Wire
Automatic Z94-3.4NC wire nail making machine manufacturer with high quality
|
Model
Item |
Z94-1.6NC |
Z94-2.8NC |
Z94-3.4NC |
Z94-4.5NC |
Z94-5NC |
Z94-6NB |
|
Range of nail Dia. |
0.9-1.6mm |
1.2-2.8mm |
1.8-3.4mm |
2.8-4.5mm |
3.0-5.5mm |
4.1-6.0mm |
|
Range of nail Length |
9-25mm |
16-50mm |
30-70mm |
50-105mm |
70-150mm |
100-180mm |
|
Output |
450pcs/min |
350pcs/min |
310 pcs/min |
260pcs/min |
200pcs/min |
160pcs/min |
|
Motor power |
1.5kw |
2.2kw |
3kw |
4kw |
5.5kw |
11kw |
|
Weight |
500kg |
900 kg |
1200kg |
1800 kg |
2000kg |
6500kg |
|
Dimension(mm) |
1200*900*900 |
1700*1200*1200 |
2000*1250*1250 |
2350*1500*1350 |
2700*1500*1400 |
3600*2050*2140 |

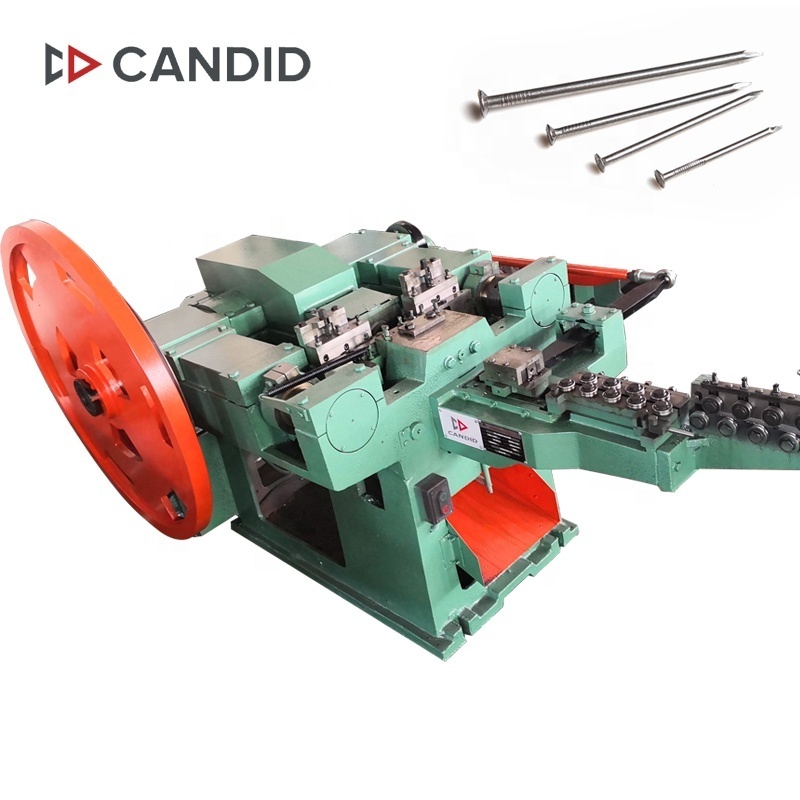

Product Show
The new generation of Z94 series high efficient, low noise with super performance automatic nail making machine is mainly used for manufacturing steel nails . T he machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail, V-nail, corrugated plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation . The manufactured nails can be extensively used in industry, building, repairing and etc.
