Quick Details
-
Product Name:
-

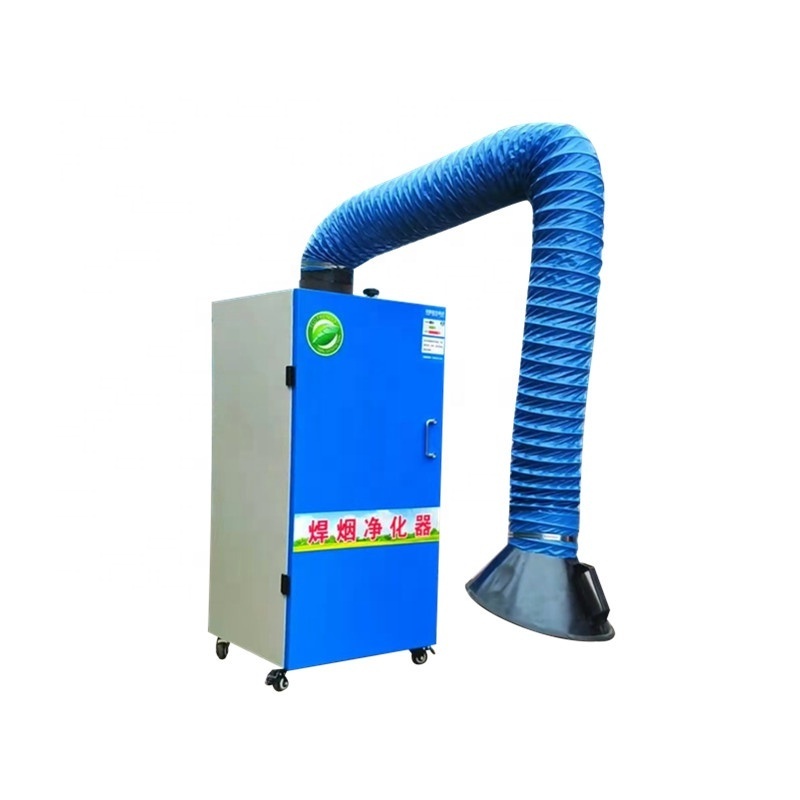

extractor portable welding fume purifier welding smoke filter
-
Function:
-
dust collector
-
Material:
-
Carbon steel spraying
-
Power:
-
1.1kw-3kw
-
ODM OEM:
-
yes
-
Size:
-
Provide Variety Size
-
Air volume:
-
1500-4500m^3/h
-
Application:
-
Industrial
-
Certification:
-
CE Certification
-
Keyword:
-
Cleanliness
Quick Details
-
Weight (KG):
-
234
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Jiutai
-
Product Name:
-
extractor portable welding fume purifier welding smoke filter
-
Function:
-
dust collector
-
Material:
-
Carbon steel spraying
-
Power:
-
1.1kw-3kw
-
ODM OEM:
-
yes
-
Size:
-
Provide Variety Size
-
Air volume:
-
1500-4500m^3/h
-
Application:
-
Industrial
-
Certification:
-
CE Certification
-
Keyword:
-
Cleanliness
Product Description
Working Principle
Step 1
:
Smoke is inhaled by the suction hood through the negative pressure generated by the welding flue gas equipment and enters the equipment through the suction arm.
Step 2 : The flow rate is slowed down, so that the large particles of dust fall, and the air containing fine particles enters the purification chamber.
Step 3 : in the purification chamber, the dust is filtered and separated by the separation of the filter cylinder. At the same time, the flue gas is blocked on the surface by the filter element, and the purified air is discharged by the fan.
Step 4: When the soot is continuously deposited on the surface of the filter element, the pulse automatic cleaning system is opened regularly to automatically clean the equipment.
Step 2 : The flow rate is slowed down, so that the large particles of dust fall, and the air containing fine particles enters the purification chamber.
Step 3 : in the purification chamber, the dust is filtered and separated by the separation of the filter cylinder. At the same time, the flue gas is blocked on the surface by the filter element, and the purified air is discharged by the fan.
Step 4: When the soot is continuously deposited on the surface of the filter element, the pulse automatic cleaning system is opened regularly to automatically clean the equipment.
|
Product name
|
Fume extractor fume extractor gas and smoke extractor for welding
|
|
Application field
|
Metal processing plant, polishing factory, laser cutting factory and so on
|
|
Advantage
|
We have our own production line, which means we can cut costs reasonably while maintaining quality. If you're a trader, that means
you have a bigger profit margin
In addition, we have CE certificate and SABER certification
|
|
After Sales
|
Our technical experts will recommend solutions and free installation suitable for your factory
|
Our Advantages
Optional customization
|
Model
|
Air Volume
|
Equipment Size (MM)
|
Power
|
Arm
|
Arm length
|
|
HY-1
|
1500
|
480*480*900
|
1. 1kw
|
1
|
2m
|
|
HY-1
|
1500
|
500*700*1000
|
1. 1kw
|
1
|
2m
|
|
HY-1
|
2400
|
480*480*900
|
2.2kw
|
1
|
2m
|
|
HY-1
|
2400
|
500*700*1000
|
2.2kw
|
1
|
2m
|
|
HY-1
|
3500
|
700*800*1100
|
3kw
|
1
|
2m
|
|
HY-1
|
5000
|
800*850*1300
|
4kw
|
1
|
2m
|
|
HY-2
|
3000
|
680*520*1050
|
2. 2kw
|
2
|
3m
|
|
HY-2
|
3000
|
750*800*1100
|
2. 2kw
|
2
|
3m
|
|
HY-2
|
3500
|
680*520*1050
|
3. 0kw
|
2
|
3m
|
|
HY-2
|
3500
|
750*800*1100
|
3.0kw
|
2
|
3m
|
|
HY-2
|
5000
|
800*850*1300
|
4.0kw
|
2
|
3m
|
