Quick Details
-
Brand Name:
-
JG
-
Item:
-

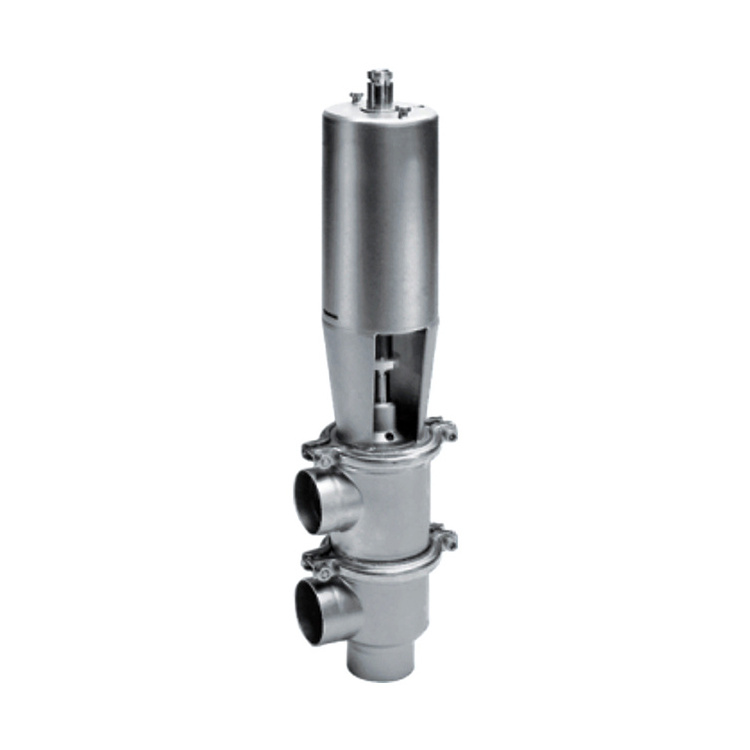

manual control reversing valve flow-regulating valve
-
Surface treatment:
-
mirror finish for manual reversing valve
-
Seal:
-
PTFE + EPDM / EPDM / SILICON / FPM
-
Connection:
-
Thread, flange, welding, clamp
-
Standard:
-
DIN, SMS, 3A, RJT, ISO, IDF
-
Color:
-
steel true colors
-
Controlling:
-
Manual, electric, pneumatic, automatic
-
Body material:
-
SS304,SS316L
-
Certificate:
-
ISO9001 for manual reversing valve
-
Size:
-
Standard Size/OEM
Quick Details
-
Port Size:
-
1.5"
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
RV-01
-
Brand Name:
-
JG
-
Item:
-
manual control reversing valve flow-regulating valve
-
Surface treatment:
-
mirror finish for manual reversing valve
-
Seal:
-
PTFE + EPDM / EPDM / SILICON / FPM
-
Connection:
-
Thread, flange, welding, clamp
-
Standard:
-
DIN, SMS, 3A, RJT, ISO, IDF
-
Color:
-
steel true colors
-
Controlling:
-
Manual, electric, pneumatic, automatic
-
Body material:
-
SS304,SS316L
-
Certificate:
-
ISO9001 for manual reversing valve
-
Size:
-
Standard Size/OEM
Application
The series of valves are majorly used to achieve the purpose of reversing or stopping the medium. They are extensively used in different sanitary industries because of the good sealing performance and cleanness.
Working Principle
The series of pneumatic cut-off reversing valves change the energy which is processed by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of Seal elements.which can control the switch in the inlet of the pipeline. Finally realize the purpose of medium reversing or stopping. The manual cut-off reversing valve series are controllsd by handle, also can reach the purpose of medium reversing or stopping at the end.
Description
Steel Parts: stainless steel 304, stainless steel 316L
Seal: PTFE, O type seal ring
Up diaphragm: NBR diaphragm and standard diaphragm
Down diaphragm: PTFE, EPDM and standard diaphragm
O type ring: NBR diaphragm and standard diaphragm
Remark: when the temperature beyond 95 degree, the diaphragm need choose PTFE, O type ring choose EPDM
Widely used in food, beverage, bioengineering, water treatment, daily chemical, petroleum and chemical industries.
Tank
Pump
Mixer
Valve
Pipe Fitting
Filter
How long have you worked in this field?
Over 15 years.
Can your factory supply samples with free if we need?
Yes, we can.
Can your factory produce products according to our drawings or samples?
Yes, of course we can
What is your factory's biggest advantage?
Technology is our core competitiveness.
How about the delivery time ?
Standard products will be 10-15 days after receive your down payment or full payment.
Are you manufacturer or trading company?
We are a professional manufacturer.
