Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
3688mm*1880mm*2023mm
-
Machine Weight:
-
3650 kg
-
Bucket capacity:
-
0.53 m³
-
Product name:
-
skid steer loader
-
Rated load:
-
1050kg
-
Overturning load:
-
2100kg
-
Operating weight:
-
3650kg
-
Operation mode:
-
Liquid control
-
Traveling speed:
-
11.7km
-
Operating flow rate:
-
83L/min
Quick Details
-
Engine Brand:
-
MITSUBISHI
-
Power:
-
47KW, 62KW
-
Brand Name:
-
CQM
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
3688mm*1880mm*2023mm
-
Machine Weight:
-
3650 kg
-
Bucket capacity:
-
0.53 m³
-
Product name:
-
skid steer loader
-
Rated load:
-
1050kg
-
Overturning load:
-
2100kg
-
Operating weight:
-
3650kg
-
Operation mode:
-
Liquid control
-
Traveling speed:
-
11.7km
-
Operating flow rate:
-
83L/min
Product Description
Skid steer loader is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable multifunctional tools, it can finish all kinds of comprehensive construction demand easily. The appearance, height lifting, weightlifting and driving comfort are all the top-notch loader in the world.
|

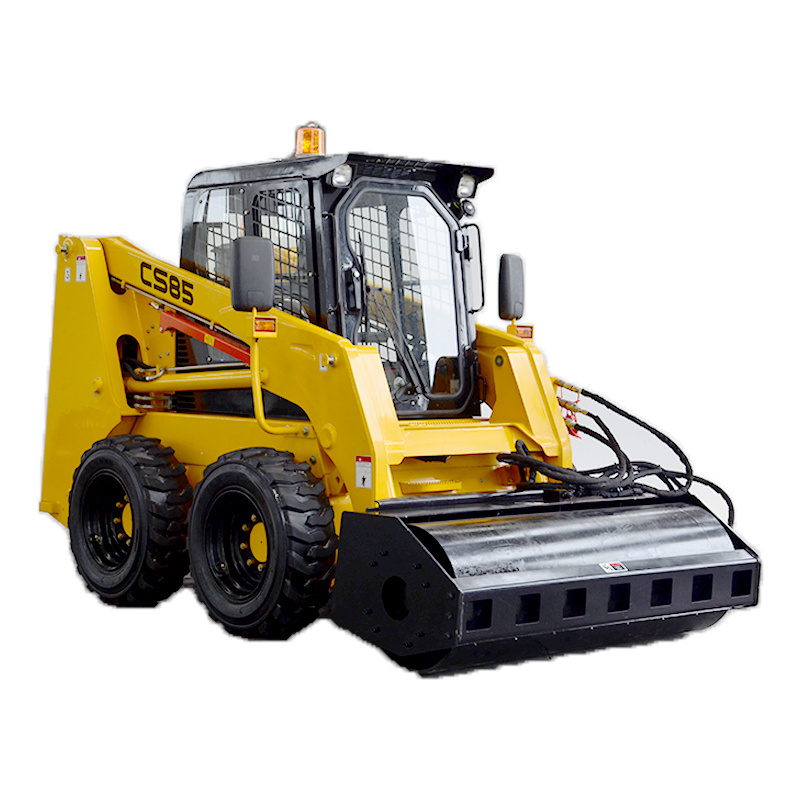

CS85 Skid Steer Loader
|
|
|
|
|||
|
Rated load
|
900kg
|
With bucket length
|
3433mm
|
|||
|
Overtuning load
|
1800kg
|
Unloading height
|
2551mm
|
|||
|
Operating weight
|
3300kg
|
Unloading distance
|
603mm
|
|||
|
Operation mode
|
Liquid contrtral
|
Wheelbase
|
1050mm
|
|||
|
Tire standard
|
12-16.5
|
Departure angle
|
24°
|
|||
|
Traveling speed
|
11.7km
|
Ground clearance
|
202mm
|
|||
|
Operating flow rate
|
83L/min
|
Tire edge width
|
1817mm
|
|||
|
Working pressure
|
210/bar
|
Bucket edge width
|
1880mm
|
|||
|
Operating height
|
4270mm
|
Bucket capacity
|
0.41m³
|
|||
|
Height of bucket dumpling joint pin
|
3269mm
|
Diesel tank capacity
|
88L
|
|||
|
Top height of cab without air conditioner
|
2023mm
|
Hydraulic oil tank capacity
|
70L
|
|||
|
Cab top height with air conditioning
|
2200mm
|
Bucket closing angle
|
99°
|
|||
|
Horizontal height of bucket bottom
|
3090mm
|
Unloading angle
|
38°
|
|||
|
Without bucket length
|
2710mm
|
|
|
|||
|
CS100 Skid Steer Loader
|
|
|
|
|||
|
Rated load
|
1050kg
|
With bucket length
|
3688mm
|
|||
|
Overtuning load
|
2100kg
|
Unloading height
|
2543mm
|
|||
|
Operating weight
|
3650kg
|
Unloading distance
|
652mm
|
|||
|
Operation mode
|
Liquid contrtral
|
Wheelbase
|
1179mm
|
|||
|
Tire standard
|
12-16.5
|
Departure angle
|
24°
|
|||
|
Traveling speed
|
11.7km
|
Ground clearance
|
202mm
|
|||
|
Operating flow rate
|
83L/min
|
Tire edge width
|
1817mm
|
|||
|
Working pressure
|
210/bar
|
Bucket edge width
|
1880mm
|
|||
|
Operating height
|
4295mm
|
Bucket capacity
|
0.53m³
|
|||
|
Height of bucket dumpling joint pin
|
3290mm
|
Diesel tank capacity
|
88L
|
|||
|
Top height of cab without air conditioner
|
2023mm
|
Hydraulic oil tank capacity
|
70L
|
|||
|
Cab top height with air conditioning
|
2200mm
|
Bucket closing angle
|
99°
|
|||
|
Horizontal height of bucket bottom
|
3116mm
|
Unloading angle
|
38°
|
|||
|
Without bucket length
|
2889mm
|
|
|
|||
Product Display
Product Details
Application
Tools with good performance and durability increase productivity in a variety of applications, increasing the versatility and
flexibility of skid steers.
flexibility of skid steers.
Our skid steer loaders can match almost all attachments,like 4 in one bucket,Pallet fork,Snowalde,Grapple bucket,Road sweeper,Rock bucket,bullet type trencher,Auger to digging post hole etc.
