Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Deyi
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
8*1.3*1.7m
-
Power (kW):
-
50
-
Weight:
-
4000 KG
-
Application Field:
-
packaging
-
Raw material:
-
LDPE
-
Machine type:
-
Automatic plastic extruder
-
Foam Ratio:
-
20-18
-
Cooling method:
-
water
-
Finished product:
-
EPE net product
-
Usage:
-
polythene foam net extrusion
-
Name:
-
Extrusion Machine
-
Processing Type:
-
Extruding
-
Keywords:
-
HDPE net Production Line
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
55:1
-
Screw Speed (rpm):
-
545 rpm
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Deyi
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
8*1.3*1.7m
-
Power (kW):
-
50
-
Weight:
-
4000 KG
-
Application Field:
-
packaging
-
Raw material:
-
LDPE
-
Machine type:
-
Automatic plastic extruder
-
Foam Ratio:
-
20-18
-
Cooling method:
-
water
-
Finished product:
-
EPE net product
-
Usage:
-
polythene foam net extrusion
-
Name:
-
Extrusion Machine
-
Processing Type:
-
Extruding
-
Keywords:
-
HDPE net Production Line
Product Description

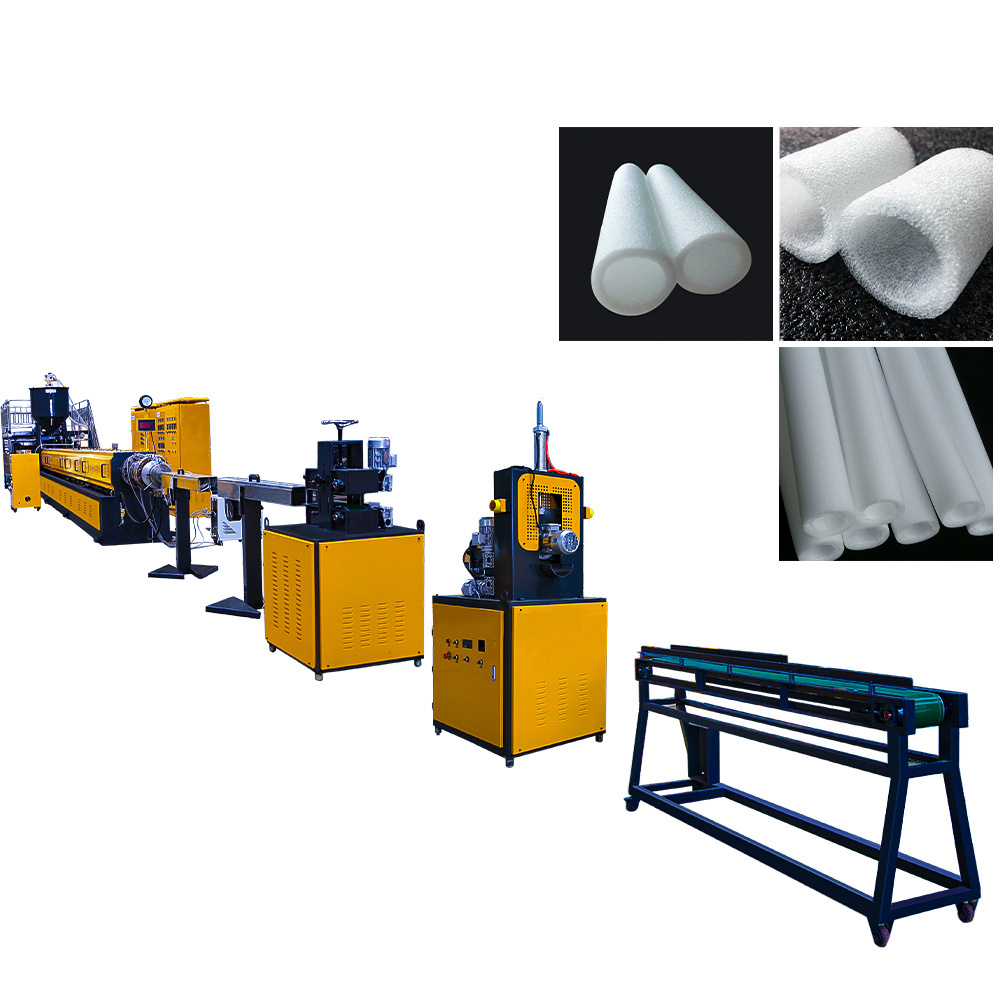

EPE 105 FOAM PIPE EXTRUSION LINE
EPE foam pipe is a kind of new-type foam material,
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. D
ue to its high foam ratio, good elasticity and heat preservation
and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc.
Main Configuration
|
Model
|
Unit
|
DY-75
|
DY-90
|
DY-105
|
DY-120
|
DY-150
|
||||
|
L/D
|
|
55:1
|
55:1
|
55:1
|
55:1
|
55:1
|
||||
|
Screw speed
|
r/min
|
5-60
|
5-60
|
5-60
|
5-60
|
5-60
|
||||
|
Foam rate
|
|
20-48
|
20-48
|
20-48
|
20-48
|
20-48
|
||||
|
Pipe specification
|
mm
|
￠20-50
|
￠30-80
|
￠40-100
|
￠50-120
|
￠50-120
|
||||
|
Rod specification
|
|
￠8-35
|
￠15-50
|
￠18-70
|
￠20-80
|
￠20-80
|
||||
|
Cooling method
|
|
water cooling
|
|
|
|
|
||||
|
Total power
|
kw
|
40
|
90
|
100
|
120
|
120
|
||||
|
Overall size
|
m
|
16*1.3*1.7
|
18*1.6*2
|
20*1.8*2
|
22*2*2
|
22*2*2
|
||||
PRODUCT SHOW
Detaled information
Hopper
#304 Stainless steel
Butane Pump
With Explosion-proof motors
Cooling tube
Heater
1. Cast aluminum
2. thicker than other company
3. with water pipe inner wall
2. thicker than other company
3. with water pipe inner wall
