Quick Details
-
Model Number:
-
G1105-35000D01G1
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25℃+ 85℃
-
Max. Current:
-
0.5A/5A
-
Rating:
-
0.5/5A 250V
-
Mechanical:
-
120 Cycles/minute
-
Electrical:
-
10~30 Cycles/minute
-
Contact Resistance:
-
10~30m Max
-
Terminal Type:
-
wires leads to the bottom
-
Insulation Resistance:
-
100M Min
-
Mechanical Life:
-
2000000 Cycles
-
Electrical life:
-
50000 Cycles
-
Application:
-
Auto Electronics
-
Product Name:
-
Waterproof Sealed Limit Switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G1105-35000D01G1
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25℃+ 85℃
-
Max. Current:
-
0.5A/5A
-
Rating:
-
0.5/5A 250V
-
Mechanical:
-
120 Cycles/minute
-
Electrical:
-
10~30 Cycles/minute
-
Contact Resistance:
-
10~30m Max
-
Terminal Type:
-
wires leads to the bottom
-
Insulation Resistance:
-
100M Min
-
Mechanical Life:
-
2000000 Cycles
-
Electrical life:
-
50000 Cycles
-
Application:
-
Auto Electronics
-
Product Name:
-
Waterproof Sealed Limit Switch
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
G11 Sealed DPDT Limit Micro Switch
Parameters
|
Rating-05
|
0.5A 250VDC 0.5A/5A 250VAC
|
|
Operating Frequency - Electrical
|
10~30 cycles/min
|
|
Operating Frequency - Mechanical
|
120 cycles /min
|
|
Operating Frequency - Mechanical
|
120 cycles/minute
|
|
Contact Resistance(Initiative)
|
30-100mΩMax(Depends on P/Ns,wire resistance exclude)
|
|
Insulation Resistance(at 500VDC)
|
100mΩMin(at 500VDC)
|
|
Dielectric Strength
|
AC 750V RMS (50-60Hz)
|
|
Storage Temperature
|
-25°C~+85°C
|
|
Storage Humidity
|
85%RH Max
|
|
Service Life - Blectrical
|
50,000 cycles (Depends on P/Ns)
|
|
Service Life - Mechanical
|
2,000,000 cycles
|
|
Unit Net Weight
|
Approx.110g(8 wires)
|
G11 Sealed DPDT Limit Micro Switch
Features
- Compact Size and Tight Configuration
- Global safety approvals
-Long life and High Precision and Reliability
- Dust and Water Proof Design (IP67)
- DPDT Double-Break Type
- Variety of Mounting Method Operation Type
- Widely used in Industrial Control etc.
- Nuclear Power Facilities,Automobile Production Line,Power Station Control
- Global safety approvals
-Long life and High Precision and Reliability
- Dust and Water Proof Design (IP67)
- DPDT Double-Break Type
- Variety of Mounting Method Operation Type
- Widely used in Industrial Control etc.
- Nuclear Power Facilities,Automobile Production Line,Power Station Control

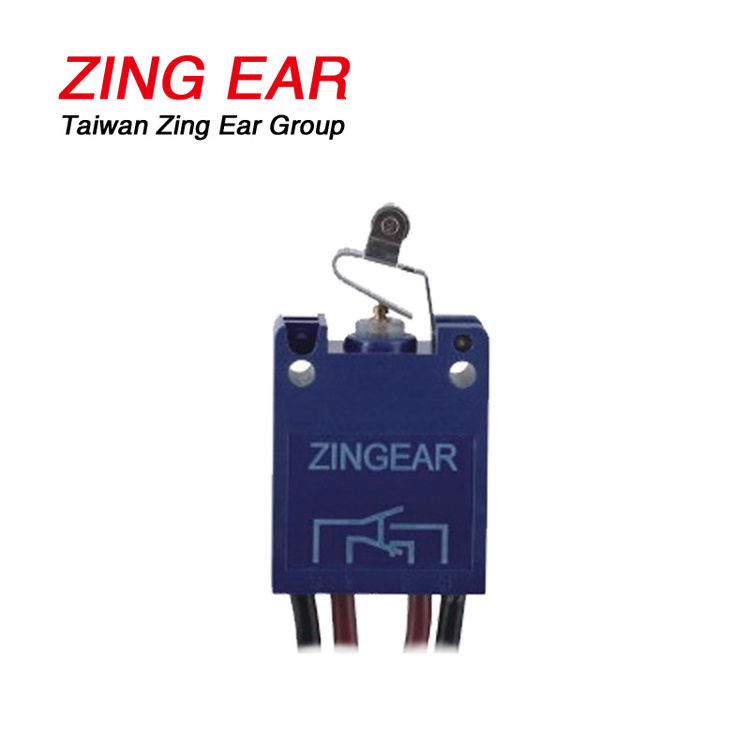

0.5A 250V 25T85 5E4 Big Size DPDT Waterproof Sealed Limit Switch
G1105-35000D01G1
Pictures
G1105-35000D01G1
Microswitch
Drawing
Some of
G11 Sealed DPDT Limit Micro Switch
Application of G11 Serious
Electrcal Actuators
Valve Control
Valve Control
Automobile Prouduction Line
Power Station Control
Industrial Auto Control
Industrial Auto Control
