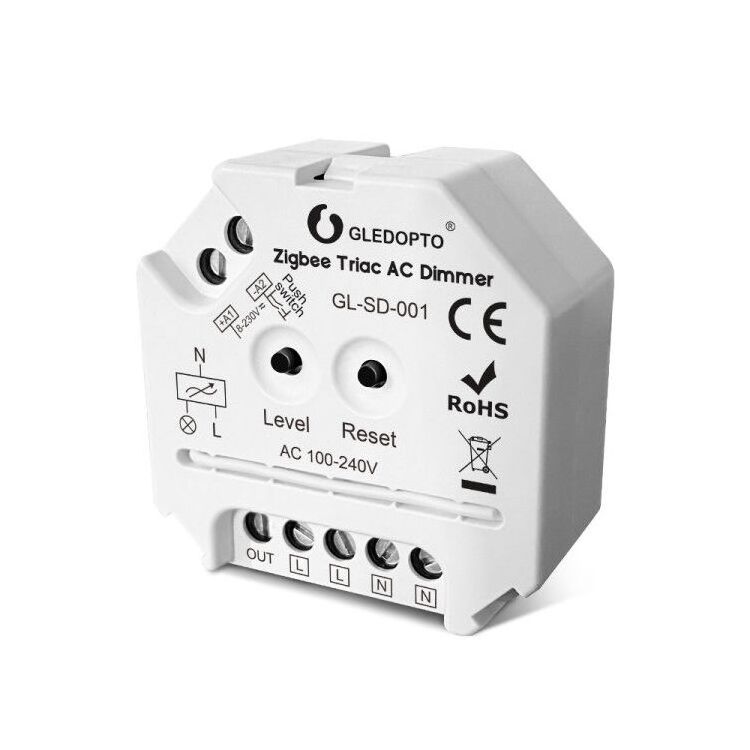

GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control
GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control

GLEDOPTO Zigbee Smart Light Dimmer 220V AC Triac Dimmer Dimmable Push Switch Module2.4G RF Remote Control

FOB Reference Price: Get Latest Price
≥50 Pieces
US $17
≥100 Pieces
US $15.5
≥1000 Pieces
US $14.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product Weight（kg）:
0.095
Place of Origin:
Guangdong, China
Brand Name:
GLEDOPTO
Connection Mode:
Zigbee 3.0 + RF
Name:
Zigbee Triac AC Dimmer
Protocol:
ZIGBEE3.0 + RF
Function:
switching and dimming the brightness
Control way:
smartphone, voice, remote control
Control distance:
30meters
Advantage:
Mesh signal auto-transfer to a larger distance
Input Voltage:
AC100-240V
Frequency:
2.4GHz
Application:
Control Lights
Feature:
RF remote controllable

Quick Details

Warranty(Year):
2-Year
Type:
MANUAL SWITCH
Max. Load Power:
max 400W power loaded
Product Weight（kg）:
0.095
Place of Origin:
Guangdong, China
Brand Name:
GLEDOPTO
Connection Mode:
Zigbee 3.0 + RF
Name:
Zigbee Triac AC Dimmer
Protocol:
ZIGBEE3.0 + RF
Function:
switching and dimming the brightness
Control way:
smartphone, voice, remote control
Control distance:
30meters
Advantage:
Mesh signal auto-transfer to a larger distance
Input Voltage:
AC100-240V
Frequency:
2.4GHz
Application:
Control Lights
Feature:
RF remote controllable
Product Description

GLEDOPTO
ZIGBEE Triac AC Dimmer
100-240V
This controller use two protocol of 2.4GHz Zigbee3.0 and RF combined into one dimmer, which makes it even more convenient for smart control and voice command control.

1.Used for switching and
dimming the brightness of lights loaded.
2.Enable to control ON/OFF of connected load.
Details Images
The controller is designed with 100-240VAC input and output, one channel and maximum 400W output. The ZigBee AC dimmer is available with trailing edge dimming version.

The minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness.
To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
Input and Output with Screw Terminals, Safe and Reliable.
Mini Size, Easy to be Installed into A Standard 86* 86mm Wall Box.
Name
Zigbee Triac AC Dimmer
Type
One channel and maximum 400W output
Function
switching and
dimming the brightness of lights loaded.
Dimmable
YES
Input Voltage
100-240V
Output Current
1.5 A Max
Control methods
smart phone, voice, remote control.
Protocol
2.4GHz ZIGBEE3.0 + RF
Multiple methods control
1.The AC dimmer compatible with universal ZigBee coordinator or gateway.
2. Touchlink Commissioning for paring with max. 30pcs ZIGBEE remote control.
3.Paring with Gledopto 2.4G RF remote control.
How to use
Product Usage
Related Products
Company Introduction
Shenzhen GLEDOPTO Co., Ltd is a wholesale company that manufactures good & high quality ZIGBEE LED controller and led lights, starting from 2005. The company provides the customized products and OEM service. Various new collections and design are coming out each season with the latest design. The factory own the proficient skill and updated machine.
Q1. How to proceed an order for led light?
1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and places deposit for formal order.
4. We arrange the production and delivery date.

Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.

Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Then, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
