- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
1200*800mm
-
Overall Dimensions:
-
Customize
-
Weight:
-
Customized, 1500kg-2900KG
-
Engine power:
-
Diesel ening AC DC
-
Rotation:
-
360°
-
Main Material:
-
Mn
-
Work platofrm:
-
Antiskid board
-
Tire:
-
Pneumatic tire
-
Anti-wind:
-
5 level
-
Max working height:
-
18meters
-
Keywords:
-
Towable boom lift
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORU
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
1200*800mm
-
Overall Dimensions:
-
Customize
-
Weight:
-
Customized, 1500kg-2900KG
-
Engine power:
-
Diesel ening AC DC
-
Rotation:
-
360°
-
Main Material:
-
Mn
-
Work platofrm:
-
Antiskid board
-
Tire:
-
Pneumatic tire
-
Anti-wind:
-
5 level
-
Max working height:
-
18meters
-
Keywords:
-
Towable boom lift
-
Certification:
-
CE ISO9001

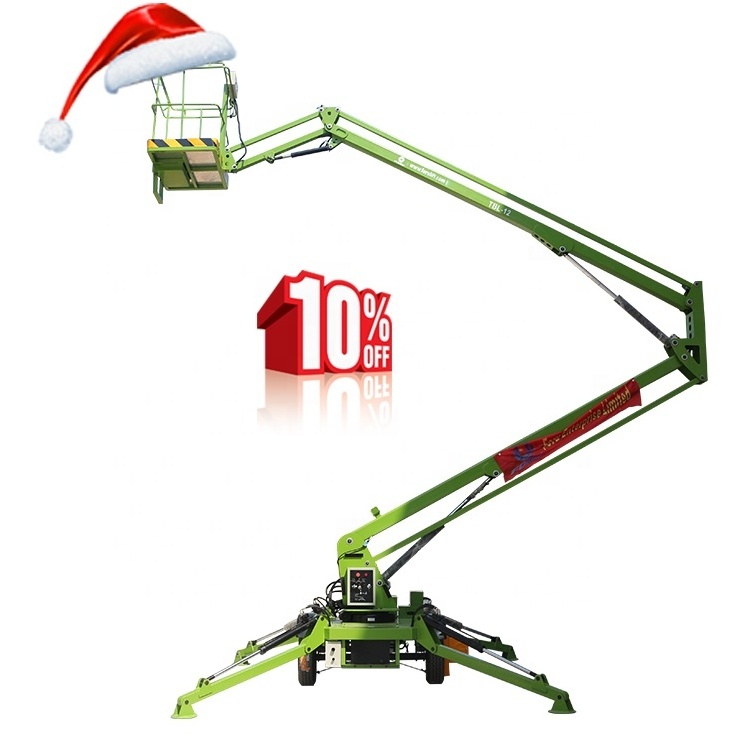

6-18m hydraulic articulating boom lift and spider lift aerial wroking platform
Towable lifts are used for maintenance or aerial work, can also move a short distance.
Trailer mounted boom lift can move upside and down automatically, be operated both in the up basket.Towable boom lift with compact structure of lift could be used in tight space.
|
Model |
Platform
|
Working
|
Working
|
Rotation |
Loading
|
Platform
|
Lifting
|
Anti wind
|
Self
|
|
TBL8 |
8m |
10m |
4.5m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
1500Kg |
|
TBL10 |
10m |
12m |
5m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
1700Kg |
|
TBL12 |
12m |
14m |
6m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
2000Kg |
|
TBL14 |
14m |
16m |
8.5m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
2350Kg |
|
TBL16 |
16m |
18m |
9m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
2600Kg |
|
TBL18 |
18m |
20m |
10m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
4300Kg |
|
TBL20 |
20m |
22m |
12m |
360° |
200Kg |
1200*800mm |
3-5m/min |
≤5 |
4450Kg |
Widely used in construction area, tall building area of the city and other area need aerial working status, boom lifts can provide you convenience and efficiency.
