Quick Details
-
flat working size:
-
1300x2500x1000mm
-
lathe bed structure:
-
heavy duty steel wall structure
-
working table:
-
T-slot with clamps
-
spindle power:
-
12kw /15kw water cooled
-
driving system:
-
Japan YASKAWA servo motor and driver
-
control system:
-
5 axis Syntec
-
application:
-
stone,marble,granite,jade,glass,aluminium
-
option 1:
-
rotary device
-
option 2:
-
3d scanner
-
Certification:
-
CE BV TUV SGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Online support
-
type:
-
3d stone engraving carving machine
-
flat working size:
-
1300x2500x1000mm
-
lathe bed structure:
-
heavy duty steel wall structure
-
working table:
-
T-slot with clamps
-
spindle power:
-
12kw /15kw water cooled
-
driving system:
-
Japan YASKAWA servo motor and driver
-
control system:
-
5 axis Syntec
-
application:
-
stone,marble,granite,jade,glass,aluminium
-
option 1:
-
rotary device
-
option 2:
-
3d scanner
-
Certification:
-
CE BV TUV SGS

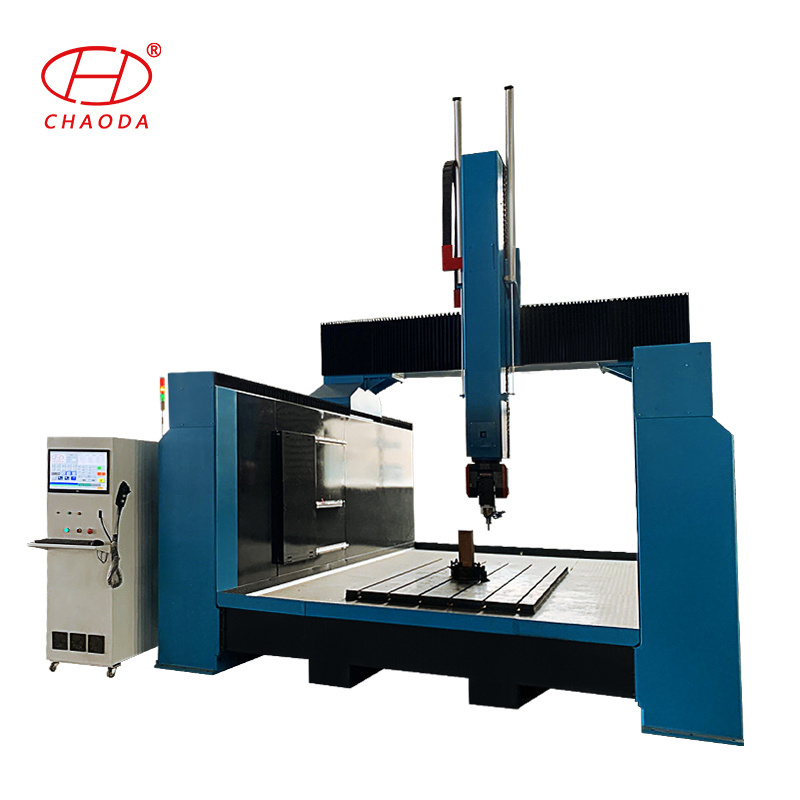

3d stone engraving carving machine / cnc marble statues sculpture making machine
our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis
as well as 3d scanner, laser machine and plasma cutting machine
we supply not only cnc machines !
but also best solution to your specific project !!
Model No. JCS1325-5AXIS
Machine Features
a) All machine parts adopt high configuration and top quality from all over the world, to
make machine with high performance and durability.
b) High z axis design,suitable for large scale three dimensional surfaces machining.
c) Heavy duty steel wall structure,keep machine with good stability and working precision.
d) 5 axis head can process very complex 3d jobs.
Technical Parameter
| Working size | 1300*2500*1000mm (working size could be customized) |
| Lathe bed structure | heavy duty steel wall structure |
| Table | T-slot with clamps,with water tank |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.05mm |
| Max. travelling speed | 0-55000mm/min |
| Max. working speed | 0-20000mm/min |
| Spindle power | 12KW ATC spindle |
| Tool magazine | Linear or disk type auto tool changer,8 tools ability |
| Working mode | Japan YASKAWA servo motor and driver |
| Operating system | 5 axis Syntec with handwheel |
| Command code | G code(*uoo,*nc,*mmg, *plt) |
| Working voltage |
3 phase AC380V 50Hz |
| Running circumustance |
Temperature: 0°C~45°C relative humidity: 30%~75% |
Working Samples
2D 3D engraving, line engraving, cutting, slotting, edge inversing, drilling, polishing
on Artificial stone, Marble,Granite, Ceramic Tile,Milestone,Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Plexiglass,Wood, Plastic,
Eps foam, Aluminum composite panel, Aluminum block, Copper and so on.
Optional Configurations You May Like
>> with rotary device
>> 3d scanner
