Quick Details
-
Voltage:
-
380V 50Hz 3phase
-
Dimension(L*W*H):
-
1391*990*470 mm
-
Weight:
-
1000 kg
-
Name:
-
feed pellets crusher machine
-
Keywords:
-
feed pellet crumble machine
-
Application:
-
Poultry Farm
-
Raw material:
-
large particles
-
Function:
-
Animal Poultry Feed Pellet Machine
-
Capacity:
-
2-4 t/h
-
Spare parts:
-
Roller
-
Pellet size:
-
0.6-1.5 mm or 1-2.5 mm
-
Advantage:
-
Broken evenly
-
Power:
-
4 kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE
Quick Details
-
Max. Capacity:
-
3 ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leabon
-
Voltage:
-
380V 50Hz 3phase
-
Dimension(L*W*H):
-
1391*990*470 mm
-
Weight:
-
1000 kg
-
Name:
-
feed pellets crusher machine
-
Keywords:
-
feed pellet crumble machine
-
Application:
-
Poultry Farm
-
Raw material:
-
large particles
-
Function:
-
Animal Poultry Feed Pellet Machine
-
Capacity:
-
2-4 t/h
-
Spare parts:
-
Roller
-
Pellet size:
-
0.6-1.5 mm or 1-2.5 mm
-
Advantage:
-
Broken evenly
-
Power:
-
4 kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE
Product Overview

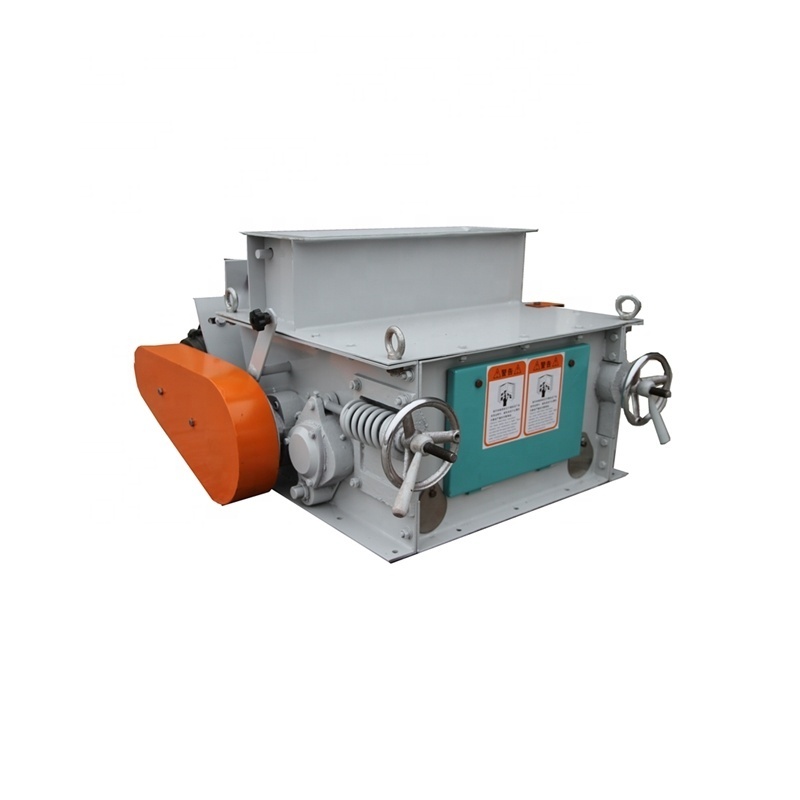

SSLG Series Pellet Crusher Machine
Features
1.Suitable for crushing large particles into small particles of special equipment, can be
broken all kinds of granular
materials into particles of 0.6-1.5 mm or 1-2.5 mm;
materials into particles of 0.6-1.5 mm or 1-2.5 mm;
2.Double roll or three-roll structure,
broken evenly, convenient adjustment efforts;
3.Roll the implementation of the differential rotation of pellets in the middle being squeezed roll, shearing, tearing
action, so as to achieve the desired crushing effect;
action, so as to achieve the desired crushing effect;
4.Unique machine feed hopper and bypass device to the uniform effect, but also played a play does
not need to bypass the broken material effect,
automatically shut down when the bypass flow through the trip switch;
5.High intensity with a narrow V belt rotate
rotation smooth, reliable, easy to operate.
PRODUCT SPECIFICATIONS
|
Type
|
SSLG15*50
|
SSLG15*80
|
SSLG15*100
|
SSLG15*150
|
SSLG20*170
|
|||
|
Roller size(mm)
|
Θ150*500
|
Θ150*800
|
Θ150*1000
|
Θ150*1500
|
Θ200*1700
|
|||
|
Fast roller speed(r/min)
|
725
|
|
|
|
560
|
|||
|
Slow roller speed(r/min)
|
475
|
|
|
|
392
|
|||
|
Capacity(t/h)
|
1--2
|
2--4
|
3--6
|
5--10
|
10--20
|
|||
|
Power(kw)
|
3
|
4
|
5.5
|
7.5/11
|
11-15
|
|||
Detailed Images
Right elevation
Left elevation
Front elevation
Application
Crushing various granular materials into 0.6-1.5 mm or 1-2.5 mm particles.
Crushing various granular materials into 0.6-1.5 mm or 1-2.5 mm particles.
Why Produce Poultry Feed Pellet Need Use Feed Pellet crusher
In the production of feed pellet, the first step is use feed pellet mill produce big diameter and size feed pellet, then use pellet crusher break the pellet into small particles, this production method
not only save the electric power and other resources, it also can improve final pellet production capacity,
so it is the first choice for many feed manufacturers granulating process.
If not use pellet mill directly produce small size feed pellet, we must change small size/aperture ring die,
the feed pellet production capacity will very low, so it will need more power.
Packing & Shipping
Packing Details:
International standard packaging of feed pellet crusher machine in wooden case.
Shipping Time: Shipped in 7-15 days after payment.
Shipping Time: Shipped in 7-15 days after payment.
Related Products
Company Introducion
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipments like
feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line.
With rich experience for many years.
CE Certification
FAQ
Q1: What the main function about this equipment?
A1: This Machine is used to crushing large particles into small particles of special equipment.
Q2:I know litter for this machine, how can I choose most suitable machine?
A2: Please kindly inform:
1. What is your raw material of this feed crusher machine?
2. What is the capacity do you need? (kg/h)
3. What is the size of the final feed pellets do you want?(mm)
A1: This Machine is used to crushing large particles into small particles of special equipment.
Q2:I know litter for this machine, how can I choose most suitable machine?
A2: Please kindly inform:
1. What is your raw material of this feed crusher machine?
2. What is the capacity do you need? (kg/h)
3. What is the size of the final feed pellets do you want?(mm)
