Quick Details
-
Brand Name:
-
OEM/ODM
-
Wireless Connectivity:
-
Zigbee 2.4GHz IEEE 802.15.4
-
Operating Frequency:
-
2.4GHz
-
Range Outdoor/Indoor:
-
100m/300m
-
Zigbee Profile:
-
Home Automation Profile
-
Battery:
-
2*AAA batteries
-
Valtage:
-
3V
-
Battery Life:
-
1 year
-
Diameter:
-
90.2mm
-
Weight:
-
66g
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
Remote Control
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
OEM/ODM
-
Wireless Connectivity:
-
Zigbee 2.4GHz IEEE 802.15.4
-
Operating Frequency:
-
2.4GHz
-
Range Outdoor/Indoor:
-
100m/300m
-
Zigbee Profile:
-
Home Automation Profile
-
Battery:
-
2*AAA batteries
-
Valtage:
-
3V
-
Battery Life:
-
1 year
-
Diameter:
-
90.2mm
-
Weight:
-
66g

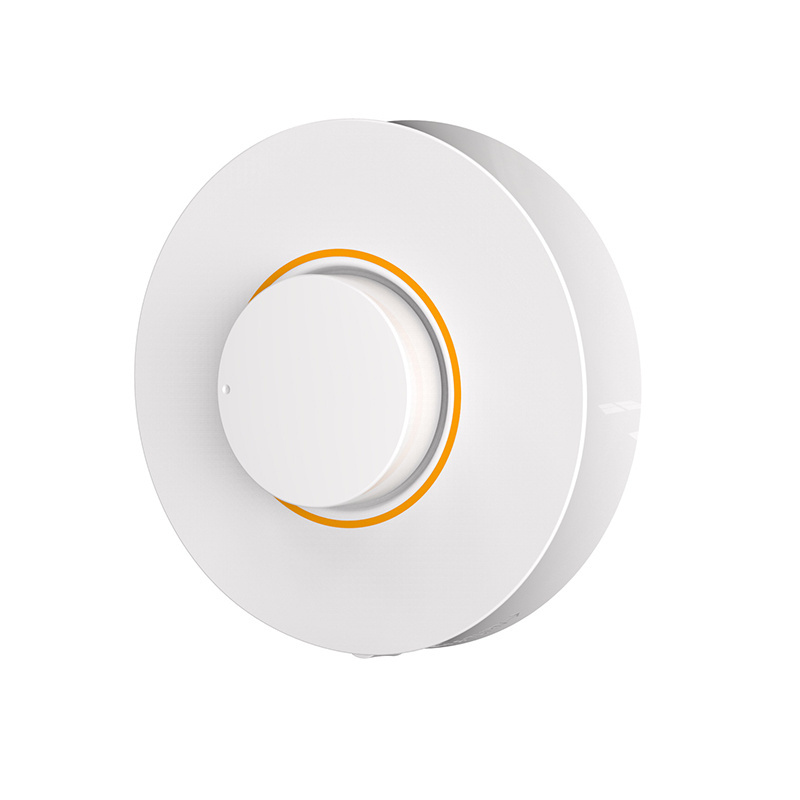

ZigBee dimmer switch home smart lighting control dimmer switch
Introductions
Main Features
- ZigBee HA1.2 compliant
- Wireless on/off switch
- Wireless dimmer control
- Easy to be installed or adhered anywhere in the house
- Extremely low power consumption
Main Specifications
| Wireless Connectivity | ZigBee 2.4GHz IEEE 802.15.4 |
| RF Characteristics |
Operating frequency: 2.4GHz
Internal PCB Antenna Range outdoor/indoor: 100m/30m |
| ZigBee Profile |
Home Automation Profile (optional)
ZigBee Lighting Link Profile (optional) |
| Battery |
Type: 2 x AAA batteries
Voltage: 3V Battery Life: 1 year |
| Dimensions |
Diameter: 90.2mm
Thickness: 26.4mm |
| Weight | 66g |
Multi view
Any home can be SMART if you want,system module in us:
- Energy ( Smart Plug, Din rail, Load Control, Power Clamps)
- Comfort ( HVAC Thermostat, Fan coil thermostat, AC control etc)
- Security ( Door/window sensor, smoke detector, multi-sensors etc)
- Lighting ( LED bulb, Relays, Smart plug, wireless dimmer switch etc)
- Video (IP camera)
Q1. How can I return this device to default factory settings?
A1: Please use a pin key tool to press and hold the reset button for
ten seconds (the
LED indicator will flash 3 times in three seconds
and flash again 3 times in 10 seconds).
Q2. Can I use this device to control a CCT tunable LED bulb
without a
gateway and the mobile app?
A2: Yes. But the LED bulb needs to be based on standard ZigBee
Lighting Link profile
such as LED622. If you have a LED622, please use this device and follow the
instructions below.
Note: Before you proceed, please return all the devices to default
factory setting.
(1) Place the SLC603 Dimmer Switch near to the LED622, press and
hold the reset
button of the SLC603 Dimmer Switch for about three seconds until the LED flashes
green three times.
(2) If pairing is successful, the LED bulb will flash several times.
