Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET BR 09 20, class 1
-
Type:
-
Other heat insulation materials, Other Heat Insulation Materials
-
Material:
-
Rubber foam, rubber
-
Product Name:
-
High quality air conditioning fire proof rubber foam sheet
-
Color:
-
Black
-
Density:
-
38-40kg/m3
-
Thickness:
-
9mm
-
Width:
-
1.2m
-
Length:
-
20m
-
Raw materials:
-
NBR and PVC
-
Certificate:
-
ISO9001
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET BR 09 20, class 1
-
Type:
-
Other heat insulation materials, Other Heat Insulation Materials
-
Material:
-
Rubber foam, rubber
-
Product Name:
-
High quality air conditioning fire proof rubber foam sheet
-
Color:
-
Black
-
Density:
-
38-40kg/m3
-
Thickness:
-
9mm
-
Width:
-
1.2m
-
Length:
-
20m
-
Raw materials:
-
NBR and PVC
-
Certificate:
-
ISO9001

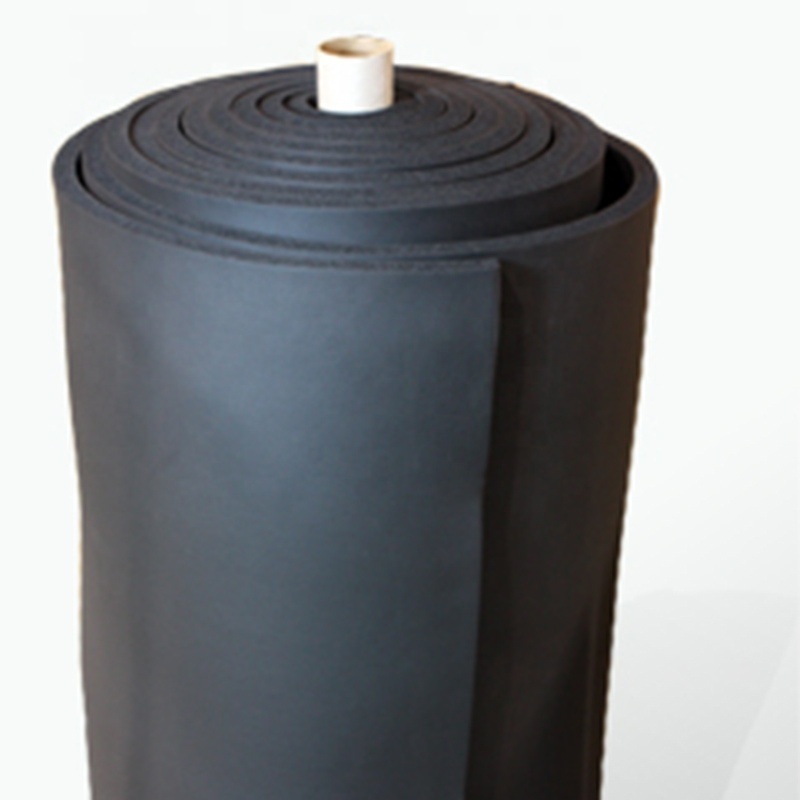

United Insulation® Class1 rubber foam sheet is a flexible and light weight elastomeric nitrile rubber material designed for thermal insulation. UET rubber foam insulation is generally black in color, other colors are available upon request. The product comes in tubing, roll and sheet form .The extruded flexible tubing are specially designed to fit the standard diameters of copper, steel and PVC piping. Sheets are available in standards precut sizes or in rolls.
- Excellent acoustic insulation also can reduce noise and sound transmitting
- Non-corrosive, durable and flexable
- Moisture resist ant, fire resistan
- G ood strength to resist deformation
- Rubber
F
oam pipe and sheet insulation factory
- Export with high reputation
- Excellent thermal insulation--very low thermal conductivity coefficients
- Via ISO, SGS qualificat
ion
and BS476,KS,UL,ASTM,FM certificate.
UET rubber foam insulation is an expanded closed cell structure provides the ideal and most efficient vapor barrier for the prevention of condensation or frost formation on cooling systems, chilled water and refrigerant lines.
UET rubber foam insulation also prevent retards heat loss for hot water plumbing and heating, dual temperature piping and solar systems. It protects pipes by acting as a vibration damper and giving protection against corrosion by atmospheric and industrial environment
UET rubber foam insulation with its inherent flexibility makes it ideally suited for the insulation of large surface area such as tanks, irregular shaped vessels, air-ducts and large diameter pipes .
Metal Building Rubber Insulation Products Data
|
Standard Specification of Sheet |
|||||||
|
Thickness |
6mm |
9mm |
13mm |
16mm |
19mm |
25mm |
32mm |
|
Length |
30m |
20m |
14m |
12m |
10m |
8m |
6m |
|
Width |
1m ,1.2m ,1.5m |
||||||
Note: Customized products are available on consult.
Class 1 Rubber Foam Insulation Technical Index
|
Item |
Unit |
Specification |
Standard |
|
Density |
kg/m³ |
≤95 |
GB/T 6343 |
|
Oxygen index |
% |
≥32 |
GB/T 2406 |
|
SDR |
≤75 |
GB/T 8627 |
|
|
Conductivity factor Average temperature -20 ℃ ,0 ℃ ,40 ℃ |
W/(m•k) |
≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 |
|
Water absorption ratio in vacuum |
% |
≤10 |
GB/T 17794-2008 |
|
Crack resistance |
N/cm |
≥2.5 |
GB/T 10808 |
|
Compression resilience ratio Compression ratio 50% Compression time 72h |
% |
≥70 |
GB/T 6669-2001 |
|
Anti-ozone Ozone pressure 202mpa 200h |
Not cracking |
GB/T 7762 |
|
|
Aging resistance 150h |
Slightly crumpling ,no cracks, no pin holes ,not deforming |
GB/T 16259 |
Established in 2005, United Insulation Limited is a manufacturer of insulation materials and construction systems. Nowadays with the idea of environmental protection, United Insulation Limited achieved to become a comprehensive enterprise in conjunction with domestic famous manufactures to develop devices renovate technology and promote market.
United Insulation products have covered most of the oversea market with the outstanding products considerate service and the fast logistic system. We have lots of business partners throughout the world, North America, Central and South America, Oceania, East Asia, South Asia, Central Asia, Southeast Asia, the Middle East, North Africa and some parts of Europe.
1. Standard Packing Packing Material: Woven Bag Packing Type: Vacuumed Packing Brand: UNITED INSULATION 2. Customized Packing Packing Material: OPP Film Woven Bags Packing Type: Vacuumed Packing Brand: Authorized OEM
