Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE, ROHS, TUV, IEC,VDE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HISUN
-
Model Number:
-
HS0301-4KW
-
Output Voltage (V):
-
220V/230V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24 Hours
-
Specification:
-
Normal or Customized
-
Panels Warranty:
-
30 Years
-
Inverter warranty:
-
10 Years
-
Daily Generating Capacity:
-
60-2500kwh
-
System Type:
-
Grid Tied
-
Mounting Structure:
-
Hot Dip Galvanized Fabricated
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion, NONE
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE, ROHS, TUV, IEC,VDE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HISUN
-
Model Number:
-
HS0301-4KW
-
Output Voltage (V):
-
220V/230V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24 Hours
-
Specification:
-
Normal or Customized
-
Panels Warranty:
-
30 Years
-
Inverter warranty:
-
10 Years
-
Daily Generating Capacity:
-
60-2500kwh
-
System Type:
-
Grid Tied
-
Mounting Structure:
-
Hot Dip Galvanized Fabricated
Product Description
Specification
|

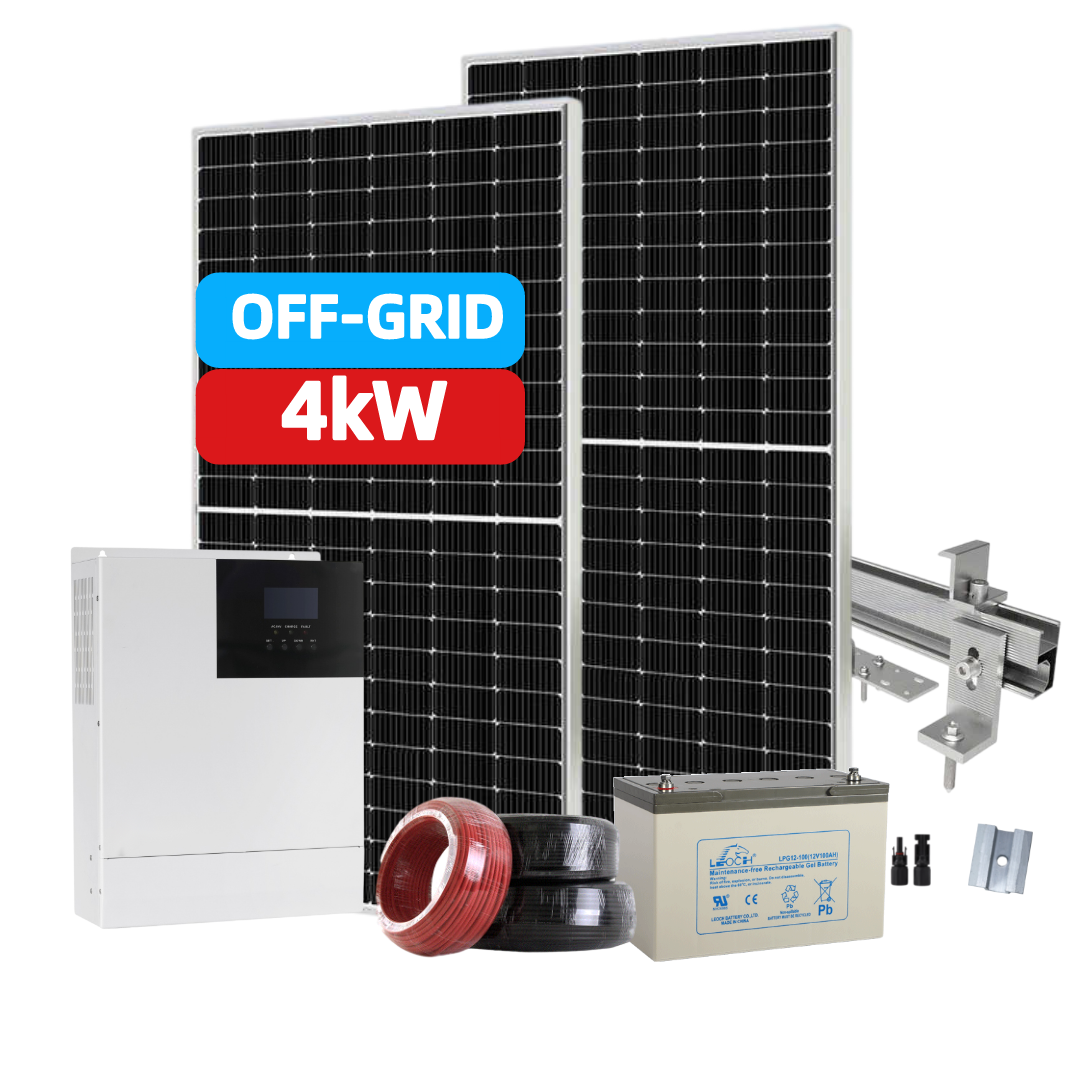

Parts List Of Off-Grid Solar System 4kw
|
|
|
|
|||
|
Daily Power Generation: 9.8kwh，Battery Capacity: 4.8kwh (Average effective light is 4H/day)
|
|
|
|
|||
|
Item No.
|
Product Name
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
410W Half PERC Mono Panels
Size: 1722*1134*30mm, Voc: 37V, Vmp: 30.8V
|
6 Pcs
|
|||
|
2
|
Inverter
|
HF4840S60, MPPT Voltage Range:60-115V, Battery Voltage Range: 40-60V, Single phase 230V
|
1 Set
|
|||
|
3
|
Mounting System
|
Customized
|
1 Set
|
|||
|
4
|
Battery
|
12V100AH Lead acid battery (LiFePO optional)
|
4 Set
|
|||
|
5
|
PV Combined Box
|
NA
|
1 Set
|
|||
|
6
|
System Accessories
|
PV Cables, Installation Instructions, etc
|
1 Set
|
|||
