Quick Details
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongmei
-
Weight:
-
1500 kg
-
Dimension(L*W*H):
-
3400*1100*1700mm
-
Model:
-
HBTS20 Concrete Pump
-
Max.concrete convey capacity:
-
15m³/h
-
Max.pumping pressure:
-
10Mpa
-
Rated power:
-
30kw
-
Convey vertical distance:
-
120m
-
Convey horizontal distance:
-
250m
-
Max.particles diameter:
-
30mm
-
Hydraulic oil tank volume:
-
200L
-
Distribution valve form:
-
S pipe valve
-
Diameter of discharge port:
-
100mm
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
250M
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongmei
-
Weight:
-
1500 kg
-
Dimension(L*W*H):
-
3400*1100*1700mm
-
Model:
-
HBTS20 Concrete Pump
-
Max.concrete convey capacity:
-
15m³/h
-
Max.pumping pressure:
-
10Mpa
-
Rated power:
-
30kw
-
Convey vertical distance:
-
120m
-
Convey horizontal distance:
-
250m
-
Max.particles diameter:
-
30mm
-
Hydraulic oil tank volume:
-
200L
-
Distribution valve form:
-
S pipe valve
-
Diameter of discharge port:
-
100mm
Products Description
Introduction of
Mortar Concrete Pump Construction Machine With Cheap Price From Factory Diesel Trailer Pumps For Sale
1. Using advanced smooth s pipe valve reversing: can meet the transportation of fine stone concrete or commercial fine stone concrete, it is not suitable to block the pipe;zmwm02
2. Spectacle plate and cutting ring: high hardness and wear-resistant alloy material, longer life;
3. High export pressure: it can meet the transportation requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil cooling adopts air cooling system: the cooling effect is good, the use is simple, and it is not easy to pollute the oil;
5. Adopting stepless manual variable displacement: it can meet the different requirements of many users for the discharge speed;
Product Paramenters
Parameters of Mortar Concrete Pump Construction Machine With Cheap Price From Factory Diesel Trailer Pumps For Sale
|
|
Unit
|
HBTS20
|
HBTS30
|
HBT40
|
HBT60
|
HBT80
|
|
Max.concrete convey capacity
|
m³/h
|
15
|
25
|
35
|
60
|
80
|
|
Max.pumping pressure
|
Mpa
|
10
|
10
|
10
|
13
|
18
|
|
Rated power
|
KW
|
30
|
40
|
45
|
75
|
110
|
|
Convey vertical distance
|
m
|
120
|
120
|
120
|
150
|
250
|
|
Convey horizontal distance
|
m
|
250
|
250
|
250
|
300
|
800
|
|
Max.particles diameter
|
mm
|
30
|
30
|
40
|
40
|
60
|
Concrete transmission and use are generally divided into: HBT60, 80 concrete pump for piling and hitting the building, ground and floor heating, 15, 20, 30 fine stone concrete pump for fine stone.
Motor concrete pump
: HBT60-13-90------HBT (trail concrete pump), 60 (maximum pumping efficiency 60 m³ /h), S (S-tube dispensing valve); 13 (outlet concrete maximum Pressure 13Mpa; 90 (motor power 90Kw)
Diesel concrete pump:
HBTS60-13-112R HBT (trailed concrete pump), 60 (maximum pumping efficiency 60 m³ /h), S (S-tube dispensing valve); 13 (maximum pressure of outlet concrete 13Mpa; 112 (motor Power 112Kw) R (diesel engine)
Details Images

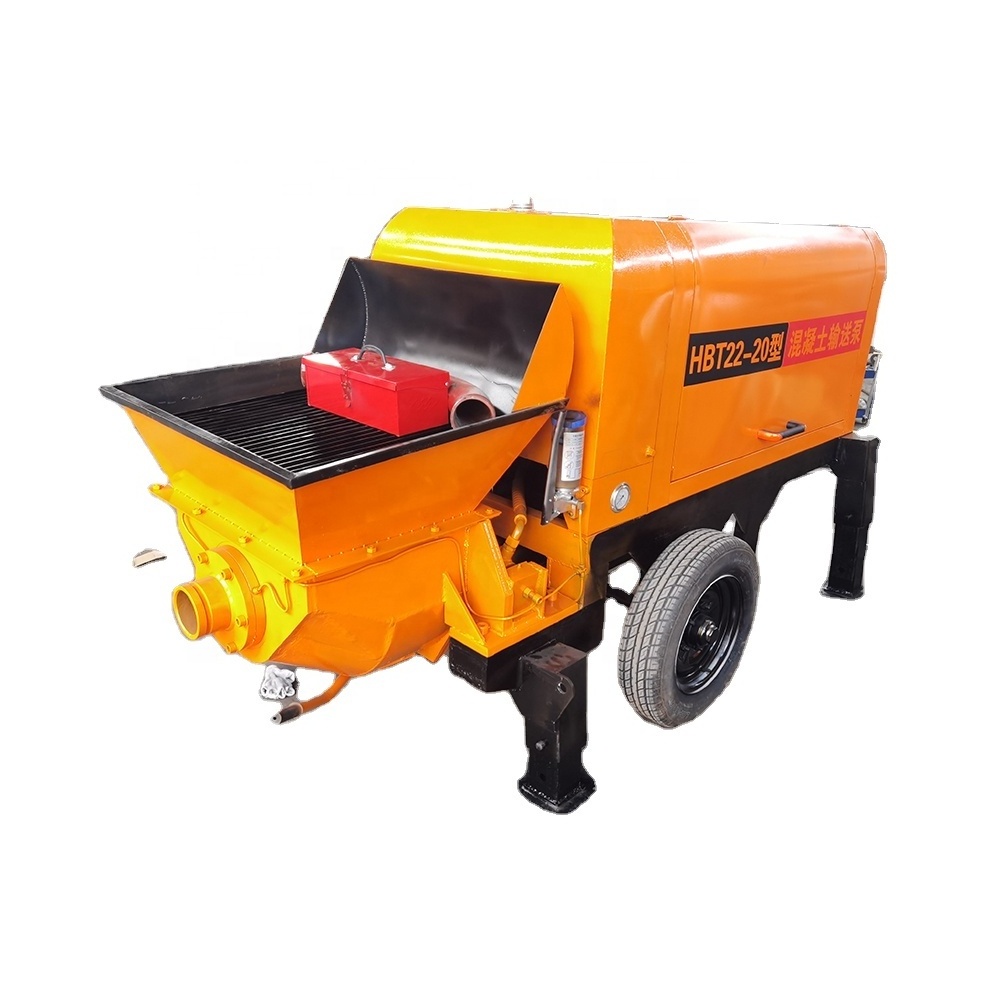

Photos of Mortar Concrete Pump Construction Machine With Cheap Price From Factory Diesel Trailer Pumps For Sale
FAQ
Q: What Payment terms would you accept?
A: Normally we accept UC, or TAT 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25/35 days after receiving the down payment.
Q: What services would you offer if I buy from you?
A: Our trained Professional service team offers high quality in time service in a very friendly way.
For a good customer experience, the content of presales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
