Quick Details
-
Brand Name:
-
XQD
Quick Details
-
Weight (KG):
-
50
-
Core Components:
-
other
-
Place of Origin:
-
China
-
Brand Name:
-
XQD

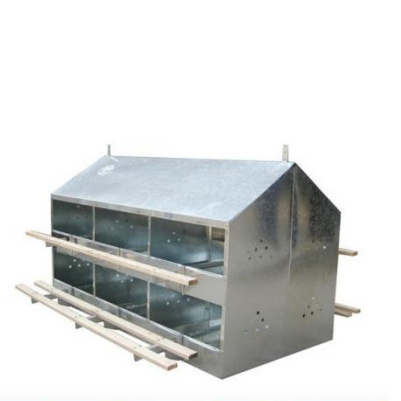

Automatic Breeder Hen Laying Nest Box
Products Specification
|
Big Cell Laying Nest Box
|
|
Small Cell Laying Nest Box
|
|
||
|
Material
|
Hot Dip Galvanized Steel
|
Material
|
Hot Dip Galvanized Steel
|
||
|
Type
|
Double Side and Single Side
|
Type
|
Double Side and Single Side
|
||
|
Capacity
|
160 birds
|
Capacity
|
128 birds
|
||
|
Hole
|
4 cells
|
Hole
|
16 cells
|
||
|
Size
|
2000mm*1060mm*890mm
|
Size
|
2400mm*850mm*600mm
|
||
Products Display
Automatic Laying nest box each parts:
1- egg collection system, which includes egg collection table and egg belt drive motor.
2- egg nest+egg belt. egg, which includes egg nest room, egg nest bed, and egg belt.
3- interval channel, which is to be beneficial for the chicken to cross, which can improve chicken density.
4- nestbed overture system, which includes a drive motor and flip axis and other accessories.it can control egg nest bed raise and down. When chickens are still in the nest room. we can raise egg bed to expel them outside.
5- end transmission system, can clean the egg belt, keep it cleaner.
6- electric control box, it can control egg collection system and nestbed overture system. we can set timing. for example, we can set 8:00 am, when this time arrives, the egg collection system will work. Of course, we can control by manual
2- egg nest+egg belt. egg, which includes egg nest room, egg nest bed, and egg belt.
3- interval channel, which is to be beneficial for the chicken to cross, which can improve chicken density.
4- nestbed overture system, which includes a drive motor and flip axis and other accessories.it can control egg nest bed raise and down. When chickens are still in the nest room. we can raise egg bed to expel them outside.
5- end transmission system, can clean the egg belt, keep it cleaner.
6- electric control box, it can control egg collection system and nestbed overture system. we can set timing. for example, we can set 8:00 am, when this time arrives, the egg collection system will work. Of course, we can control by manual
Ventilation Hole
Egg Collection Table
Grass Imitation Plastic Pad
Nest Box Main Body
Features:
1. The automatic egg nest can set on/off time every day automaticly, and adjust the egg belt speed, improve the automatic control,
intelligent management level.
2. The final purpose for use automatic egg nest is producing more high quality eggs, creating more benifits.The enclosed is one
set egg datas of two poultry house which a large breeding farm offered us in the process of using our automatic egg nest. The
datas proved that hatchable egg rate, ground egg rate, dirty egg rate, broken egg rate all performed excellent.
3. Up and down nestbed overturn system, for driving the hens out from the nest at night by automatic up the nestbed, avoid the
hens sitting and brooding in nest, affect appetite and egg production.
1. The automatic egg nest can set on/off time every day automaticly, and adjust the egg belt speed, improve the automatic control,
intelligent management level.
2. The final purpose for use automatic egg nest is producing more high quality eggs, creating more benifits.The enclosed is one
set egg datas of two poultry house which a large breeding farm offered us in the process of using our automatic egg nest. The
datas proved that hatchable egg rate, ground egg rate, dirty egg rate, broken egg rate all performed excellent.
3. Up and down nestbed overturn system, for driving the hens out from the nest at night by automatic up the nestbed, avoid the
hens sitting and brooding in nest, affect appetite and egg production.
Related Products
Breeder hen chain feeding system
Include Feed trough,Feed grill,Chain,Motor,Feed Stock Hopper,Electric Control Box,Feed trough connect and feed trough stand
24 holes Manual Nest Box
Material:hot dip galvanized steel,275g/m2Thickness:0.5-1.0mm.
Capacity:96 birds
Capacity:96 birds
Broiler pan feeding system
feed lines for broilers is solid and reliable through the application of high quality materials and virgin plastics.
Bangchi feed pan is impact-proof and is also extremely resistant to the different types of cleaning/des infection/chemical
products used on poultry farms.
Bangchi feed pan is impact-proof and is also extremely resistant to the different types of cleaning/des infection/chemical
products used on poultry farms.
Broiler nipple drinking system
1.Drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2.All the metal parts are hot galvanized for rust prevention.
3.Provide the right amount of water for their climate and house conditions.
2.All the metal parts are hot galvanized for rust prevention.
3.Provide the right amount of water for their climate and house conditions.
Cooling Pad function:
When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms
Exhaust Fan function:
Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for
your chickens, ensuring your broilers provide
maximum production.
your chickens, ensuring your broilers provide
maximum production.
Foggy system
1) Pump: 1.5kw/2.2kw
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
Environment Control system
Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.
Option 2: Our own brand, also with good function.
