Quick Details
-
Brand Name:
-
Liaoyuan
-
Model Number:
-
CPL-3210, CPL-3220
-
Work Time (h):
-
24H/day
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE
-
Warranty:
-
12 months
-
Color:
-
Black
-
Voltage:
-
12v/24v
-
Product name:
-
Solar charge controller
-
Protection:
-
Reverse Connect/ Over Load
-
USB Output:
-
2 USB: 2.1A
-
Charge mode:
-
MPPT Solar Charge Model
-
Display:
-
LCD Screen
-
Rated Current:
-
10A/20A
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Liaoyuan
-
Model Number:
-
CPL-3210, CPL-3220
-
Work Time (h):
-
24H/day
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE
-
Warranty:
-
12 months
-
Color:
-
Black
-
Voltage:
-
12v/24v
-
Product name:
-
Solar charge controller
-
Protection:
-
Reverse Connect/ Over Load
-
USB Output:
-
2 USB: 2.1A
-
Charge mode:
-
MPPT Solar Charge Model
-
Display:
-
LCD Screen
-
Rated Current:
-
10A/20A
Product Description

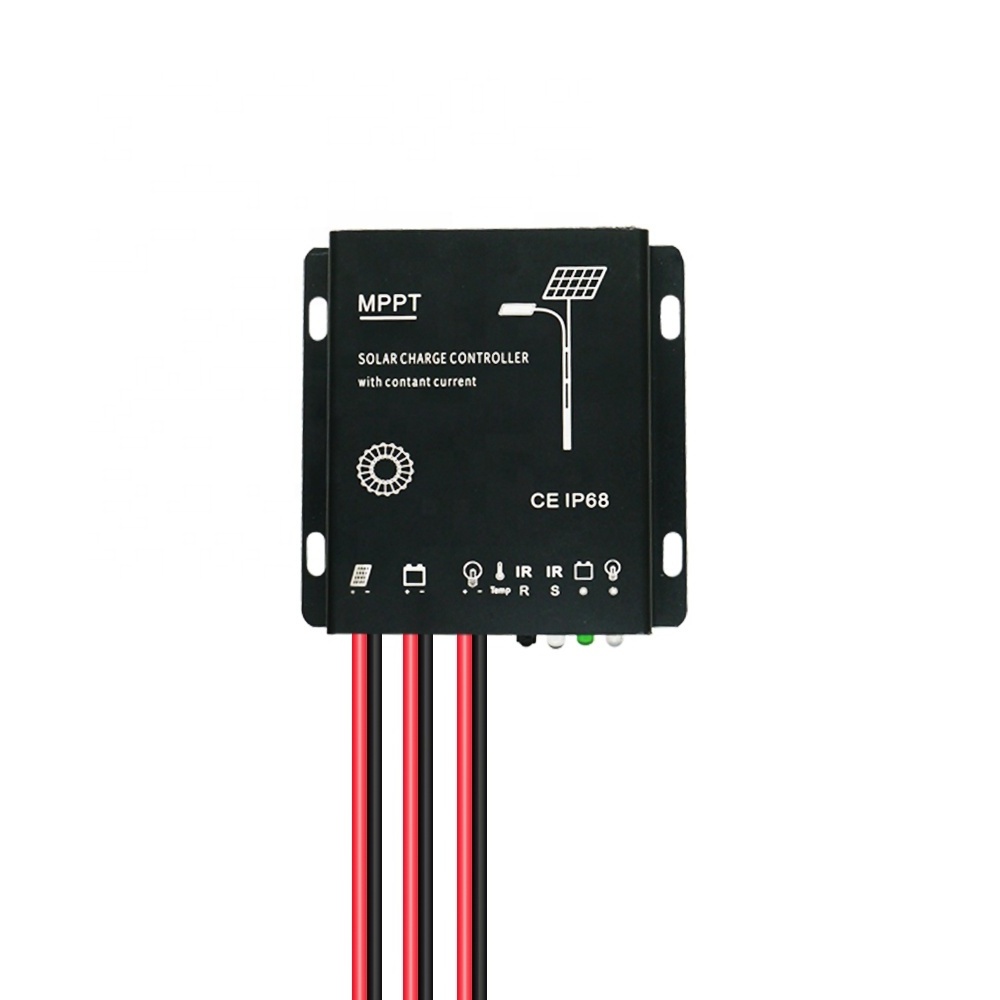

Waterproof MPPT Tracking Range 12V/24V Solar Controller 10A/20A MPPT Solar Charge Controller
The CPL series lithium battery MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially when dimmer function is needed. The advanced Maximum Power Point Tracking charging methods enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost.
Feature:
|
Modle
|
CPL
|
|
Battery Type
|
Sealed(Default) / Gel / Flooded ; LiFePO4/ Li-NiCoMn/User
|
|
Syestem Voltagge
|
LiFePO4:14.6V/ Li-NiCoMn:12.51V / User:9-34V
|
|
Max. output current
|
0.3-3.3A
|
|
Maximum output efficiency
|
>99%
|
|
Max. PV open circuit voltage
|
50V
|
|
Ouput Voltage Range
|
(Max battery+2V)～58V
|
|
Self-consumption
|
-3mv/℃/2V
|
|
Output current control accuracy
|
≤3%
|
|
Averrage Efficiency
|
≥94%
|
|
Self-consumption
|
≤10mA
|
|
Working environment temperature
|
-25℃～+65℃
|
|
Boost Charging Voltage
|
LiFePO4:14.4V / Li-NiCoMn:12.39V / User:9-34V
|
|
Float Charging Voltage
|
LiFePO4:14.4V / Li-NiCoMn:12.39V / User:9-34V
|
|
Low Voltage Reconnect Voltage
|
LiFePO4:12.0V / Li-NiCoMn:10.8V / User:9-34V
|
|
Low Voltage Disconnect Voltage
|
LiFePO4:10.6V / Li-NiCoMn:9.3V / User:9-34V
|
|
Enclosure
|
IP68
|
|
Overall dimension
|
99×84.5×23mm
|
