Quick Details
-
Power:
-
1.5kw-5.5kw
-
Min. Lifting Height:
-
Base on the Max.height
-
Table Size:
-
Customized
-
Overall Dimensions:
-
Customized
-
Weight:
-
900 kg
-
Product name:
-
Outdoor Elevator Guide Rail Elevator
-
Material:
-
High Strength Manganese Steel
-
Color:
-
Customers' Requirements
-
Voltage:
-
DC 12V/24V AC 220V/380V
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Fixed
-
Capacity:
-
customizzed
-
Warranty period:
-
12 months
-
After Warranty Service:
-
Online support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIANG
-
Power:
-
1.5kw-5.5kw
-
Min. Lifting Height:
-
Base on the Max.height
-
Table Size:
-
Customized
-
Overall Dimensions:
-
Customized
-
Weight:
-
900 kg
-
Product name:
-
Outdoor Elevator Guide Rail Elevator
-
Material:
-
High Strength Manganese Steel
-
Color:
-
Customers' Requirements
-
Voltage:
-
DC 12V/24V AC 220V/380V
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Fixed
-
Capacity:
-
customizzed
-
Warranty period:
-
12 months
-
After Warranty Service:
-
Online support

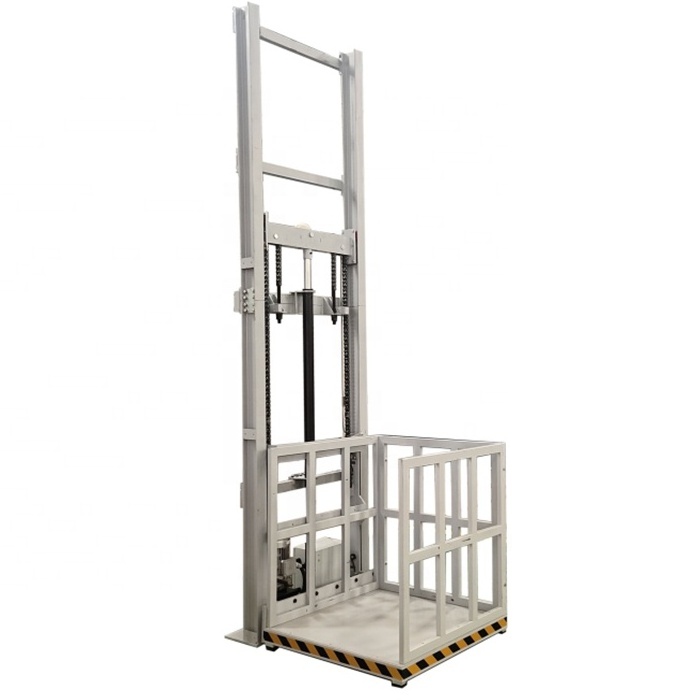

Outdoor Elevator Guide Rail Elevator
Hydraulic Elevator is a lifting device with good lifting stability, large bearing capacity and a wide range of application. Hydraulic guide lifting platform covers a small area, simple installation, easy to operate, widely used in life. We can customize different products according to the specific needs of customers, suitable for disabled wheelchair lift, household lift, cargo lift and so on.
Outdoor Elevator Guide Rail ElevatorOutdoor Elevator Guide Rail ElevatorOutdoor Elevator Guide Rail ElevatorOutdoor Elevator Guide Rail Elevator Outdoor Elevator Guide Rail Elevator
Guardrail specifications & Goods in and out direction:
Way of goods in and out
Guardrail specifications
Product assembly:
( Product assembly steps are simple and can be completed without professional and technical personnel. )
Assembly renderings:
Technical Parameters:
|
Model |
Platform size L * W (mm) |
Maximum load ( kg ) |
Lifting H eight H ( mm ) |
M inimum height X ( mm ) |
Barrier height B ( mm ) |
Lifting speed mm/s |
Power ( Kw ) |
Voltage ( V ) |
Frequency ( Hz ) |
|
SJD-1.1 |
1500*2000 |
1000 |
3000 |
100 |
1000 |
80 |
2.2 |
380 |
50 |
|
SJD-2.1 |
2000*2000 |
2000 |
4000 |
120 |
1000 |
80 |
3 |
380 |
50 |
|
SJD-3.1 |
2000*3000 |
3000 |
5000 |
120 |
1000 |
80 |
4 |
380 |
50 |
|
SJD-1.2 |
1500*2000 |
1000 |
6000 |
100 |
1000 |
80 |
2.2 |
380 |
50 |
|
custom |
|||||||||
Product application:
