Quick Details
-
Type:
-
XPS Boards
-
color:
-
blue,pink,yellow,green
-
function:
-
water-proof,Heat preservation
-
surface:
-
PVC,alu foil,steel sheet
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Youshi
-
Model Number:
-
YS-XSG
-
Type:
-
XPS Boards
-
color:
-
blue,pink,yellow,green
-
function:
-
water-proof,Heat preservation
-
surface:
-
PVC,alu foil,steel sheet

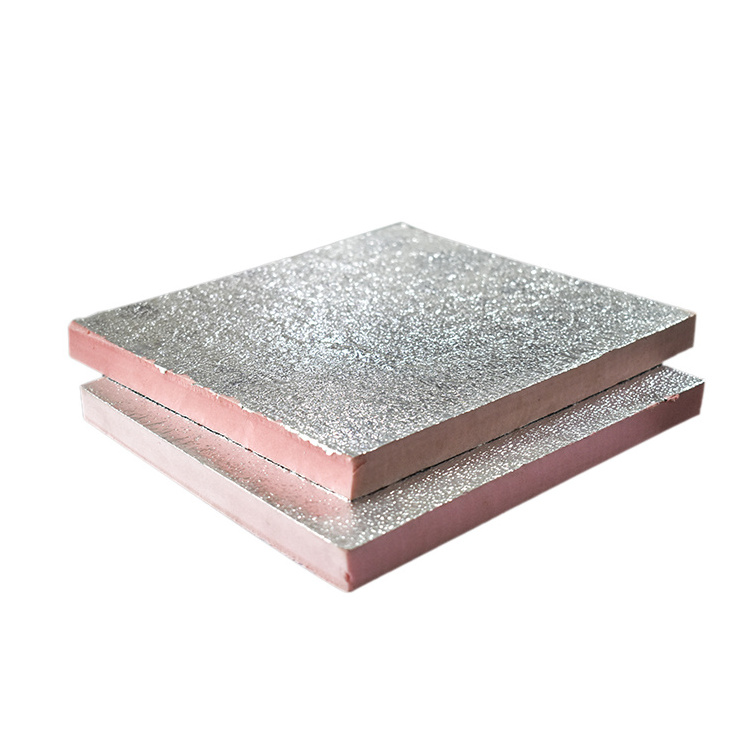

aluminum foam XPS panel Characteristics:
• Light, safe, decrease the load of the building.
• Easy to install, shorten the construction period.
• Protect environment, sandwich structure with antioxidant surfaces.
• High performance in heat insulating, can be served in both high and low temperature environment.
• Fireproof, meet the National standard, makes building safe.
• Soundproof, makes a quieter environment.
• Long service life up to 20 years, very low cost in wastage and maintenance.
• Nice appearance.
• Improve air quality
Hongji duct system including:
• Hongji duct panels
• Accessories for duct installation( including PVC flange connection,glue,silicone gun and so on)
• Training and installation service for duct installation
• Installation Manual
• Undertake projects of duct installation
Product Data Sheet:
|
Thickness of panel |
20mm -100mm |
|
Air leakage |
1.2% |
|
Density |
36-42 kg/m 3 |
|
Dimension stability |
≤ 2 % |
|
Thermal conductivity |
< 0.0 3 W /m.k |
|
Fire Retardant Level |
Anti-flamming level-B |
|
Water absorption |
≤ 1.5% |
|
Wind Press-resistant strength |
1500pa |
|
Recyclability Rate |
144Kpa |
H ongji duct panel satisfies the following standards:
• GB50243-2002
Acceptance standard for construction quality of HVAC works.
• GB50045-95
Criterion of fireproof design of civil tall buildings.
• GB8624-2006
Building materials and combustion performance grading
• GB/T8811-2008
Rigid foam dimensional stability test methods
• GB50404-2007
Polyurethane foam insulation and waterproof engineering specification
Environmental Protection:
Inspected by the National Fire Protection Building Materials Quality Supervision and Inspection Center,
H ongji duct passed the formaldehyde volatilization test, could be applied indoor directly.
• Approved by the National Quality Test Center and China Construction Material Association,
Hongji duct is a stable qualify, safe and environment protective product.
• Inspected by Shanghai quality monitor inspection spot, if s innocuous and a safe product.
• There is no Freon in Hongji duct, and won ’ t do harm to aerosphere.
Installation Accessories:
Various flanges,H bayonet, Hooked hanger bracket, Aluminum shaped disk, Covering angle, G.I.
Square, etc.
