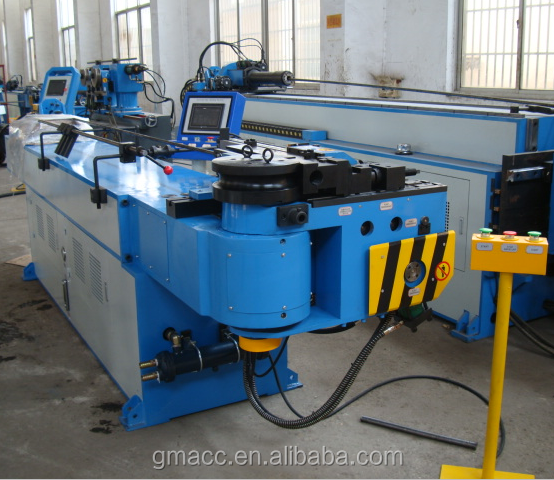

T echnical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-38NCB
Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Main Technical Parameter
|
Name |
Unit |
Parameter |
|
Max. Bending Capacity |
mm |
38*2 |
|
Bending Radius Range |
mm |
20-200 |
|
Max. Bending Angle |
° |
190° |
|
Though Effective Distance |
mm |
3 000 |
|
Bending Speed |
°/sec |
60 |
|
Bending Precision |
° |
±0.10 |
|
System Motor Power |
KW |
4 |
|
Oil Pump Delivery Volume |
L |
14 |
|
Max. Pressure |
Mpa |
16 |
|
L*W*H (Packaging Dimension) |
mm |
32 00*700*1300 |
|
Machine Weight |
T |
1.5 |
Configuration of Hydraulic and Electronic Control System
|
Name |
Manufacturer |
|
Hydraulic Motor |
Siemens or Suzhou Runmal i |
|
Hydraulic Valve |
Japan Yuken |
|
Over Flow Valve |
Japan Yuken |
|
Encoder |
Japan Nemicon |
|
Hydraulic Pump |
Wuxi Tuoli |
|
Sealing Element |
Shanghai Qifan |
|
Contactor |
S chneider |
|
Over-Thermal Relay |
S chneider |
|
Proximity Switch |
Omron |
|
Power Switch |
Taiwan Mingwei |
|
Tansformer |
Wuxi Xingyu |
|
Oil Tube |
Zhejiang Tongxin |
|
Touch screen |
Taiwan W einview |
|
PLC |
Japan Mitsubishi |
