Quick Details
-
Color:
-
full Color
-
Panel Size:
-
customizable, customizable
-
Place of Origin:
-
Hunan, China
-
Product name:
-

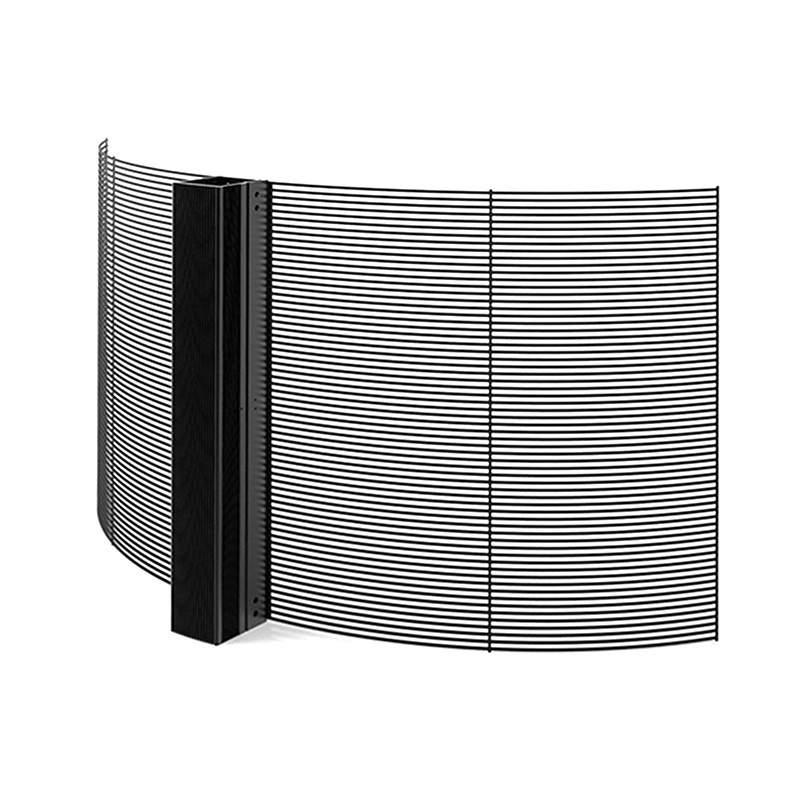

Led Video Display Panel
-
Brightness:
-
4000cd/sqm
-
Installation:
-
Fixed Installation
-
Cabinet size:
-
100*50cm
-
Life span:
-
100000 Hrs
-
Pixels:
-
P3.91 P5
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
Aresled
-
Color:
-
full Color
-
Panel Size:
-
customizable, customizable
-
Place of Origin:
-
Hunan, China
-
Product name:
-
Led Video Display Panel
-
Brightness:
-
4000cd/sqm
-
Installation:
-
Fixed Installation
-
Cabinet size:
-
100*50cm
-
Life span:
-
100000 Hrs
-
Pixels:
-
P3.91 P5
Product Description
|
Technical Specification
|
|
|
|
Item
|
Parameter
|
|
|
Model Name
|
B3
|
|
|
Pixel Pitch
|
3.9-7.8mm
|
|
|
Panel Size(W*H)
|
1000*1000 mm / 1000*500 mm
|
|
|
Panel Resolution
|
32768 dots/sqm
|
|
|
Panel Material
|
Aluminum
|
|
|
Panel Weight
|
11 kg/㎡
|
|
|
Panel Color
|
Black or Silver
|
|
|
Module Size
|
500*125 mm
|
|
|
Module Resolution
|
128*16 dots
|
|
|
LED Lamp Beads
|
SMD1921
|
|
|
Brightness
|
3500-4200 cd/㎡
|
|
|
Transparency
|
62%-70%
|
|
|
Viewing Angle
|
H: 140° / V: 140°
|
|
|
Driving IC
|
ICN2038
|
|
|
Driving Mode
|
1/8
|
|
|
Refresh Rate
|
3300 Hz
|
|
|
Gray Scale
|
16 bit
|
|
|
Input Voltage
|
AC 86-264V / 60Hz
|
|
|
Max. Power Consumption
|
600 W/㎡
|
|
|
Ave. Power Consumption
|
195 W/㎡
|
|
|
Working Life
|
≥100,000 h
|
|
|
Protection Grade
|
IP30
|
|
|
Working Temperature
|
-20 ℃～60 ℃
|
|
|
Storage Humidity
|
10%-85% RH
|
|
|
Maintenance
|
Front and Back
|
|
