Quick Details
-
Output Speed:
-
14~186.7rpm
-
Weight (KG):
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUMA
-
Ratio:
-
7.5,10,15,20,25,30,40,50,60,80,100
-
Color:
-
RAL5010(blue) or K9149(gray)
-
Label:
-
As required
-
Housing Material:
-
Aluminum&iron casting
-
Input Form:
-
IEC flange for mounting motor
-
Mounted Form:
-
flange-mounted mounting
-
Warranty:
-
1 year after vessel date
-
Output Form:
-
Solid or Hollow shaft,flange output
-
Customization:
-
Acceptable
-
Quality Control System:
-
ISO9001:2008
Quick Details
-
Gearing Arrangement:
-
Worm
-
Output Torque:
-
UP TO 2320
-
Input Speed:
-
1400rpm or other
-
Output Speed:
-
14~186.7rpm
-
Weight (KG):
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUMA
-
Ratio:
-
7.5,10,15,20,25,30,40,50,60,80,100
-
Color:
-
RAL5010(blue) or K9149(gray)
-
Label:
-
As required
-
Housing Material:
-
Aluminum&iron casting
-
Input Form:
-
IEC flange for mounting motor
-
Mounted Form:
-
flange-mounted mounting
-
Warranty:
-
1 year after vessel date
-
Output Form:
-
Solid or Hollow shaft,flange output
-
Customization:
-
Acceptable
-
Quality Control System:
-
ISO9001:2008
Why Choose Us
Product Details
|

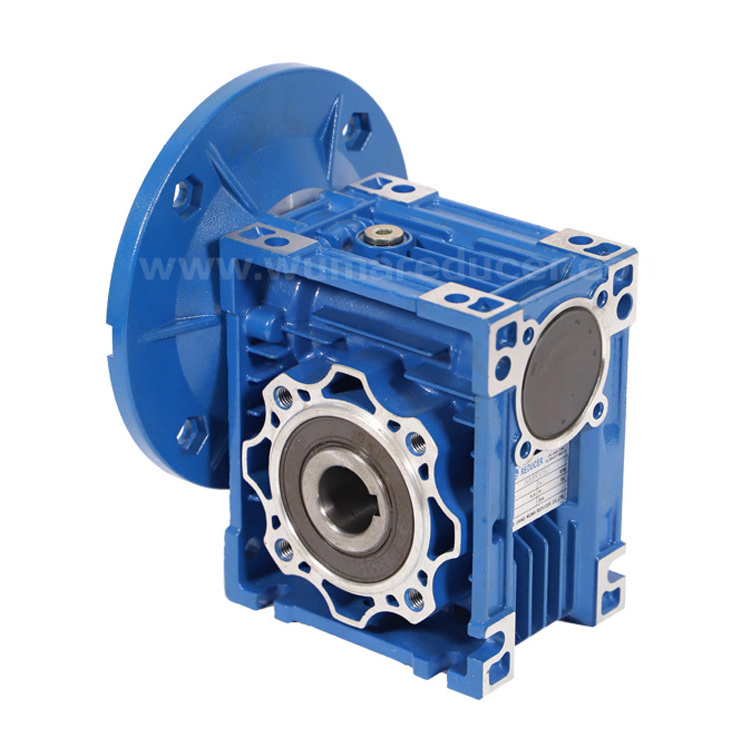

Type
|
Worm Gear Speed Reducer/ gearbox
|
|
Model
|
WMRV 25/30/40/50/63/75/90/110/130/150/185
|
|
Ratio
|
7.5,10,15,20,25,30,40,50,60,80,100.
|
|
Color
|
Blue(RAL5010)/Silver grey (K9149) Or On Customer Request
|
|
|
Housing: Aluminum alloy(size 25~90) / Cast iron(size 110~185)
|
|
|
Worm wheel: Aluminum Bronze or Tin Bronze
|
|
|
Worm shaft: 20CrMn Ti
|
|
|
Output Shaft: steel-45#
|
|
Packing
|
Carton, Honey Comb Carton, Wooden Case with wooden pallet
|
|
Warranty
|
1 Year
|
|
Input Power
|
0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,11Kw and so on.
|
|
Usages
|
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Wood working, Glass.
|
|
IEC Flange
|
IEC standard flange or on customer request
|
|
Lubricant
|
Synthetic oil or worm gear oil
|
